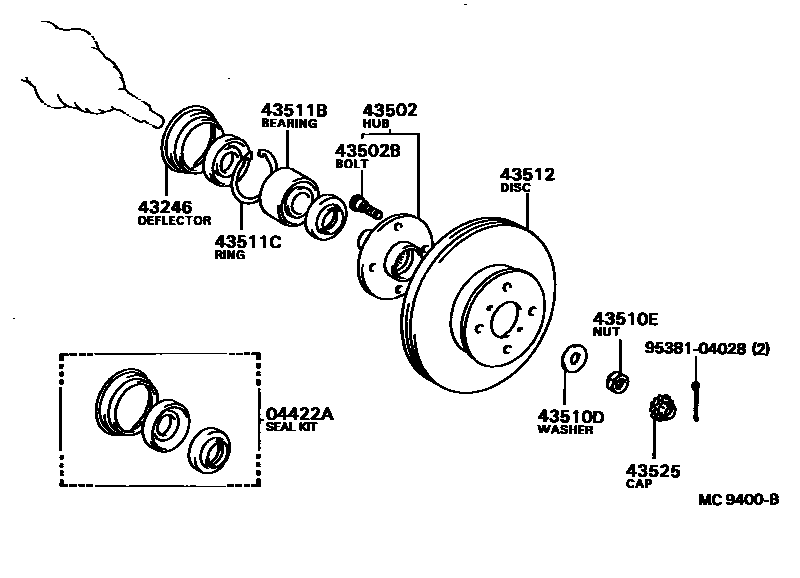

FRONT AXLE HUB

04422ASEAL KIT, FRONT AXLE OIL

main04422-20010iAE8#,CE80,EE80198305-198704

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-20010iAE8#,CE80,EE80198305-198704

43502HUB SUB-ASSY, FRONT AXLE

main43502-20030iAE8#,CE80,EE80198305-198704

sub43502-12100

sub43502-20110

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iAE8#,CE80,EE80198305-198704

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90201-20006iAE8#,CE80198305-198405

sub90201-20012

main90201-20012iAE8#,CE80,EE80198405-198704

43510ENUT (FOR STEERING KNUCKLE)

main90170-19001iAE8#,CE80,EE80198305-198704

43511BBEARING (FOR FRONT AXLE HUB)

main90369-38003iAE8#,CE80,EE80198305-198704

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-79002iAE8#,CE80,EE80198305-198704

main90521-79003iAE8#,CE80,EE80198305-198704

main90521-79004iAE8#,CE80,EE80198305-198704

main90521-79005iAE8#,CE80,EE80198305-198704

main90521-79006iAE8#,CE80,EE80198305-198704

43512DISC, FRONT

main43512-12150iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198704

main43512-20080iAE82..GT198410-198509

main43512-20170iAE82..GT198509-198704

sub43512-20080

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iAE8#,CE80,EE80198305-198704

9538104028

main95381-04028

11 parts on this diagram · 1 diagram in section
