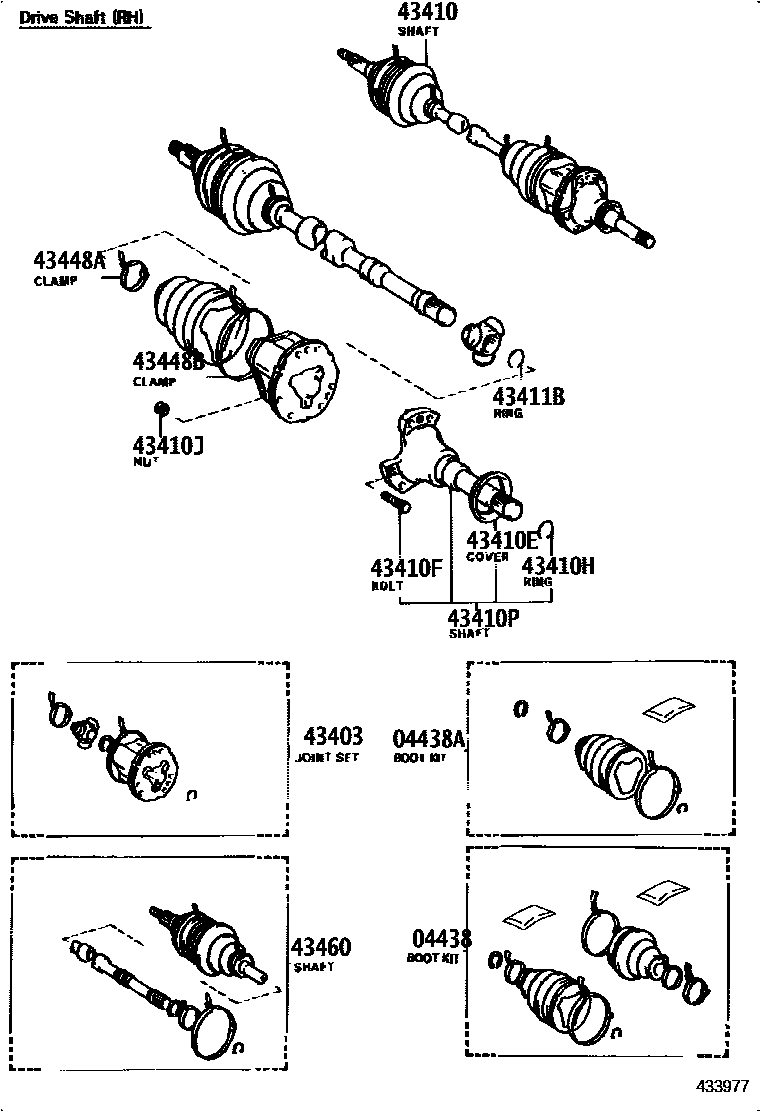

FRONT DRIVE SHAFT

0001 1 0006 1 0010 1

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-12020iAE8#198305-198310

LH

main04438-12021iAE8#198310-198410

LH

main04438-12030×2iCE80198510-198608

main04438-12031×2iCE80198608-198704

main04438-12220iAE8#198310-198410

RH

main04438-12230iAE80,81,EE80; AE82..SE,SR,SX,ZX198410-198603

RH

main04438-17010iAE80,81,EE80198410-198603

LH

main04438-17011×2iAE81; AE82..4FC..GT; AE82..SE,ZX; EE80198608-198703

LH

main04438-17012×2iAE81; AE82..4FC..GT; AE82..SE,ZX; EE80198703-198704

LH

main04438-17020iAE82..5F..GT198509-198608

LH

main04438-17021×2iAE82..5F..GT198608-198704

main04438-20100iCE80198305-198410

RH

main04438-32021iCE80198305-198410

LH

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-12010×2iAE8#,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198703

main04438-12011×2iAE8#,EE80..DX,SE,SPD,XL,ZX; AE82..4FC..GT198703-198704

main04438-17030×2iAE82..5F..GT198410-198704

main04438-32011×2iCE80198305-198704

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-19035iAE8#,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198704

main43403-39016iCE80198305-198704

main43403-39025iAE82..5F..GT198410-198704

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12020iAE8#198305-198310

main43410-12021iAE8#198310-198410

main43410-12040iAE82..5F..GT198410-198509

main43410-12050iAE8#..DX,SE,XL,ZX198603-198704

main43410-12070iCE80198410-198510

main43410-12080iEE80198603-198704

main43410-12090iAE82..5F..GT198509-198704

main43410-12100iCE80198510-198704

main43410-20020iCE80198305-198410

43410ECOVER, DUST (FOR FRONT DRIVE SHAFT)

main41336-12010×2iAE8#,EE80198305-198704

main41336-32010iCE80198305-198704

RH

main41336-32020iCE80198305-198704

LH

43410FBOLT, SERRATION (FOR FRONT DRIVE SHAFT)

main90114-08006×12iAE8#,CE80,EE80198305-198704

43410HRING, HOLE SNAP (FOR FRONT DRIVE SHAFT)

main90521-26002×2iAE8#,EE80198305-198704

main90521-27005×2iCE80198305-198704

43410JNUT (FOR FRONT DRIVE SHAFT)

main90179-08053×12iAE8#,CE80,EE80198305-198704

43410PSHAFT SUB-ASSY, FRONT DRIVE, RH

main41304-12010iAE8#,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198704

main41304-17010iAE82..5F..GT198410-198704

main41304-20010iCE80198305-198704

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22005×2iAE8#,EE80..DX,SE,SPD,XL,ZX; AE82..4FC..GT198703-198704

main90520-23035×2iAE8#,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198703

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14010×2iCE80;AE82..5F..GT198305-198704

main90949-01078×2iAE8#,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198704

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14020×2iCE80;AE82..5F..GT198305-198704

main90949-01079×2iAE8#,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198704

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19045iAE8#198305-198310

main43460-19046iAE8#198310-198410

main43460-19097iAE82..4FC..GT; EE80198703-198704

main43460-19105iCE80;AE82..5F..GT198410-198509

main43460-19115iAE82..4FC..GT198601-198703

main43460-19125iAE82..5F..GT198509-198510

main43460-19135iAE82..5F..GT; CE80198510-198704

main43460-19195iAE8#..DX,SE,XL,ZX198603-198703

main43460-19196iAE8#..DX,SE,XL,ZX198703-198704

main43460-29016iCE80198305-198410

13 parts on this diagram · 3 diagrams in section
