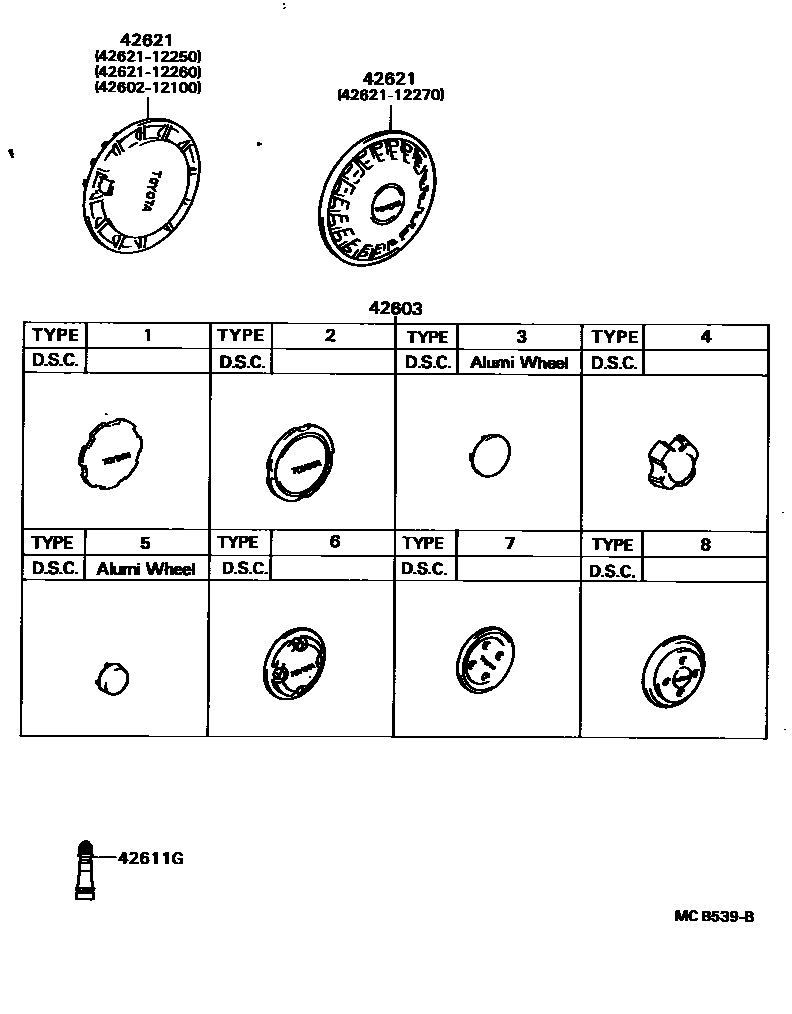

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-10140×4iAE82..GT198410-198704

TYPE 5,14 INCHES ALUMI WHEEL

main42603-12140×4iAE81,CE80..SE,ZX; AE82..SR,SX,ZX198401-198505

TYPE 1

main42603-12150×4iAE81,CE80..SE,ZX198305-198401

TYPE 2

main42603-12170×4iAE81,82..GT,SE,SR,SX,ZX; CE80..SX198305-198505

TYPE 3,13 INCHES ALUMI WHEEL; TYPE 3,ALUMI WHEEL

main42603-12190×4iAE8#,CE80..DX,SPD,SX,XL198305-198408

TYPE 4

main42603-12230×4iAE81,CE80,EE80..DX,SPD,XL198505-198704

main42603-12310×4iAE81,CE80,EE80..DX198510-198608

TYPE7,RIVIERE SALOON

main42603-12320×4iAE8#,CE80..SE,ZX198505-198704

TYPE 8

main42603-12350×4iAE8#..4FC,5F198505-198704

TYPE 3,13 INCHES ALUMI WHEEL

main42603-12460×4iCE80,EE80..DX198608-198704

TYPE 6,NEW RIVIERE SALOON

main42638-16200×4iAE8#,CE80..DX,SPD,SX,XL198408-198505

TYPE 4

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iAE8#,CE80,EE80198305-198704

42621CAP, WHEEL

main42602-12100×4iAE8#..GT,ZX198508-198704

main42621-12250×4iAE81,82,CE80..SE,SR,SX,ZX198305-198505

main42621-12260×4iAE82..GT198410-198505

main42621-12270×4iAE81..4D..XL198608-198704

SUPER XL SALOON

main42621-12340×4iAE81..SE198701-198704

SE SALOON LIMITED

4260212100CAP SUB-ASSY, WHEEL

main42602-12100

4262112250CAP, WHEEL

main42621-12250

4262112260CAP, WHEEL

main42621-12260

4262112270CAP, WHEEL

main42621-12270

7 parts on this diagram · 2 diagrams in section
