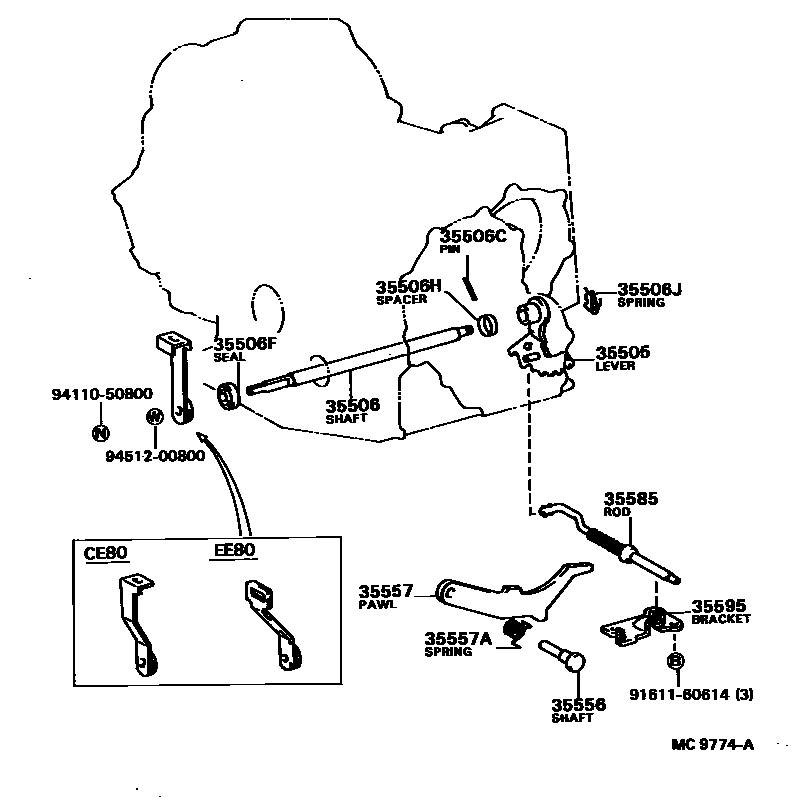

Toyota SPRINTER — THROTTLE LINK & VALVE LEVER (ATM)
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
35595BRACKET, PARKING LOCK PAWL
9161160614
9411050800
9451200800
14 parts on this diagram · 4 diagrams in section
THROTTLE LINK & VALVE LEVER (ATM) for Toyota SPRINTER
This section contains 38 genuine Toyota parts for the THROTTLE LINK & VALVE LEVER (ATM) system of the Toyota SPRINTER. Key components include: LEVER SUB-ASSY, MANUAL VALVE, SHAFT SUB-ASSY, MANUAL VALVE LEVER, PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT), SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT), SPACER (FOR MANUAL VALVE LEVER SHAFT).
