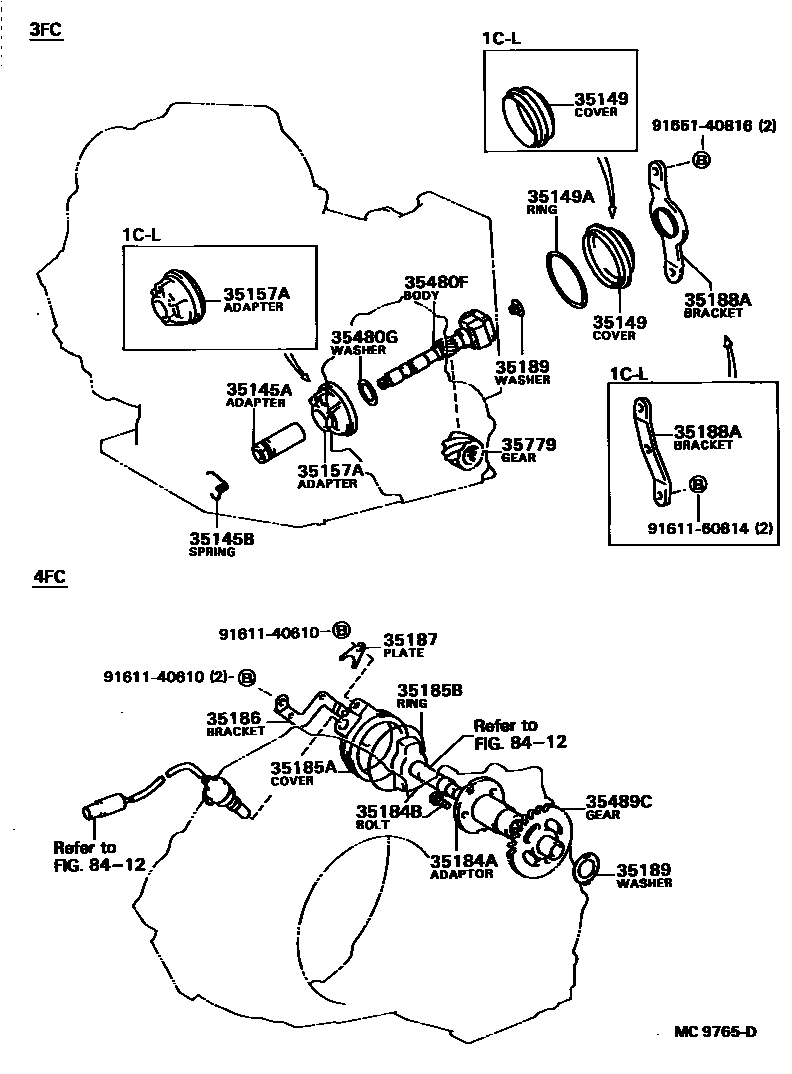

REAR OIL PUMP & GOVERNOR (ATM)

0001 1 0002 1

35145AADAPTER, GOVERNOR PRESSURE

main35145-32010iAE80,81,CE80..3FC198305-198411

main35145-32011iAE80,81,EE80..3FC198411-198704

35145BSPRING, TORSION(FOR GOVERNOR PRESSURE ADAPTER)

main90508-18034iAE80,81,CE80,EE80..3FC198305-198704

35149COVER, GOVERNOR

main35149-12010iAE80,81,EE80..3FC198305-198704

main35149-20010iAE81,CE80..4FC198401-198704

main35149-32010iCE80..3FC198305-198410

35149ARING, O (FOR GOVERNOR COVER)

main90301-67001iCE80..3FC198305-198410

main90301-68001iAE81,CE80..4FC198401-198704

main90301-73001iAE80,81,EE80..3FC198305-198704

35157AADAPTER, GOVERNOR BODY

main35157-12010iAE80,81,EE80..3FC198305-198704

main35157-20030iAE81,CE80..4FC198401-198411

main35157-20031iAE81,CE80..4FC198411-198704

main35157-32010iCE80..3FC198305-198407

main35157-32011iCE80..3FC198407-198410

35184AADAPTER, SENSOR ROTOR

main35184-12010iAE82..4FC198305-198704

35184BBOLT(FOR SENSOR ROTOR ADAPTER)

main90105-06053×3iAE82..4FC198305-198704

35185ACOVER, SPEED SENSOR

main35185-12010iAE82..4FC198305-198704

35185BRING, O (FOR SPEED SENSOR COVER)

main90301-68001iAE82..4FC198305-198704

35186BRACKET, SPEED SENSOR COVER

main35186-12010iAE82..4FC198305-198704

35187PLATE, SPEED SENSOR LOCK

main35187-12010iAE82..4FC198305-198704

35188ABRACKET, GOVERNOR COVER

main35188-12010iAE80,81,EE80..3FC198305-198704

main35188-20010×2iAE81,CE80..4FC198401-198704

main35188-32011iCE80..3FC198305-198410

35189WASHER, GOVERNOR THRUST, NO.1

main35189-12010iAE82..4FC198305-198704

main35189-32010iAE8#,CE80,EE80..ATM198305-198704

35480FBODY ASSY, GOVERNOR

main35480-12020iCE80..3FC198305-198307

main35480-20020iAE81..4FC198401-198412

main35480-20021iAE81..4FC198412-198704

main35480-20040iCE80..4FC198401-198412

main35480-20041iCE80..4FC198412-198704

main35480-32010iAE80,81..3FC198305-198412

main35480-32012iAE80,81,EE80..3FC198412-198704

main35480-32020iCE80..3FC198307-198410

35480GWASHER, PLATE (FOR GOVERNOR BODY)

main90201-25003iAE80,81..3FC198305-198407

main90201-26004iCE80..3FC198305-198407

T=1.6

35489CGEAR, GOVERNOR DRIVEN

main35489-12010iAE81,82,CE80..4FC198305-198704

35779GEAR, GOVERNOR DRIVE

main35779-32010iAE80,81,CE80,EE80..3FC198305-198704

8412ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-12

9161140610

main91611-40610

9161160814

main91611-60814

9165140816

main91651-40816

21 parts on this diagram · 2 diagrams in section
