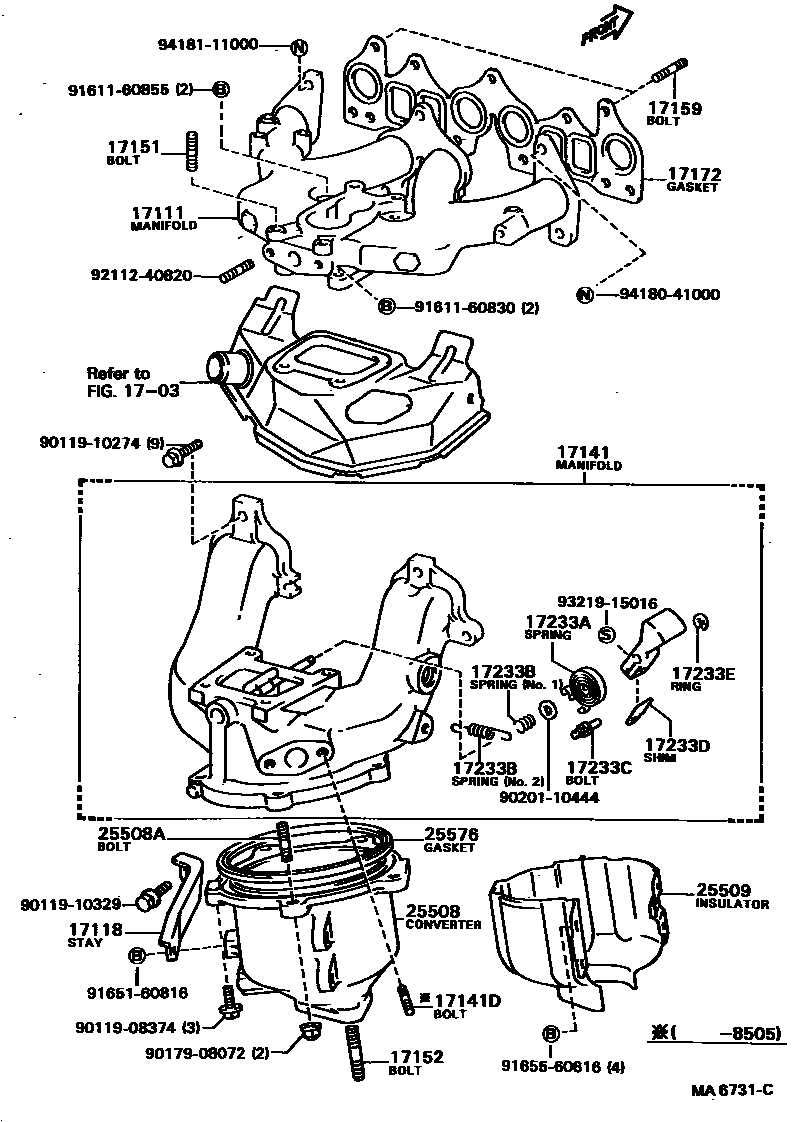

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1

1703

17111MANIFOLD, INTAKE

main17101-11100i2ELU..EE80198505-198704

main17101-16020i4AGELU..AE82198410-198704

main17111-15030i2ALU,3ALU..AE80,81198305-198704

main17111-16020i4AELU..AE82198305-198704

main17111-64040i1CL..CE80198305-198505

sub17111-64090

main17111-64090i1CL..CE80198505-198704

17118STAY, MANIFOLD

main17118-15050i2ALU,3ALU,4AELU..AE8#198305-198704

main17125-16030i4AGELU..AE82198410-198704

sub17125-16031

17141MANIFOLD, EXHAUST

main17140-15090i2ALU,3ALU..AE80,81198305-198505

main17140-15110i3ALU..AE81198505-198704

main17141-11010i2ELU..EE80198505-198704

main17141-16020i4AELU..AE82198305-198404

main17141-16080i4AELU..AE82198404-198704

main17141-16090i4AGELU..AE82198410-198704

main17141-64020i1CL..CE80198305-198312

sub17141-64021

sub90119-10321

sub90179-10028

main17141-64021i1CL..CE80198307-198505

sub17141-64070

main17141-64070i1CL..CE80198505-198704

17141DBOLT, STUD(FOR OXYGEN SENSOR)

main90116-08128i2ALU,3ALU,4AELU..AE8#198305-198704

main90116-08168i4AGELU..AE82198410-198704

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main90116-08204i2ELU..EE80198505-198704

main90116-08214i2ALU,3ALU..AE80,81198411-198501

sub90116-08216

main90116-08216i2ALU,3ALU..AE80,81198501-198704

main92112-40832i2ALU,3ALU..AE80,81198305-198411

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10017i2ELU..EE80198505-198704

main90116-10058i1CL..CE80198305-198704

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08218i4AGELU..AE82198502-198704

INTAKE MANIFOLD

main90116-10037i4AGELU..AE82198410-198704

EXHAUST MANIFOLD

main90116-10090i4AELU..AE82198305-198704

EXHAUST MANIFOLD

main90116-10095i1CL..CE80198307-198704

EXHAUST MANIFOLD SIDE

main92112-61032i2ALU,3ALU..AE80,81198305-198704

INTAKE MANIFOLD

main92122-60820i1CL..CE80198305-198704

INTAKE MANIFOLD SIDE

main92122-60850i4AGELU..AE82198410-198502

INTAKE MANIFOLD

main92122-61028i2ELU..EE80198505-198704

EXHAUST MANIFOLD

main92122-61032i1CL..CE80198305-198307

EXHAUST MANIFOLD SIDE

main92132-60825i2ELU..EE80198505-198704

INTAKE MANIFOLD

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-15010i2ALU,3ALU..AE80,81198305-198704

sub17172-14011

main17172-16010i4AELU..AE82198305-198704

17233ASPRING, SPIRAL, NO.1(FOR COUNTER WEIGHT)

main90510-06001i2ALU,3ALU..AE80,81198305-198704

17233BSPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT)

main90501-08022i2ALU,3ALU..AE80,81198305-198704

NO.1

main90507-08006i2ALU,3ALU..AE80,81198503-198704

NO.2

17233CBOLT(FOR COUNTER WEIGHT)

main90109-10045i2ALU,3ALU..AE80,81198305-198704

17233DSHIM(FOR COUNTER WEIGHT)

main90910-10005i2ALU,3ALU..AE80,81198305-198704

17233ERING, E(FOR COUNTER WEIGHT)

main96160-00800i2ALU,3ALU..AE80,81198305-198704

25508CONVERTER SUB-ASSY, MANIFOLD

main25508-11020i2ELU..EE80198505-198610

sub25508-11021

main25508-11021i2ELU..EE80198610-198704

main25508-15010i2ALU,3ALU,4AELU..AE8#198305-198505

main25508-16020i3ALU,4AELU..AE8#198505-198704

25508ABOLT, STUD(FOR MANIFOLD CONVERTER)

main90116-08171i2ALU,3ALU,4AELU..AE8#198305-198704

main90116-10056i2ELU..EE80198505-198704

sub90116-10087

25509INSULATOR SUB-ASSY, MANIFOLD CONVERTOR

main25509-15010i2ALU,3ALU,4AELU..AE8#198305-198704

main25586-11020i2ELU..EE80198505-198511

NO.1

sub25586-11021

main25586-11021i2ELU..EE80198511-198704

NO.1

main25587-11020i2ELU..EE80198505-198511

NO.2

sub25587-11021

main25587-11021i2ELU..EE80198511-198704

NO.2

25576GASKET, MANIFOLD CONVERTER

main25576-15010i2ELU..EE80198305-198704

sub25576-15020

9011908374

main90119-08374

9011910274

main90119-10274

9011910329

main90119-10329

9017908072

main90179-08072

9020110444

main90201-10444

9161160830

main91611-60830

9161160855

main91611-60855

9165160816

main91651-60816

9165560616

main91655-60616

9211240820

main92112-40820

9321915016

main93219-15016

9418041000

main94180-41000

9418111000

main94181-11000

31 parts on this diagram · 5 diagrams in section
