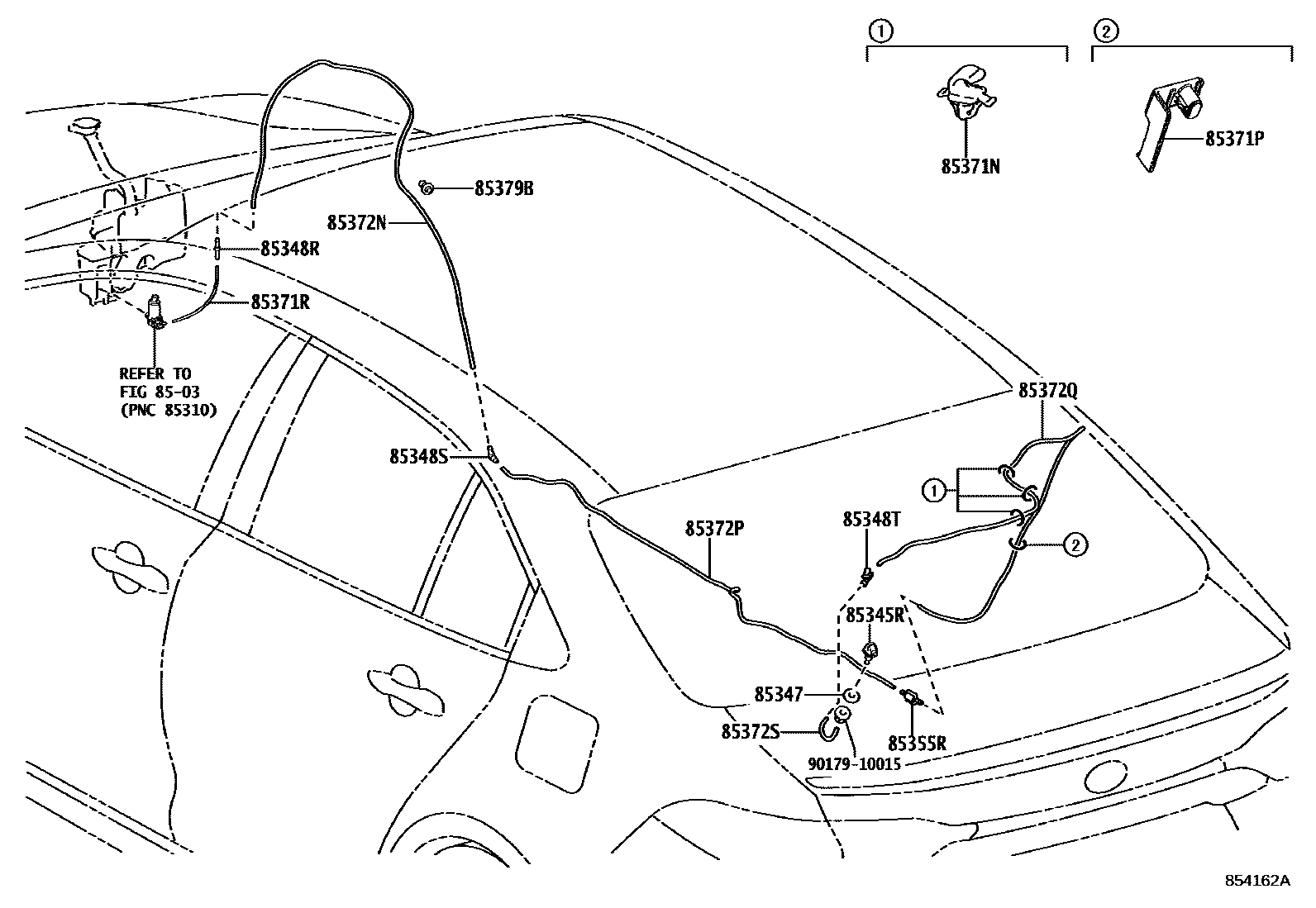

REAR WASHER

0001 1 0002 1

8503

85345RNOZZLE, REAR WASHER

main85391-12110iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909-202504

85347PACKING, REAR WASHER

main85347-12010

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

main85349-89122iMZEA17..SED202210-202504

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

main85355-20200iMZEA17..WG202210-202504

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909-202504

85355RVALVE, REAR WASHER HOSE

85371NCLAMP, REAR WASHER HOSE

main85371-12040iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

main85371-12040iMZEA17..WG202210-202504

85371PCLAMP, REAR WASHER HOSE, NO.2

main85371-12050iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

main85371-12050iMZEA17..WG202210-202504

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909-202504

main90099-33080iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909-202504

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909-202504

main90446-07001iMZEA17..WG202210-202504

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-62199iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909-202504

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909-202504

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

85379BGROMMET, WASHER, A

main85379-12850iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

main85379-12850iMZEA17..WG202210-202504

9017910015

main90179-10015

16 parts on this diagram · 2 diagrams in section
