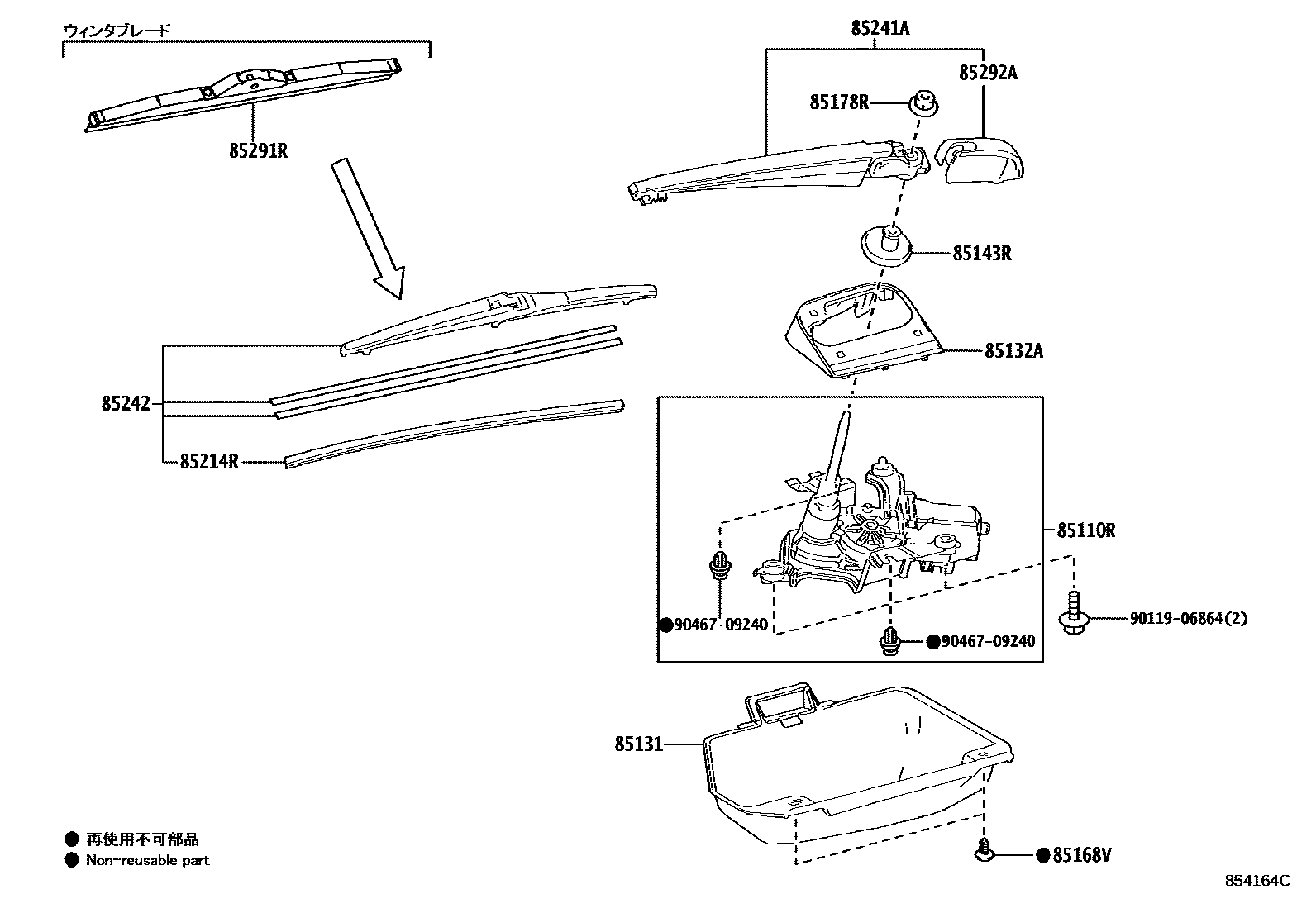

REAR WIPER

0001 1 0002 1

85110RMOTOR ASSY, REAR WIPER

main85130-12A60iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909-202504

85131COVER, REAR WIPER MOTOR

main85131-12820

85132ACOVER, REAR WIPER SHAFT

85143RGROMMET, REAR WIPER MOTOR

main85143-28070iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

main85143-28070iMZEA17..WG202210-202504

85168VCLIP, WIPER LINK COVER

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

main90179-06158iMZEA17..WG202210-202504

85214RRUBBER, REAR WIPER

main85214-42040iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

main85214-42040iMZEA17..WG202210-202504

85241AARM, REAR WIPER

main85241-42060iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909-202504

85242BLADE, RR WIPER

main85242-78010iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909-202504

85291RBLADE,REAR WIPER, WINTER

main85291-13060iMZEA17..WG202404-202504

main85291-13060iZWE215,219..WG202404

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

main85292-42010iMZEA17..WG202210-202504

9011906864

main90119-06864

9046709240

main90467-09240

13 parts on this diagram · 2 diagrams in section
