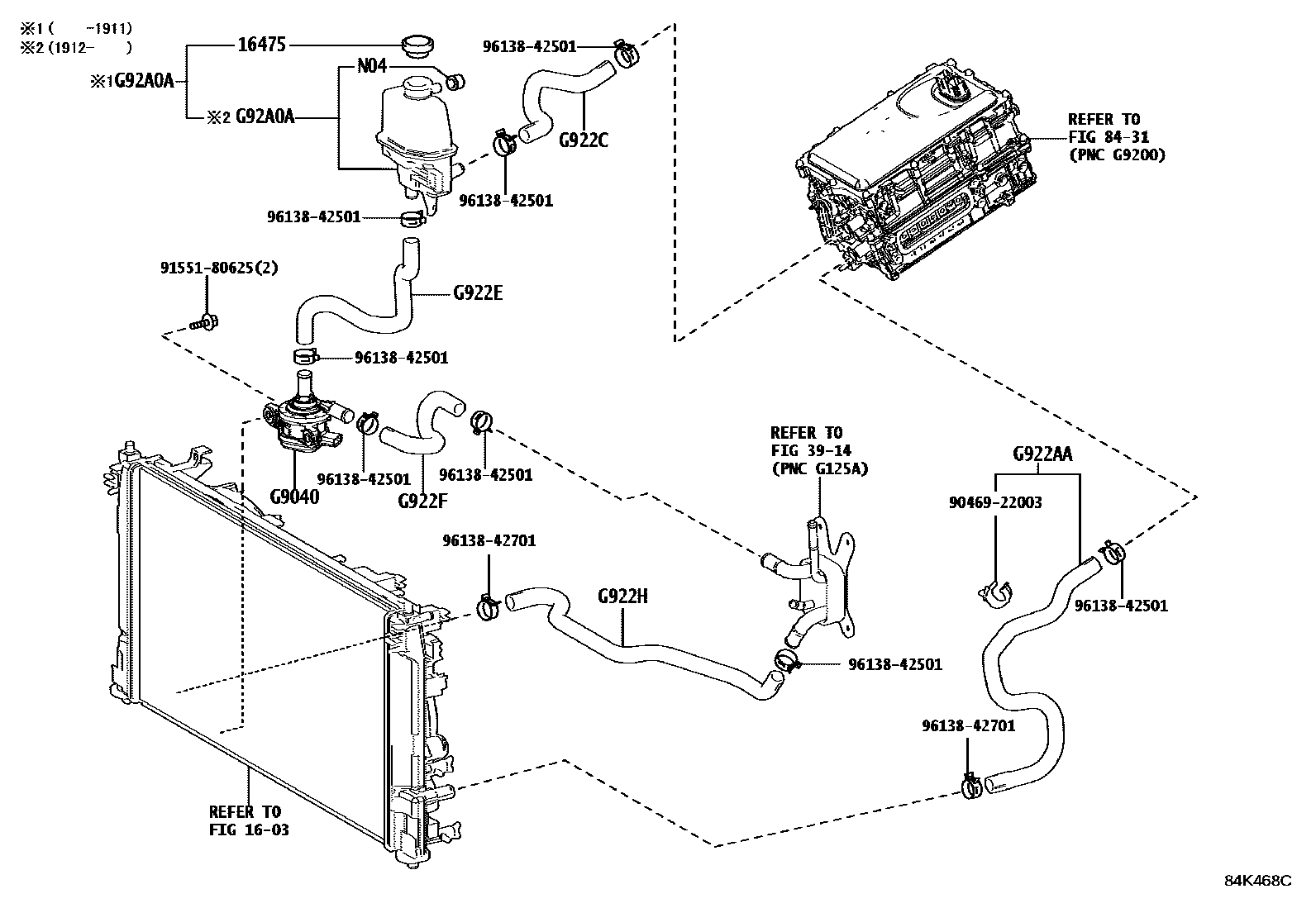

INVERTER COOLING

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16475CAP, RESERVE TANK

main16475-28140i2ZRFXE..ZWE215,219202210

3914OIL COOLER & TUBE (HEV OR BEV OR FCEV)

→ Go to FIG 39-14

8431HEV INVERTER

→ Go to FIG 84-31

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904047020iZWE215,219202210

mainG904047040iZWE211,214201908

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A16020iZWE215,219202210

mainG922A47010iZWE211,214201908

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C16010iZWE215,219202210

mainG922C47010iZWE211,214201908

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E16030iZWE215,219202210

mainG922E47010iZWE211,214201908

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F47010iZWE211,214201908

G922HHOSE, HYBRID RADIATOR INLET

mainG922H16010iZWE215,219202210

mainG922H47010iZWE211,214201908

G92A0ATANK ASSY, INVERTER RESERVE

mainG910G12010iZWE211,214201912

mainG910G16010iZWE215,219202210

mainG91H047011iZWE211,214201908-201911

9046922003

main90469-22003

9155180625

main91551-80625

9613842501

main96138-42501

9613842701

main96138-42701

15 parts on this diagram · 2 diagrams in section
