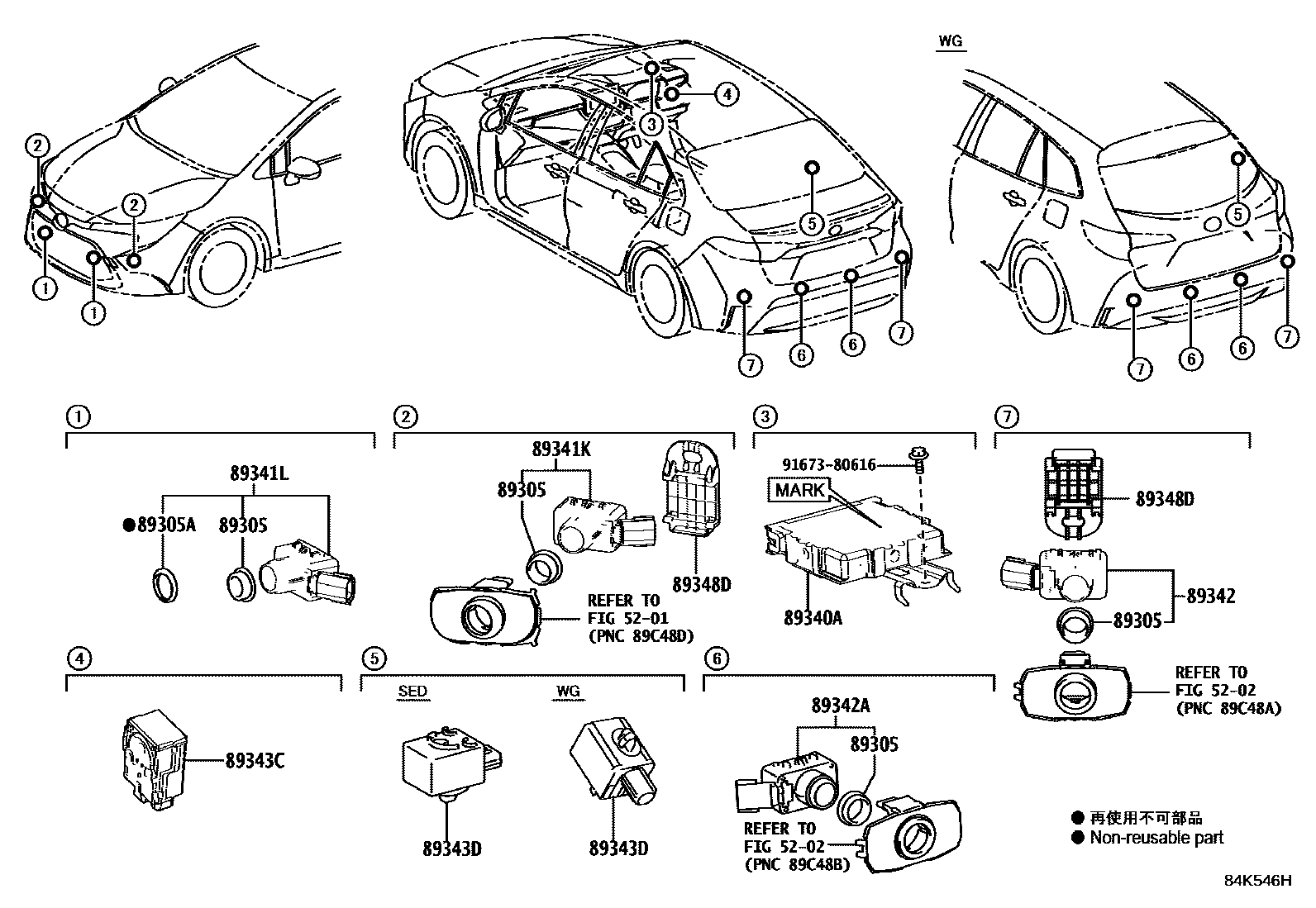

CLEARANCE & BACK SONAR

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89305CUSHION SET, ULTRASONIC SENSOR

main89305-47010iMZEA12,ZRE212,ZWE211,214..G,HBDS,HBDWB,S,WB; NRE210; ZRE212,ZWE211,214..GX,HBDGX201908

main89305-52010iZWE215,219..HBDX202404

89305ACUSHION SET, ULTRASONIC SENSOR, NO.2

main89305-12030iMZEA12,ZRE212,ZWE211,214..G,HBDS,HBDWB,S,WB; NRE210; ZRE212,ZWE211,214..GX,HBDGX201908

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-12321iMZEA12; ZRE212,ZWE21#..GX,HBDGX; ZRE212,ZWE21#..HBDS,HBDWB,S,WB202006-202101

main89340-12322iMZEA12; ZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,HBDWB,S,WB202101

main89340-12590supersedes 89340-12870iMZEA17..SED..(G,WB)202210-202505

main89340-12600iZWE215,219..SED..(HBDG,HBDWB); ZWE215,219..SED..ACT; ZWE215,219..SED..HBDX202404

main89340-12780supersedes 89340-12890iMZEA17..WG..(G,WB)202210-202505

main89340-12790iZWE215,219..WG..(HBDG,HBDWB); ZWE215,219..WG..ACT; ZWE215,219..WG..HBDX202404

main89340-12320iZRE212,ZWE21#..GX,HBDGX; ZRE212,ZWE21#..HBDS,HBDWB,S,WB201908-202006

main89340-12340iNRE210201908

main89340-12410iZRE212,ZWE21#..GX,HBDGX; ZRE212,ZWE21#..HBDS,HBDWB,S,WB201908-202101

main89340-12411iZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,HBDWB,S,WB202101

main89340-12880supersedes 89340-12870iMZEA17..SED..X202404-202505

main89340-12A00supersedes 89340-12890iMZEA17..WG..X202404-202505

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-33220-29×2iNRE210; ZRE212,ZWE211,214..HBDWB,WB201908

main89341-33220-A0×2iZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,S201908

main89341-33220-A1×2iMZEA12,ZRE212,ZWE211,214..G,HBDS,HBDWB,S,WB; NRE210; ZRE212,ZWE211,214..GX,HBDGX202107

main89341-33220-A5×2iMZEA12,ZRE212,ZWE211,214..G,HBDS,HBDWB,S,WB; NRE210; ZRE212,ZWE211,214..GX,HBDGX201908-202107

main89341-33220-B0×2iZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,S201908

main89341-33220-C7×2iMZEA12,ZRE212,ZWE211,214..G,HBDS,HBDWB,S,WB; NRE210; ZRE212,ZWE211,214..GX,HBDGX201908

main89341-33220-D7×2iNRE210; ZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,HBDWB,S,WB202107

main89341-33220-D8×2iZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,S201908-202107

main89341-33220-J3×2iZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,S201908

main89341-33220-L9×2iZWE211,214..WG..HBDWB202111

ARMY ROCK ME.,2YK ,4V0

main89341-33220-P5×2iZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,S201908

main89341-33220-R6×2iMZEA12202006

BLUE ME.,8X7

main89341-33220-S4×2iZWE211,214..SED..HBDWB202111

SLATE GRAY ME.,1K9

main89341-33220-X7×2iMZEA12202006

RED M.M.,3R3

main89341-K0060-21×2iMZEA17,ZWE215,219..HBDWB,WB202210-202505

SPARKLING BLACK PEARL CS.,220

main89341-K0060-A0×2iZWE215,219..HBDX202404

SUPER WHITE 2,040

main89341-K0060-A4×2iZWE215,219..HBDX202404

PLATINUM WHITE PEARL MC.,089

main89341-K0060-B0×2iMZEA17..G202210-202505

SILVER ME.,1F7

main89341-K0060-C5×2iMZEA17..G,WB202210-202505

ATTITUDE BLACK MC.,218

main89341-K0060-D1×2iZWE215,219..ACT,HBDG,HBDWB202210

RED MC.,2YD ,3T3

main89341-K0060-R4×2iMZEA17..G202210-202505

BLUE ME.,8X7

main89341-K0060-S0×2iZWE215,219..HBDWB202210

MASSIVE GRAY,1L6

main89341-K0060-S5×2iZWE215,219..SED..ACT; ZWE215,219..WG..ACT202404

CEMENT GRAY ME.,1H5; CEMENT GRAY ME.,2YY

main89341-33220-G5×2iMZEA12202104-202106

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-12110-C0×2iZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,S201908

main89341-12110-C1×2iMZEA12,ZRE212,ZWE211,214..G,HBDWB,WB; NRE210201908

main89341-K0060-21×2iMZEA17,ZWE215,219..HBDWB,WB202210-202505

main89341-K0060-A0×2iMZEA17..X202404-202505

main89341-K0060-A4×2iMZEA17..G,WB202210-202505

main89341-K0060-B0×2iZWE215,219..HBDX202404

main89341-K0060-C1×2iMZEA17..G,WB202210-202505

main89341-K0060-C5×2iMZEA17..X202404-202505

main89341-K0060-D1×2iMZEA17..G,WB202210-202505

main89341-K0060-R4×2iMZEA17..G202210-202505

main89341-K0060-S0×2iMZEA17..WB202210-202505

main89341-K0060-S5×2iZWE215,219..SED..ACT; ZWE215,219..WG..ACT202404

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-33220-29×2iNRE210; ZRE212,ZWE211,214..HBDWB,WB201908

main89341-33220-A0×2iZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,S201908

main89341-33220-A1×2iMZEA12,ZRE212,ZWE211,214..G,HBDS,HBDWB,S,WB; NRE210; ZRE212,ZWE211,214..GX,HBDGX202107

main89341-33220-A5×2iMZEA12,ZRE212,ZWE211,214..G,HBDS,HBDWB,S,WB; NRE210; ZRE212,ZWE211,214..GX,HBDGX201908-202107

main89341-33220-B0×2iZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,S201908

main89341-33220-C7×2iMZEA12,ZRE212,ZWE211,214..G,HBDS,HBDWB,S,WB; NRE210; ZRE212,ZWE211,214..GX,HBDGX201908

main89341-33220-D7×2iNRE210; ZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,HBDWB,S,WB202107

main89341-33220-D8×2iZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,S201908-202107

main89341-33220-J3×2iZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,S201908

main89341-33220-L9×2iZWE211,214..WG..HBDWB202111

ARMY ROCK ME.,2YK ,4V0

main89341-33220-P5×2iZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,S201908

main89341-33220-R6×2iMZEA12202006

BLUE ME.,8X7

main89341-33220-S4×2iZWE211,214..SED..HBDWB202111

SLATE GRAY ME.,1K9

main89341-33220-X7×2iMZEA12202006

RED M.M.,3R3

main89341-K0060-21×2iMZEA17,ZWE215,219..HBDWB,WB202210-202505

SPARKLING BLACK PEARL CS.,220

main89341-K0060-A0×2iMZEA17..X202404-202505

SUPER WHITE 2,040

main89341-K0060-A4×2iMZEA17..G,WB202210-202505

PLATINUM WHITE PEARL MC.,089 ,2PS

main89341-K0060-B0×2iZWE215,219..ACT,HBDG202210

SILVER ME.,1F7

main89341-K0060-C5×2iMZEA17..G,WB202210-202505

ATTITUDE BLACK MC.,218

main89341-K0060-D1×2iZWE215,219..ACT,HBDG,HBDWB202210

RED MC.,2YD ,3T3

main89341-K0060-R4×2iMZEA17..G202210-202505

BLUE ME.,8X7

main89341-K0060-S0×2iMZEA17..WB202210-202505

MASSIVE GRAY,1L6

main89341-K0060-S5×2iZWE215,219..SED..ACT; ZWE215,219..WG..ACT202404

CEMENT GRAY ME.,1H5; CEMENT GRAY ME.,2YY

main89341-33220-G5×2iMZEA12202104-202106

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-33220-29×2iNRE210; ZRE212,ZWE211,214..HBDWB,WB201908

main89341-33220-A0×2iZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,S201908

main89341-33220-A1×2iMZEA12,ZRE212,ZWE211,214..G,HBDS,HBDWB,S,WB; NRE210; ZRE212,ZWE211,214..GX,HBDGX202107

main89341-33220-A5×2iMZEA12,ZRE212,ZWE211,214..G,HBDS,HBDWB,S,WB; NRE210; ZRE212,ZWE211,214..GX,HBDGX201908-202107

main89341-33220-B0×2iZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,S201908

main89341-33220-C7×2iMZEA12,ZRE212,ZWE211,214..G,HBDS,HBDWB,S,WB; NRE210; ZRE212,ZWE211,214..GX,HBDGX201908

main89341-33220-D7×2iNRE210; ZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,HBDWB,S,WB202107

main89341-33220-D8×2iZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,S201908-202107

main89341-33220-J3×2iNRE210; ZRE212,ZWE211,214..HBDWB,WB202010

main89341-33220-L9×2iZWE211,214..WG..HBDWB202111

ARMY ROCK ME.,2YK ,4V0

main89341-33220-P5×2iZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,S201908

main89341-33220-R6×2iMZEA12202006

BLUE ME.,8X7

main89341-33220-S4×2iZWE211,214..SED..HBDWB202111

SLATE GRAY ME.,1K9

main89341-33220-X7×2iMZEA12202006

RED M.M.,3R3

main89341-K0060-21×2iMZEA17,ZWE215,219..HBDWB,WB202210-202505

SPARKLING BLACK PEARL CS.,220

main89341-K0060-A0×2iMZEA17..X202404-202505

SUPER WHITE 2,040

main89341-K0060-A4×2iZWE215,219..ACT,HBDG,HBDWB202210

PLATINUM WHITE PEARL MC.,089 ,2PS

main89341-K0060-B0×2iZWE215,219..HBDX202404

SILVER ME.,1F7

main89341-K0060-C5×2iMZEA17..G,WB202210-202505

ATTITUDE BLACK MC.,218

main89341-K0060-D1×2iZWE215,219..ACT,HBDG,HBDWB202210

RED MC.,2YD ,3T3

main89341-K0060-R4×2iMZEA17..G202210-202505

BLUE ME.,8X7

main89341-K0060-S0×2iMZEA17..WB202210-202505

MASSIVE GRAY,1L6

main89341-K0060-S5×2iZWE215,219..SED..ACT; ZWE215,219..WG..ACT202404

CEMENT GRAY ME.,1H5; CEMENT GRAY ME.,2YY

main89341-33220-G5×2iMZEA12202104-202106

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iMZEA12,ZRE212,ZWE211,214..G,HBDS,HBDWB,S,WB; NRE210; ZRE212,ZWE211,214..GX,HBDGX201908

89343DBUZZER, CLEARANCE WARNING, NO.2

main89747-30040iMZEA12,ZRE212,ZWE211,214..G,HBDS,HBDWB,S,WB; NRE210; ZRE212,ZWE211,214..GX,HBDGX201908

89348DCLIP, ULTRASONIC SENSOR

main89348-58130×4iMZEA12,ZRE212,ZWE211,214..G,HBDS,HBDWB,S,WB; NRE210; ZRE212,ZWE211,214..GX,HBDGX201908

9167380616

main91673-80616

13 parts on this diagram · 2 diagrams in section
