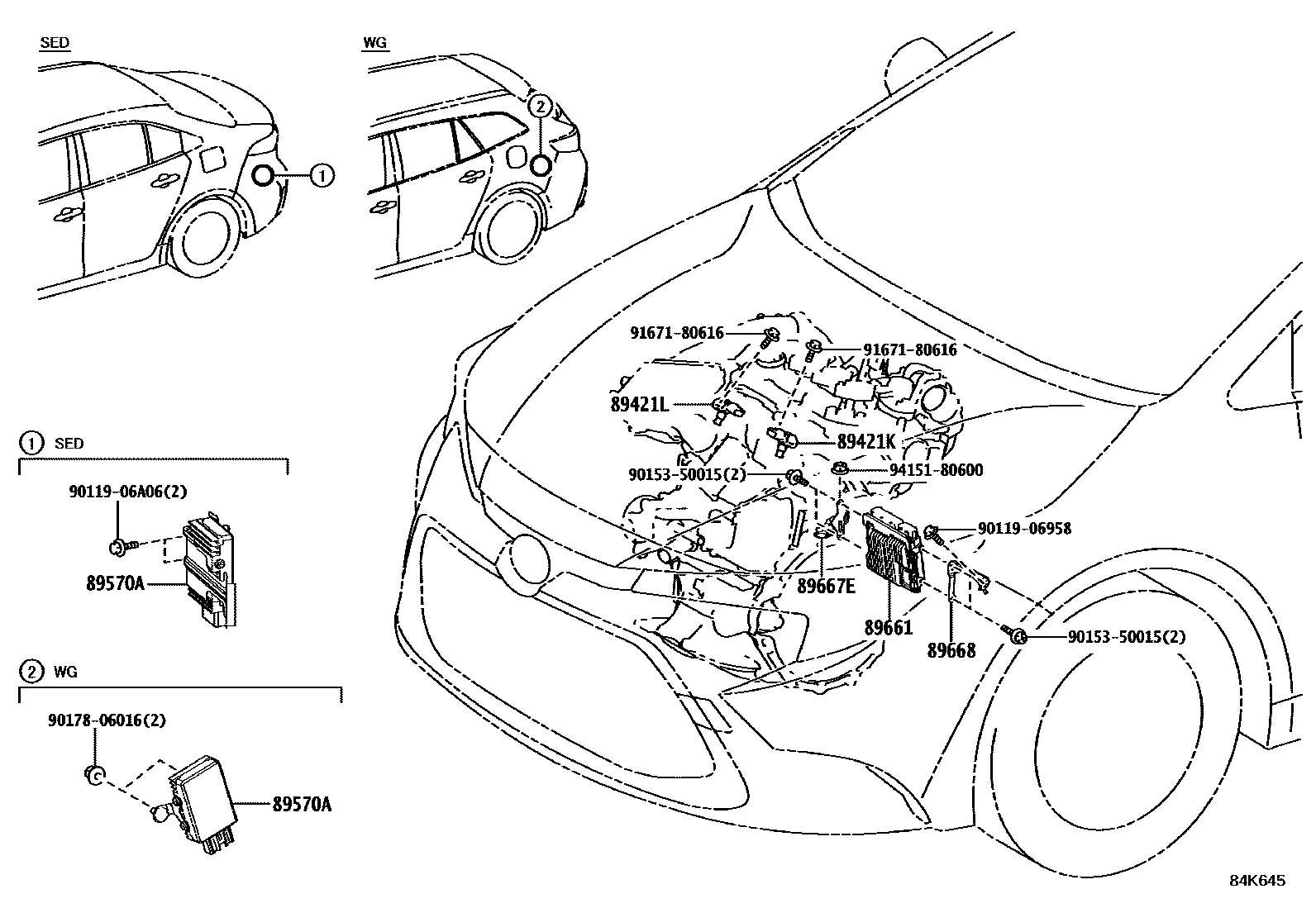

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZRE212,ZWE211,214201908

main89421-33010iMZEA12202006

89421KSENSOR, TURBO PRESSURE, NO.1

main89421-78010iNRE210201908

89421LSENSOR, TURBO PRESSURE, NO.2

main89421-78010iNRE210201908

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-12430iNRE210..SED201908

main89570-12450iNRE210..WG201909

89661COMPUTER, ENGINE CONTROL

main89661-12V70iZRE212201908-202101

main89661-12W10iZWE211201908

main89661-12Z20iZWE214201908

main89661-12Z62iNRE210201908

main89661-16820iZWE215,219202404

main89661-1AD90iMZEA12202006

main89661-1AE60iZRE212202101-202102

main89661-1AE61iZRE212202103

main89661-1AF70iZWE215,219202210-202404

main89661-1AG60iMZEA17202210-202404

main89661-1AK80iMZEA17202404-202504

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-10050iNRE210201908

main89667-12350iMZEA17202210-202504

main89667-12360iZRE212201908

main89667-12370iZWE211,214201908

main89667-47120iZWE215,219202210

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12280iMZEA17202210-202504

main89668-12290iZRE212201908

main89668-12320iNRE210201908

main89668-47050iZWE211,214201908

main89668-47070iZWE215,219202210

9011906958

main90119-06958

9011906A06

main90119-06A06

9015350015

main90153-50015

9017806016

main90178-06016

9167180616

main91671-80616

9415180600

main94151-80600

13 parts on this diagram · 6 diagrams in section
