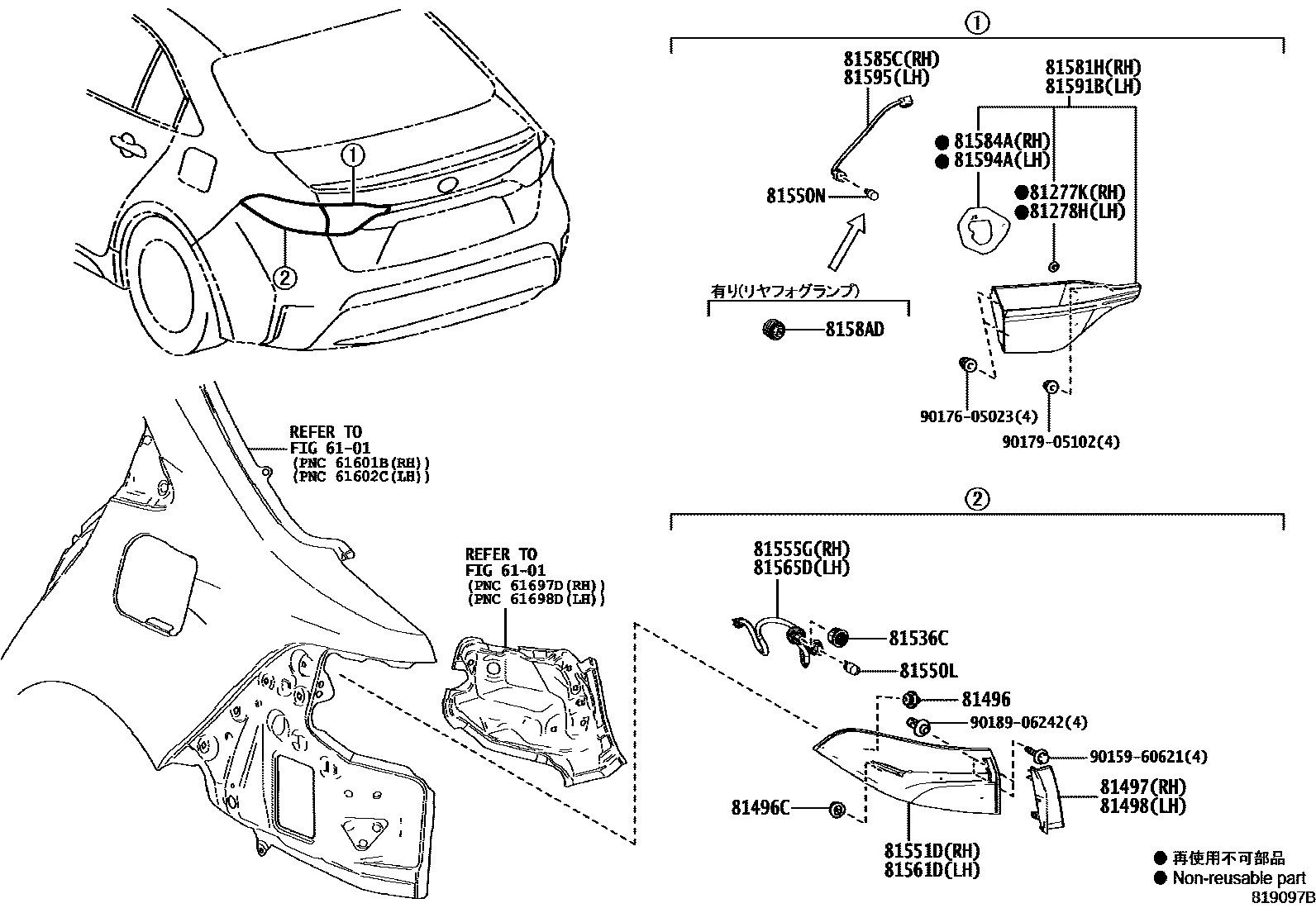

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

6101SIDE MEMBER

→ Go to FIG 61-01

81277KSHADE, LICENSE PLATE LAMP, RH

main81277-20240iZWE215,219..SED202210

81278HSHADE, LICENSE PLATE LAMP, LH

main81277-20240iMZEA17..SED202210-202504

81496GUIDE, REAR COMBINATION LAMP

main81496-60010×2iNRE210,ZRE212,ZWE211,214..SED201908

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020×2iMZEA17202210-202504

81497COVER, REAR COMBINATION LAMP, RH

main81497-12040iNRE210,ZRE212,ZWE211,214..SED201908

main81497-12050iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

81498COVER, REAR COMBINATION LAMP, LH

main81498-12040iNRE210,ZRE212,ZWE211,214..SED201908

main81498-12050iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

81536CLED, TAIL & STOP LAMP

main81536-15120×2iMZEA17,ZWE215,219..G,HBDG,HBDX,X;MZEA17,ZWE215,219..SED..(HBDWB,WB)202210-202403

main81965-70010×2iMZEA17..G,X;MZEA17..SED..WB202404-202504

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iMZEA12,NRE210,ZRE212,ZWE211,214201908

81550NBULB, BACK UP LAMP

main90981-11059×2iZWE215,219..SED; ZWE219..SED202210

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-12D90iMZEA17..WG..WB202210-202504

main81551-12E00iNRE210,ZRE212,ZWE21#..SED201908-202004

main81551-12E01iZWE215,219..SED202210

main81551-12E20iMZEA17..WG..(G,X)202210-202504

81555GCORD, REAR COMBINATION LAMP, RH

main81555-12D90iMZEA17..WG..WB202210-202504

main81555-12E00iNRE210,ZRE212,ZWE211,214..SED201908

main81555-12E20iMZEA17..WG..(G,X)202210-202504

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-12D70iZWE215,219..WG..(HBDG,HBDX)202210

main81561-12D90iZWE215,219..WG..(ACT,HBDWB)202210

main81561-12E00iNRE210,ZRE212,ZWE21#..SED201908-202004

main81561-12E01iMZEA17..SED202210-202504

81565DCORD, REAR COMBINATION LAMP, LH

main81565-12D70iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

main81565-12D90iZWE215,219..WG..(ACT,HBDWB)202210

main81565-12E00iZWE215,219..SED202210

81581HLENS & BODY, REAR LAMP

main81581-12341iZWE215,219..SED202210

main81581-12380iZWE215,219..WG..(HBDG,HBDX)202210

main81581-12460iZWE215,219..WG..(ACT,HBDWB)202210

main81581-12350supersedes 81581-12341iNRE210,ZRE212,ZWE21#..SED201908-202004

main81581-12351supersedes 81581-12341iNRE210,ZRE212,ZWE211,214..SED202004

main81581-12390iZWE215..WG..(HBDG,HBDX)202210-202505

main81581-12470iZWE215..WG..(ACT,HBDWB)202210-202505

81584AGASKET, REAR LAMP RH

main81584-12340iNRE210,ZRE212,ZWE211,214..SED201908

main81584-12380iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-12340iZWE215,219..SED202210

main81585-12380iZWE215,219..WG..(HBDG,HBDX)202210

main81585-12460iZWE215,219..WG..(ACT,HBDWB)202210

main81585-12350iZWE219..SED202210

main81585-12390iZWE215..WG..(HBDG,HBDX)202210-202505

main81585-12470supersedes 81585-12460iMZEA17..WG..WB202210-202504

8158ADLED, REAR FOG LAMP

main8158A-0D610iMZEA12,NRE210,ZRE212,ZWE211,214201908

81591BLENS AND BODY, REAR LAMP, LH

main81591-12340iNRE210,ZRE212,ZWE21#..SED201908-202004

main81591-12341iZWE215,219..SED202210

main81591-12380iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

main81591-12460iZWE215,219..WG..(ACT,HBDWB)202210

81594AGASKET, REAR LAMP LH

main81584-12340iMZEA17..SED202210-202504

main81584-12380iMZEA17..WG202210-202504

81595SOCKET & WIRE, REAR LAMP, LH

main81585-12340iNRE210,ZRE212,ZWE211,214..SED201908

main81595-12380iZWE215,219..WG..(HBDG,HBDX)202210

main81595-12460iZWE215,219..WG..(ACT,HBDWB)202210

9015960621

main90159-60621

9017605023

main90176-05023

9017905102

main90179-05102

9018906242

main90189-06242

25 parts on this diagram · 3 diagrams in section
