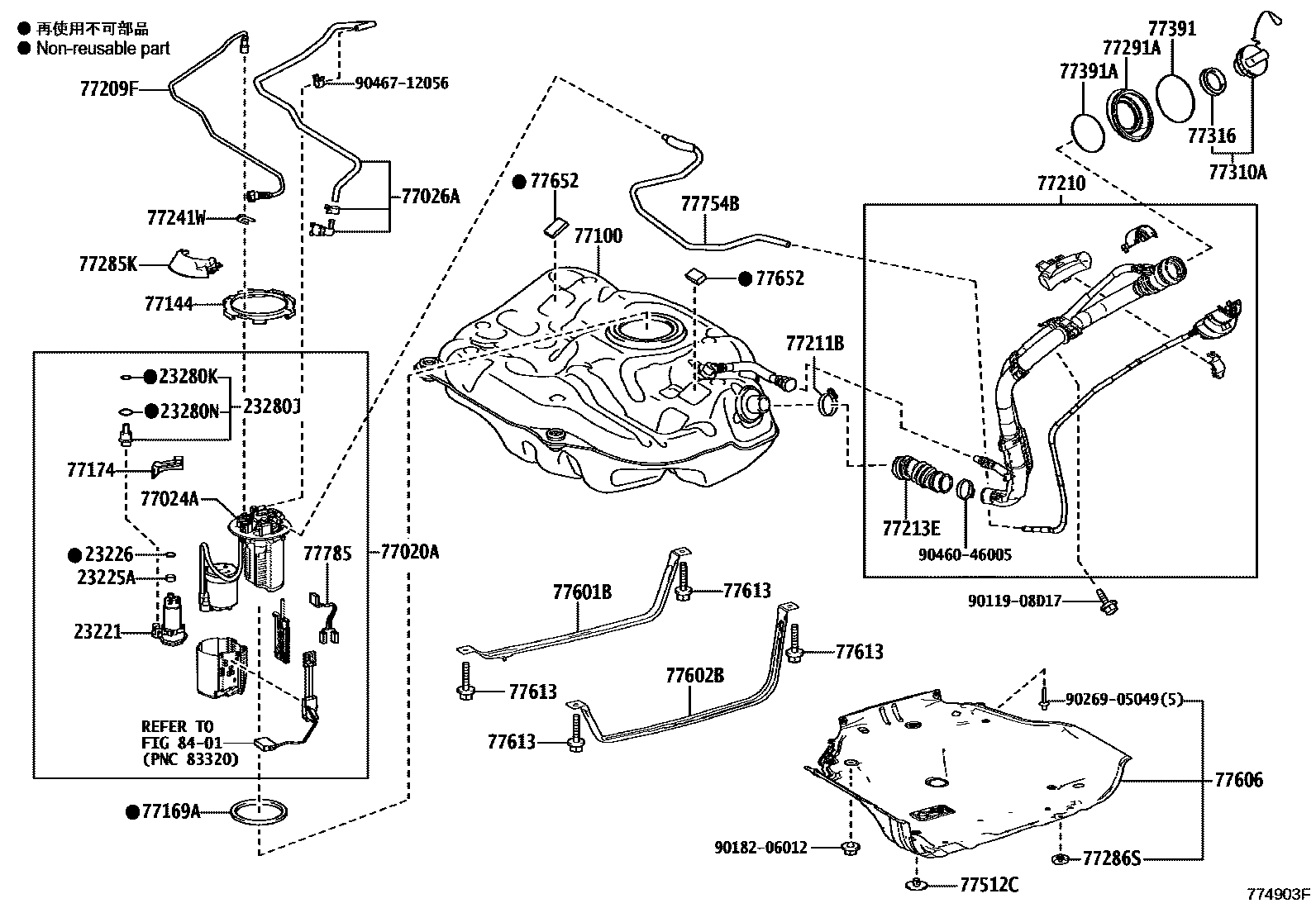

FUEL TANK & TUBE

0001 1�������� 0002 1�������� 0003 1�������� 0004 1�������� 0005 1�������� 0006 1�������� 0007 1���������� 0008 1���������� 0009 1���������� 0010 1���������� 0011 1���������� 0012 1���������� 0013 1�������������� 0014 1��������������

23221PUMP, FUEL

main23210-37010i2ZRFAE..ZRE212201908

main23210-37020i2ZRFXE..ZWE211,214201908

main23220-47070i8NRFTS..NRE210201908

23225ASPACER, FUEL PUMP

main23225-21020i2ZRFXE..ZWE215,219202210

23226RING, O(FOR FUEL PUMP)

main90301-08020i8NRFTS,2ZR#..NRE210,ZRE212,ZWE211,214201908

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-15040iM15AFKS..MZEA17202210-202504

main23280-21010i2ZR#..ZRE212,ZWE211,214201908

main23280-36020i8NRFTS..NRE210201908

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i8NRFTS,2ZR#..NRE210,ZRE212,ZWE211,214201908

main90301-15024iM15AFKS..MZEA17202210-202504

23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2

main90301-15024i2ZRFXE..ZWE215,219202210

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-10110iNRE210201908

main77020-12A10iMZEA12202006

main77020-12A30iZRE212201908

main77020-12A60iZWE211,214201908

main77020-12B60iMZEA17202210-202504

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-10020iZRE212,ZWE211,214201908

main77024-10030iNRE210201908

main77024-12280iMZEA17202210-202504

main77024-12380iMZEA12202006

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-10040iMZEA12,NRE210201908

main77026-12050iZRE212201908

main77026-12070iMZEA17202210-202504

main77026-47040iZWE211,214201908

77100TANK ASSY, FUEL

main77001-10380iMZEA12,NRE210,ZRE212201908

main77001-12F30iZWE215,219202210

main77001-12F50iMZEA17202210-202504

main77001-47220iZWE211,214201908

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMZEA17202210-202504

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030iMZEA12,NRE210,ZRE212,ZWE211,214201908

main77169-47040iZWE215,219202210

77174SUPPORT, FUEL SUCTION, NO.1

main77174-75010iNRE210201908

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-10130iMZEA12,NRE210201908

main77209-12330iZRE212201908

main77209-12390iMZEA17202308-202504

main77209-12400iMZEA17202210-202307

main77209-47100iZWE211,214201908

main77209-76050iZWE215,219202210

77210PIPE ASSY, FUEL TANK FILLER

main77210-12620iNRE210,ZRE212,ZWE21#201908-202001

main77210-12621iMZEA12,NRE210,ZRE212,ZWE211,214202002

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-50008iMZEA12,NRE210,ZRE212,ZWE211,214201908

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-12360iMZEA12,NRE210,ZRE212,ZWE211,214201908

77241WCLIP, TUBE JOINT

main77241-33011iMZEA12,NRE210,ZRE212,ZWE211,214201908-202108

main77241-60550iZWE215,219202210

77285KCLAMP, FUEL TUBE, NO.1

main77285-10060iMZEA12,NRE210,ZRE212201908

main77285-30350iZWE211,214201908

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iMZEA12,NRE210,ZRE212201908

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-12250iZWE215,219202210

77310ACAP ASSY, FUEL TANK

main77300-12020iZWE215,219202210

77316GASKET, FUEL TANK CAP

main77316-52040iZWE215,219202210

77391RING, FUEL INLET BOX

main77391-12020iMZEA17202210-202504

77391ARING, FUEL INLET BOX

main77391-20040iMZEA17202210-202504

77512CBRACKET, FUEL TANK

main77512-35140×4iMZEA12,NRE210,ZRE212,ZWE211,214201908

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-10080iMZEA12,NRE210,ZRE212201908

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-10030iMZEA12,NRE210,ZRE212201908

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-10060iMZEA12,NRE210,ZRE212201908

77613BOLT, FUEL TANK BAND SET

main90119-10995×4iMZEA12,NRE210,ZRE212201908

77652CUSHION, FUEL TANK, NO.1

main77652-10070×2iMZEA12,NRE210,ZRE212201908

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-10020iMZEA12,NRE210,ZRE212201908

main77754-16100iMZEA17202210-202504

main77754-16120iZWE215,219202401

main77754-47090iZWE215,219202210-202312

77785HARNESS, FUEL PUMP

main77785-12010iZWE215,219202210

main77785-76010iMZEA17202210-202504

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908D17

main90119-08D17

9018206012

main90182-06012

9026905049

main90269-05049

9046046005

main90460-46005

9046712056

main90467-12056

39 parts on this diagram · 14 diagrams in section
