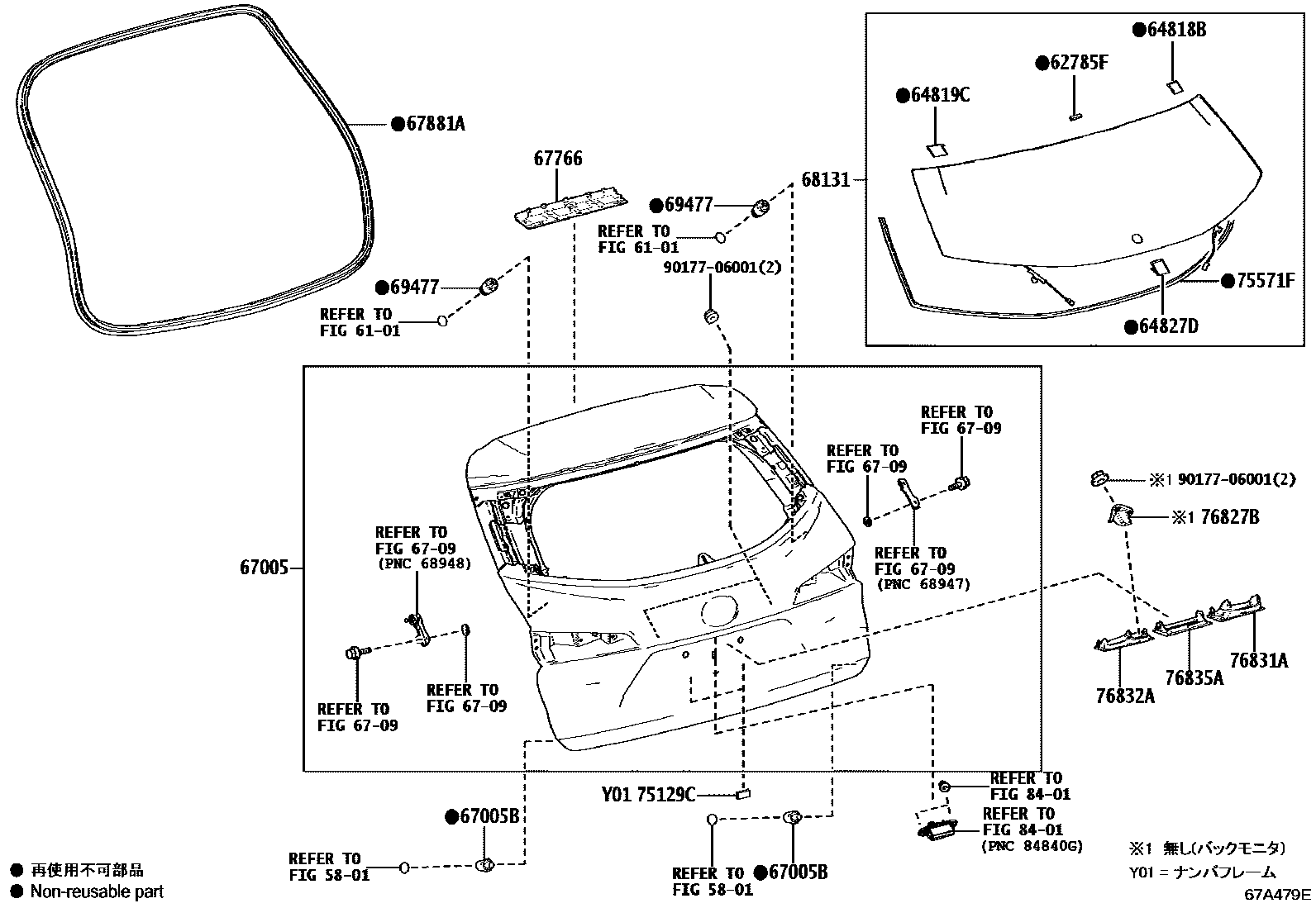

BACK DOOR PANEL & GLASS

0001 1������� 0002 1������

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

6101SIDE MEMBER

→ Go to FIG 61-01

62785FSPACER, BACK DOOR GLASS

main62785-60030iMZEA17..WG202210-202504

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-12090iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

64819CSPACER, BACK DOOR GLASS, NO.2

main64819-12070iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

64827DCLIP, BACK WINDOW GLASS

main64827-12030iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

67005PANEL SUB-ASSY, BACK DOOR

main67005-12F90iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09147×2iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

67766COVER, BACK DOOR SERVICE HOLE, NO.2

main67766-12030-C0iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

BLACK,TRIM2#

67881AWEATHERSTRIP, BACK DOOR

main67881-12330iMZEA17..WG202210-202504

68131GLASS, BACK DOOR

main68105-12500iMZEA17,ZWE215,219..WG..(HBDX,X)202210-202404

main68105-12501iMZEA17..WG..X202404-202504

main68105-12510supersedes 68105-12500iZWE215,219..WG..(ACT,HBDG,HBDWB)202210

69477CUSHION, BACK DOOR UPPER STOPPER

main69477-12020×2iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

75129CCUSHION, REAR LICENCE PLATE

main75129-30010×2iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

75571FMOULDIMG, BACK DOOR WINDOW

main75571-12B10iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

76827BRETAINER, BACK DOOR GARNISH, NO.2

main76827-12080iZRE212,ZWE211,214..WG..(GX,HBDGX)201909

76831ACOVER, BACK DOOR FINISH PANEL, RH

main76831-12010iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

76832ACOVER, BACK DOOR FINISH PANEL, LH

main76832-12010iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

76835APROTECTOR, BACK DOOR FINISH PANEL, NO.1

main76835-12040iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017706001

main90177-06001

21 parts on this diagram · 2 diagrams in section
