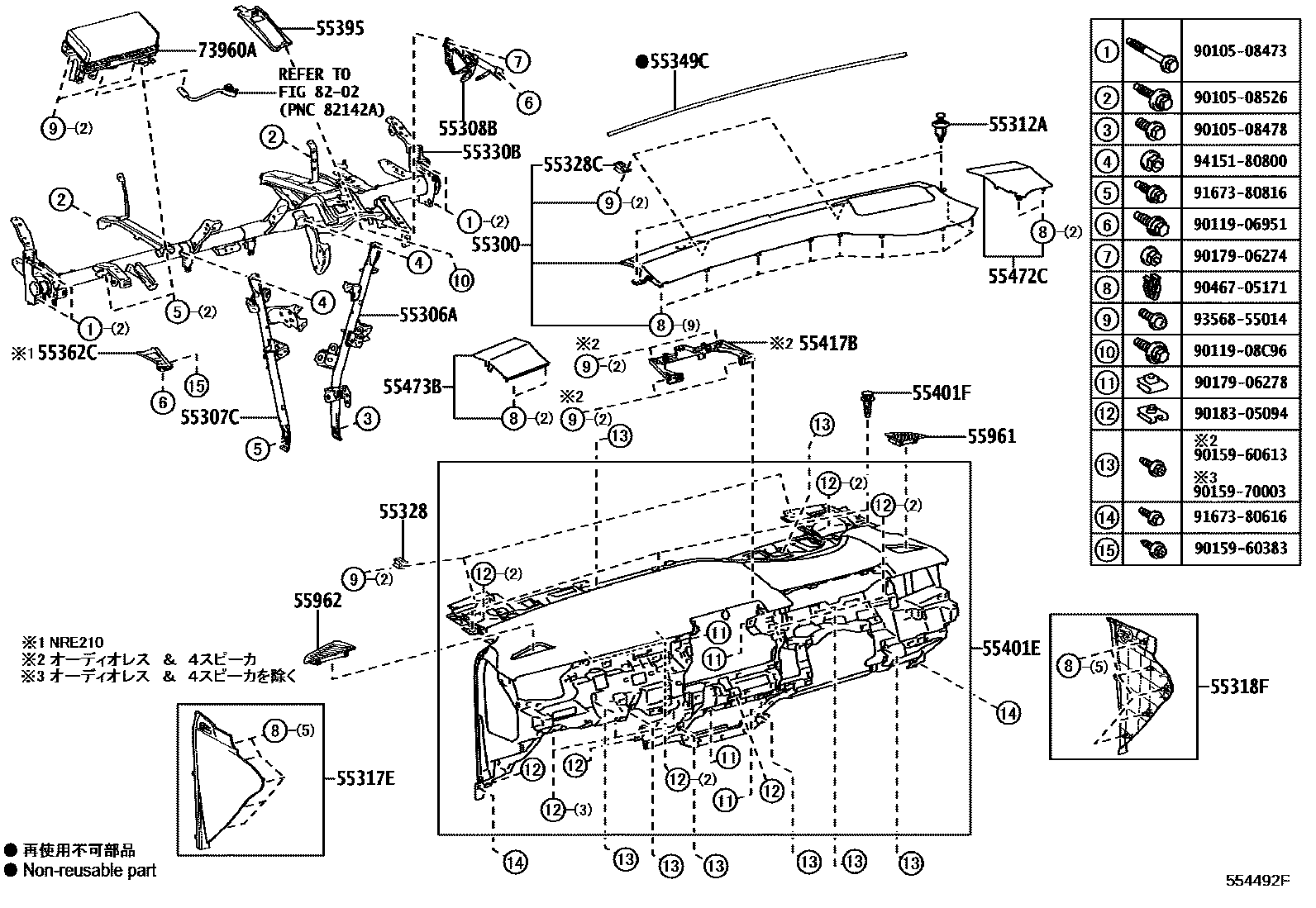

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1��������� 0004 1��������� 0005 1����� 0006 1����� 0007 1���������� 0008 1����������

55300PANEL ASSY, INSTRUMENT, UPPER

main55300-12060-C0iNRE210,ZRE212,ZWE211,214201908-202208

BLACK,TRIM2#

main55300-12061-C0iNRE210,ZRE212,ZWE211,214202209

BLACK,TRIM2#

main55300-12070-C0iMZEA12202006

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12530iNRE210201908

main55306-12550iMZEA12,ZRE212,ZWE211,214201908

main55306-12560iMZEA17202210-202504

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12460iMZEA12,NRE210,ZRE212,ZWE211,214201908

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-12340iMZEA12,NRE210,ZRE212,ZWE211,214201908

main55308-12350iMZEA17202210-202504

55312ACLIP, INSTRUMENT PANEL

main90467-07217×2iMZEA17202210-202504

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-12230-C0iMZEA12,NRE210,ZRE212,ZWE211,214201908

BLACK,TRIM2#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-12170-C0iMZEA12,NRE210,ZRE212,ZWE211,214201908

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430×2iMZEA17202210-202504

main55328-60090×2iNRE210,ZRE212,ZWE21#201908-202004

55328CPIN, INSTRUMENT PANEL, NO.2

main55328-12420×2iNRE210,ZRE212,ZWE21#201908-202003

main55328-12440×2iMZEA17202210-202504

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-12641iMZEA12202006

main55330-12860iNRE210,ZRE212,ZWE21#201908-201912

main55330-12861iNRE210,ZRE212,ZWE211,214202001

main55330-12870iMZEA17202210-202504

main55330-12640iNRE210,ZRE212,ZWE21#..HBDWB,WB201908-201912

main55330-12830iMZEA17..WB202210-202504

55349CCUSHION, INSTRUMENT PANEL

main55349-12190iMZEA12,NRE210,ZRE212,ZWE211,214201908

main55349-12200iMZEA17202210-202504

55362CBRACKET, PARKING BRAKE MOUNTING

main55362-12100iNRE210201908

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-12040iMZEA12,NRE210,ZRE212,ZWE211,214201908

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55400-12904-C4iZRE212,ZWE21#..GX,HBDGX,HBDS,S201908-202011

BLACK,TRIM2#

main55400-12905-20iNRE210,ZRE212,ZWE211,214..HBDWB,WB201908-202012

BLACK/BEIGE,TRIM2#

main55400-12905-C8iMZEA12202006-202012

BLACK/GRAY,TRIM2#

main55400-12908-C4iZRE212,ZWE211,214..GX,HBDGX,HBDS,S202012

BLACK,TRIM2#

main55400-12909-20iNRE210,ZRE212,ZWE211,214..HBDWB,WB202012

BLACK/BEIGE,TRIM2#

main55400-12909-C8iMZEA12202012

BLACK/GRAY,TRIM2#

main55400-12910-C0supersedes 55400-12908-C4iMZEA17..G; MZEA17..X202210-202504

main55400-12906-C4iZRE212,ZWE211,214..GX,HBDGX202006-202012

main55400-12911-C1iMZEA12202104-202106

main55400-12912-C1iZWE211,214..WG..HBDWB202111

main55400-12912-C2iZWE211,214..SED..HBDWB202111

main55400-12914-C2supersedes 55400-12909-20iMZEA17..WB202210-202504

main55400-12916-C4supersedes 55400-12915-C4iZWE215,219..ACT202404-202512

55401FCLIP(FOR SAFETY PAD)

main52161-16010×3iZWE215,219202210

55417BRETAINER, RADIO TUNER FINISH

main55417-12060iMZEA17..G,WB; MZEA17..X202210-202504

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-12140-C0iMZEA12,NRE210,ZRE212,ZWE211,214201908

BLACK,TRIM2#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-12120-C0iMZEA12,NRE210,ZRE212,ZWE211,214201908-202107

BLACK,TRIM2#

main55473-12140-C0iMZEA12,NRE210,ZRE212,ZWE211,214202107

BLACK,TRIM2#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12260-C0iMZEA17202210-202504

BLACK,TRIM2#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12230-C0iZWE215,219202210

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-12200iZWE215,219202210

main73960-12320iMZEA12,NRE210,ZRE212,ZWE211,214201908

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508473

main90105-08473

9010508478

main90105-08478

9010508526

main90105-08526

9011906951

main90119-06951

9011908C96

main90119-08C96

9015960383

main90159-60383

9015960613

main90159-60613

9015970003

main90159-70003

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

38 parts on this diagram · 8 diagrams in section
