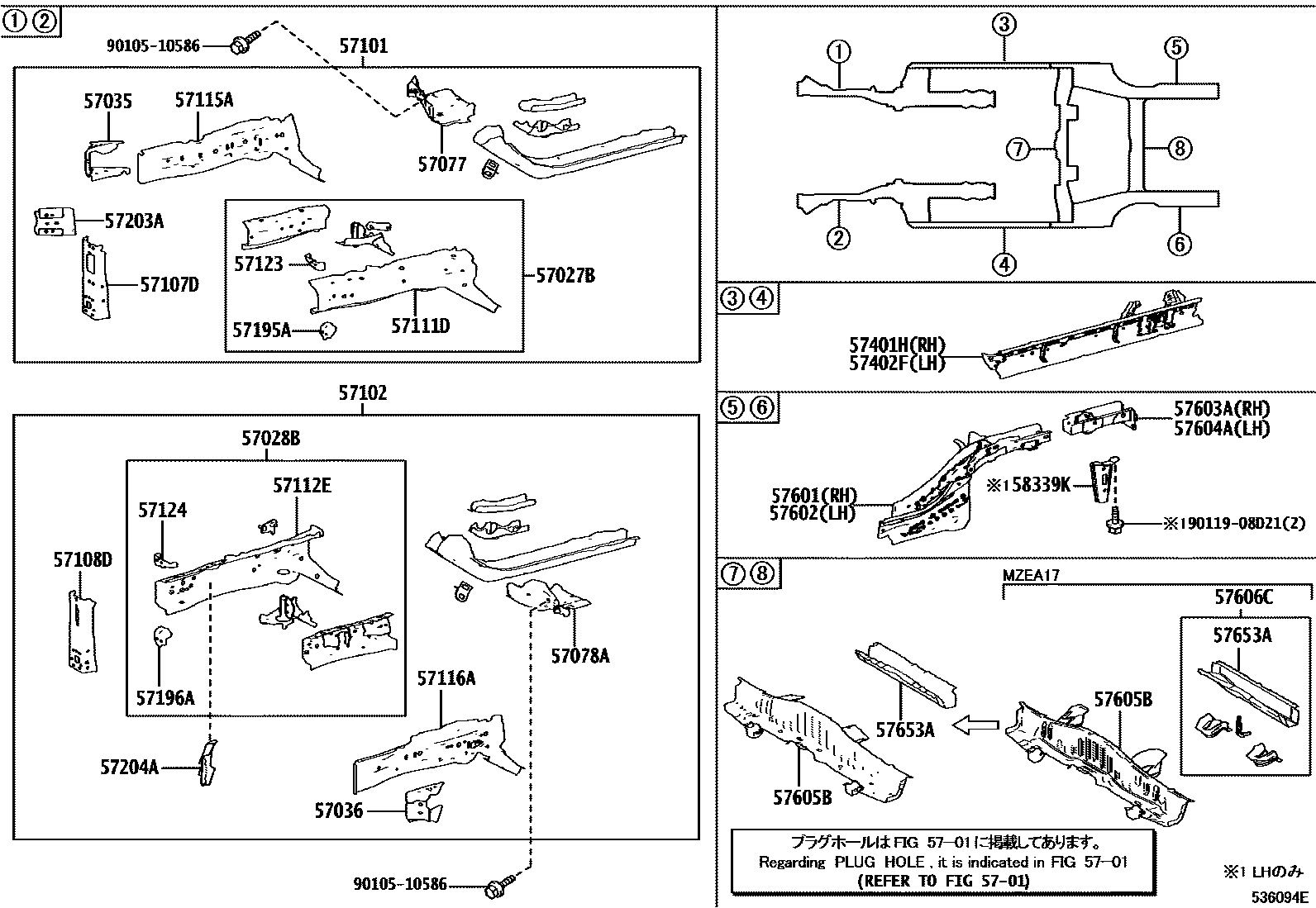

FLOOR SIDE MEMBER

0001 1 0002 1

5701HOLE PLUG

→ Go to FIG 57-01

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-47021iMZEA12,NRE210,ZRE212,ZWE211,214201908

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-47040iMZEA12,NRE210,ZRE212,ZWE211,214201908

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-47021iMZEA12,NRE210,ZRE212,ZWE211,214201908

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-47031iMZEA12,NRE210,ZRE212,ZWE211,214201908

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-47041iMZEA12,NRE210,ZRE212,ZWE211,214201908

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-47041iMZEA12,NRE210,ZRE212,ZWE211,214201908

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-47071iMZEA12,NRE210,ZRE212,ZWE211,214201908

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-47091iMZEA12,NRE210,ZRE212,ZWE211,214201908

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-47030iMZEA12,NRE210,ZRE212,ZWE211,214201908

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-47030iMZEA12,NRE210,ZRE212,ZWE211,214201908

57111DMEMBER, FRONT SIDE, INNER RH

main57111-47030iMZEA12,NRE210,ZRE212,ZWE211,214201908

57112EMEMBER, FRONT SIDE, INNER LH

main57112-47030iMZEA12,NRE210,ZRE212,ZWE211,214201908

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-47901iMZEA12,NRE210,ZRE212,ZWE211,214201908

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-47902iMZEA12,NRE210,ZRE212,ZWE211,214201908

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-47020iMZEA12,NRE210,ZRE212,ZWE211,214201908

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-47020iMZEA12,NRE210,ZRE212,ZWE211,214201908

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-47030iMZEA17202210-202504

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57203-47011iMZEA12,NRE210,ZRE212,ZWE211,214201908

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-47011iMZEA12,NRE210,ZRE212,ZWE211,214201908

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-12640iZWE215,219202210

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-12640iMZEA17202210-202504

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12B70iMZEA12,NRE210,ZRE212,ZWE211,214201908-202112

main57601-12C30iZWE215,219202210

main57601-12C40iMZEA17202210-202504

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12C50iMZEA12,NRE210,ZRE212,ZWE211,214201908-202112

main57602-12D10iMZEA12,NRE210,ZRE212,ZWE211,214202201

main57602-12D20iMZEA17202210-202504

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-12120iNRE210,ZRE212,ZWE211,214..SED201908

main57603-12140iMZEA17..SED202210-202504

main57603-16020iMZEA17..WG202210-202504

main57603-47060iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-12110iNRE210,ZRE212,ZWE211,214..SED201908

main57604-12120iMZEA17..SED202210-202504

main57604-12140iMZEA17..WG202210-202504

main57604-47060iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-10071iMZEA12,NRE210,ZRE212201908

main57605-16070iMZEA17202210-202504

main57605-47080iZWE215,219202210

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-12390iMZEA17202210-202504

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-12190iMZEA17202210-202504

main57653-47040iMZEA12,NRE210,ZRE212,ZWE211,214201908

58339KBRACKET JACK UP

main58339-12070iMZEA17202210-202504

9010510586

main90105-10586

9011908D21

main90119-08D21

33 parts on this diagram · 2 diagrams in section
