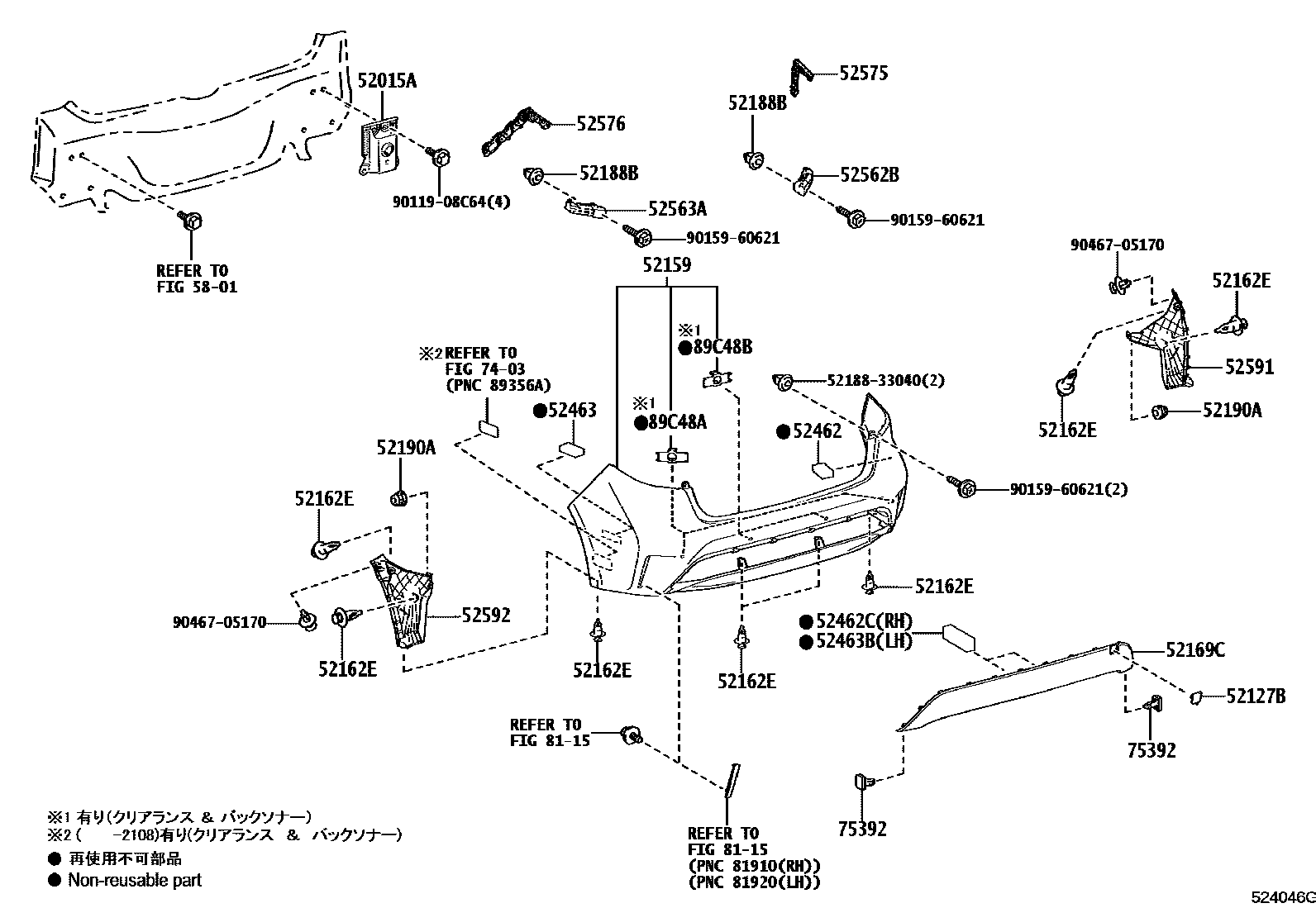

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0004 1 0005 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-12480iNRE210,ZRE212,ZWE211,214..SED201908

main52015-12500iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

52127BCOVER, REAR BUMPER HOLE, RH

main52161-12080iNRE210,ZRE212,ZWE211,214..SED201908

main52161-12100-A0iZWE215,219..WG..HBDX202404

SUPER WHITE 2,040

main52161-12100-A1iMZEA12,NRE210,ZRE212,ZWE21#..WG..(G,HBDS,HBDWB,S,WB); ZRE212,ZWE21#..WG..(GX,HBDGX)201909-202107

main52161-12100-A2iMZEA12,NRE210,ZRE212,ZWE211,214..WG..(G,HBDS,HBDWB,S,WB); ZRE212,ZWE211,214..WG..(GX,HBDGX)202107

main52161-12100-B0iZRE212,ZWE211,214..WG..(GX,HBDGX); ZRE212,ZWE211,214..WG..(HBDS,S)201909

main52161-12100-B1iZRE212,ZWE211,214..WG..(GX,HBDGX); ZRE212,ZWE211,214..WG..(HBDS,S)201909

main52161-12100-B2iZWE215,219..WG..HBDWB202210

MASSIVE GRAY,1L6

main52161-12100-B3iZWE215,219..WG..ACT202404

CEMENT GRAY ME.,2YY

main52161-12100-C0iMZEA12,NRE210,ZRE212,ZWE211,214..WG..(G,HBDS,HBDWB,S,WB); ZRE212,ZWE211,214..WG..(GX,HBDGX)201909

main52161-12100-C1iMZEA17,ZWE215,219..WG..(HBDWB,WB)202210-202504

SPARKLING BLACK PEARL CS.,220

main52161-12100-C2iMZEA17..WG..(G,WB)202210-202504

ATTITUDE BLACK MC.,218

main52161-12100-D0iZRE212,ZWE21#..WG..(GX,HBDGX); ZRE212,ZWE21#..WG..(HBDS,S)201909-202107

main52161-12100-D1iMZEA12202006

RED M.M.,3R3

main52161-12100-D2iNRE210,ZRE212,ZWE211,214..WG..(HBDS,HBDWB,S,WB); ZRE212,ZWE211,214..WG..(GX,HBDGX)202107

main52161-12100-E0iZWE211,214..WG..HBDWB202111

ARMY ROCK ME.,2YK ,4V0

main52161-12100-J0iNRE210,ZRE212,ZWE211,214..WG..(HBDWB,WB)202010

DK.BLUE M.M.,2TT

main52161-12100-J1iZWE215,219..WG..HBDG202210

BLUE ME.,8X7

main52161-12100-G0iMZEA12202104-202106

52159COVER, REAR BUMPER

main52159-12965-A0supersedes 52159-12D90-A1iZRE212,ZWE211,214..SED..(GX,HBDGX); ZRE212,ZWE211,214..SED..(HBDS,S)201908

main52159-12965-A1iNRE210..SED; ZRE212,ZWE21#..SED..(GX,HBDGX); ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB)201908-202107

main52159-12965-A2iNRE210..SED; ZRE212,ZWE211,214..SED..(GX,HBDGX); ZRE212,ZWE211,214..SED..(HBDS,HBDWB,S,WB)202107

main52159-12965-B0supersedes 52159-12D90-B0iZRE212,ZWE211,214..SED..(GX,HBDGX); ZRE212,ZWE211,214..SED..(HBDS,S); ZRE212,ZWE211,214..SED..(HBDWB,WB)201908

main52159-12965-B1supersedes 52159-12D90-B1iZRE212,ZWE211,214..SED..(GX,HBDGX); ZRE212,ZWE211,214..SED..(HBDS,S)201908

main52159-12965-B2iZWE211,214..SED..HBDWB202111

SLATE GRAY ME.,1K9

main52159-12965-C2iNRE210..SED; ZRE212,ZWE211,214..SED..(GX,HBDGX); ZRE212,ZWE211,214..SED..(HBDS,HBDWB,S,WB)201908

main52159-12965-C3supersedes 52159-12D90-C1iNRE210..SED; ZRE212,ZWE211,214..SED..(HBDWB,WB)201908

main52159-12965-D0supersedes 52159-12D90-D0iZRE212,ZWE21#..SED..(GX,HBDGX); ZRE212,ZWE21#..SED..(HBDS,S)201908-202107

main52159-12965-D2iNRE210..SED; ZRE212,ZWE211,214..SED..(GX,HBDGX); ZRE212,ZWE211,214..SED..(HBDS,HBDWB,S,WB)202107

main52159-12965-J1supersedes 52159-12D90-J0iZRE212,ZWE211,214..SED..(GX,HBDGX); ZRE212,ZWE211,214..SED..(HBDS,S); ZRE212,ZWE211,214..SED..(HBDWB,WB)201908

main52159-12968-A0supersedes 52159-12E20-A1iZRE212,ZWE211,214..WG..(GX,HBDGX); ZRE212,ZWE211,214..WG..(HBDS,S)201909

main52159-12968-A1iMZEA12,ZRE212,ZWE21#..WG..(G,HBDS,HBDWB,S,WB); NRE210..WG; ZRE212,ZWE21#..WG..(GX,HBDGX)201909-202107

main52159-12968-A2iMZEA12,ZRE212,ZWE211,214..WG..(G,HBDS,HBDWB,S,WB); NRE210..WG; ZRE212,ZWE211,214..WG..(GX,HBDGX)202107

main52159-12968-B0supersedes 52159-12E20-B0iNRE210..WG; ZRE212,ZWE211,214..WG..(HBDWB,WB)202010

main52159-12968-B1supersedes 52159-12E20-B1iZRE212,ZWE211,214..WG..(GX,HBDGX); ZRE212,ZWE211,214..WG..(HBDS,S)201909

main52159-12968-C2iMZEA12,ZRE212,ZWE211,214..WG..(G,HBDS,HBDWB,S,WB); NRE210..WG; ZRE212,ZWE211,214..WG..(GX,HBDGX)201909

main52159-12968-C3supersedes 52159-12E20-C1iNRE210..WG; ZRE212,ZWE211,214..WG..(HBDWB,WB)201909

main52159-12968-D0supersedes 52159-12E20-D0iZRE212,ZWE21#..WG..(GX,HBDGX); ZRE212,ZWE21#..WG..(HBDS,S)201909-202107

main52159-12968-D1iMZEA12202006

RED M.M.,3R3

main52159-12968-D2iNRE210..WG; ZRE212,ZWE211,214..WG..(GX,HBDGX); ZRE212,ZWE211,214..WG..(HBDS,HBDWB,S,WB)202107

main52159-12968-E0iZWE211,214..WG..HBDWB202111

ARMY ROCK ME.,2YK ,4V0

main52159-12968-J1supersedes 52159-12E20-J0iZRE212,ZWE211,214..WG..(GX,HBDGX); ZRE212,ZWE211,214..WG..(HBDS,S)201909

main52159-12968-J2iMZEA12202006

BLUE ME.,8X7

main52159-12981-A0supersedes 52159-12D90-A1iMZEA17,ZWE215,219..SED..(G,HBDG); MZEA17,ZWE215,219..SED..(HBDX,X)202210-202404

main52159-12981-A1supersedes 52159-12D90-A2iMZEA17,ZWE215,219..SED..(G,HBDG,HBDWB,WB); MZEA17,ZWE215,219..SED..(HBDX,X)202210-202404

main52159-12981-A2iMZEA17..SED..(G,X)202404-202504

SUPER WHITE 2,040

main52159-12981-A3iZWE215,219..SED..(HBDG,HBDWB,HBDX); ZWE215,219..SED..ACT202404

PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PS

main52159-12981-A4iZWE215,219..SED..ACT202404

PTM. WHITE PEARL MC./BLK.,089

main52159-12981-B0supersedes 52159-12D90-B0iMZEA17,ZWE215,219..SED..(G,HBDG); MZEA17,ZWE215,219..SED..(HBDX,X)202210-202404

main52159-12981-B1iMZEA17,ZWE215,219..SED..(HBDWB,WB)202210-202404

MASSIVE GRAY,1L6

main52159-12981-B5iMZEA17..SED..(G,X)202404-202504

SILVER ME.,1F7

main52159-12981-B6iMZEA17..SED..WB202404-202504

MASSIVE GRAY,1L6

main52159-12981-B7iZWE215,219..SED..ACT202404

CEMENT GRAT ME./BLACK MC.,1H5

main52159-12981-C0supersedes 52159-12D90-C2iMZEA17,ZWE215,219..SED..(G,HBDG,HBDWB,WB); MZEA17,ZWE215,219..SED..(HBDX,X)202210-202404

main52159-12981-C1iMZEA17,ZWE215,219..SED..(HBDWB,WB)202210-202404

SPARKLING BLACK PEARL CS.,220

main52159-12981-C4iMZEA17..SED202404-202504

ATTITUDE BLACK MC.,218

main52159-12981-C5iMZEA17,ZWE215,219..SED..(HBDWB,WB)202404-202504

220

main52159-12981-D0iMZEA17,ZWE215,219..SED..(G,HBDG,HBDWB,WB)202210-202404

RED MC.,3T3

main52159-12981-D2iMZEA17..SED..(G,WB)202404-202504

RED MC.,3T3

main52159-12981-J0iMZEA17,ZWE215,219..SED..(G,HBDG)202210-202404

BLUE ME.,8X7

main52159-12981-J2iZWE215,219..SED..(ACT,HBDG)202404

BLUE ME.,8X7

main52159-12982-A0supersedes 52159-12E20-A1iMZEA17,ZWE215,219..WG..(G,HBDG); MZEA17,ZWE215,219..WG..(HBDX,X)202210-202404

main52159-12982-A1supersedes 52159-12E20-A2iMZEA17,ZWE215,219..WG..(G,HBDG,HBDWB,WB); MZEA17,ZWE215,219..WG..(HBDX,X)202210-202404

main52159-12982-A2iZWE215,219..WG..(HBDG,HBDX)202404

SUPER WHITE 2,040

main52159-12982-A3iMZEA17..WG..(G,WB); MZEA17..WG..X202404-202504

PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PS

main52159-12982-A4iZWE215,219..WG..ACT202404

PTM. WHITE PEARL MC./BLK.,089

main52159-12982-B0supersedes 52159-12E20-B0iMZEA17,ZWE215,219..WG..(G,HBDG); MZEA17,ZWE215,219..WG..(HBDX,X)202210-202404

main52159-12982-B1iMZEA17,ZWE215,219..WG..(HBDWB,WB)202210-202404

MASSIVE GRAY,1L6

main52159-12982-B5iMZEA17..WG..(G,X)202404-202504

SILVER ME.,1F7

main52159-12982-B6iMZEA17..WG..WB202404-202504

MASSIVE GRAY,1L6

main52159-12982-B7iZWE215,219..WG..ACT202404

MASSIVE GRAY/BLACK MC.,2YY

main52159-12982-C0supersedes 52159-12E20-C2iMZEA17,ZWE215,219..WG..(G,HBDG,HBDWB,WB); MZEA17,ZWE215,219..WG..(HBDX,X)202210-202404

main52159-12982-C1iMZEA17,ZWE215,219..WG..(HBDWB,WB)202210-202404

SPARKLING BLACK PEARL CS.,220

main52159-12982-C4iZWE215,219..WG202404

ATTITUDE BLACK MC.,218

main52159-12982-D0iMZEA17,ZWE215,219..WG..(G,HBDG,HBDWB,WB)202210-202404

RED MC.,2YD ,3T3

main52159-12982-D2iZWE215,219..WG..(HBDG,HBDWB)202404

RED MC.,2YD ,3T3

main52159-12982-J0iMZEA17,ZWE215,219..WG..(G,HBDG)202210-202404

BLUE ME.,8X7

main52159-12982-J2iMZEA17..WG..G202404-202504

BLUE ME.,8X7

main52159-12D90-A0iZRE212..SED..GX;NRE210,ZWE21#..SED..(HBDGX,WB)201908-202107

WHITE PEARL CS.,070 ,2KR

main52159-12D90-A2iZRE212..SED..GX;NRE210,ZWE211,214..SED..(HBDGX,WB)202107

PLATINUM WHITE PEARL MC.,089 ,2PU

main52159-12D90-C0iZRE212..SED..GX;NRE210,ZWE211,214..SED..(HBDGX,WB)201908

BLACK MC.,209

main52159-12D90-D1iZRE212..SED..GX;NRE210,ZWE211,214..SED..(HBDGX,WB)202107

RED MC.,3T3

main52159-12E20-A0iZRE212..WG..GX;NRE210,ZWE21#..WG..(HBDGX,WB)201909-202107

WHITE PEARL CS.,070 ,2KR

main52159-12E20-A2iZRE212..WG..GX;NRE210,ZWE211,214..WG..(HBDGX,WB)202107

PLATINUM WHITE PEARL MC.,089 ,2PU

main52159-12E20-B0iNRE210..WG202010

SILVER ME.,2KS

main52159-12E20-C0iZRE212..WG..GX;NRE210,ZWE211,214..WG..(HBDGX,WB)201909

BLACK MC.,209

main52159-12E20-D1iZRE212..WG..GX;NRE210,ZWE211,214..WG..(HBDGX,WB)202107

RED MC.,3T3

main52159-12974-A0iMZEA12202104-202106

main52159-12974-C0iMZEA12202104-202106

main52159-12974-G0iMZEA12202104-202106

52162EPIECE, REAR BUMPER

main52161-16010×8iMZEA12,NRE210,ZRE212,ZWE211,214201908

52169CCOVER, REAR BUMPER, LOWER

main52169-12210iNRE210,ZRE212,ZWE211,214..SED201908

main52169-12230iMZEA17..WG..(G,X)202210-202504

main52169-12240iMZEA12,NRE210,ZRE212,ZWE211,214..WG..(G,HBDWB,WB)201909

main52169-12300iMZEA17..WG..WB202210-202504

52188BSPACER, REAR BUMPER MOUNTING

main52188-33040×2iMZEA12,NRE210,ZRE212,ZWE211,214201908-202109

main90189-06228×2iMZEA12,NRE210,ZRE212,ZWE211,214202110

52190ACLIP

main90467-06206-C0×2iZWE215,219202210

BLACK

52462PAD, REAR BUMPER, RH

main52462-12140iMZEA17..SED202210-202504

52462CPAD, REAR BUMPER, RH

main52462-24010iNRE210,ZRE212,ZWE211,214..SED201908

52463PAD, REAR BUMPER, LH

main52462-12140iMZEA17..SED202210-202504

52463BPAD, REAR BUMPER, LH

main52462-24010iZWE215,219..SED202210

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-12220iMZEA17..SED202210-202504

main52562-12250iMZEA17..WG202210-202504

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-12140iMZEA17..SED202210-202504

main52563-12250iZWE215,219..WG202210

52575RETAINER, REAR BUMPER SIDE, RH

main52575-12250iMZEA17..SED202210-202504

main52575-12260iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

52576RETAINER, REAR BUMPER SIDE, LH

main52576-12240iMZEA17..SED202210-202504

main52576-12250iZWE215,219..WG202210

52591SEAL, REAR BUMPER SIDE, RH

main52591-12340iMZEA17202210-202504

52592SEAL, REAR BUMPER SIDE, LH

main52592-12320iMZEA12,NRE210,ZRE212,ZWE211,214201908

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

75392RETAINER, OUTSIDE MOULDING

main75392-35220×2iZWE215,219..HBDG,HBDX;ZWE215,219..SED..(ACT,HBDWB); ZWE215,219..WG..(ACT,HBDWB)202210

8115REFLEX REFLECTOR

→ Go to FIG 81-15

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-20070-A0×2iZRE212,ZWE211,214..WG..(GX,HBDGX); ZRE212,ZWE211,214..WG..(HBDS,S)201909

main89348-20070-A1×2iMZEA12,ZRE212,ZWE211,214..WG..(G,HBDS,HBDWB,S,WB); NRE210..WG; ZRE212,ZWE211,214..WG..(GX,HBDGX)201909-202107

main89348-20070-A4×2iMZEA12,ZRE212,ZWE211,214..WG..(G,HBDS,HBDWB,S,WB); NRE210..WG; ZRE212,ZWE211,214..WG..(GX,HBDGX)202107

main89348-20070-B0×2iNRE210..WG; ZRE212,ZWE211,214..WG..(HBDWB,WB)202010

main89348-20070-B2×2iZRE212,ZWE211,214..WG..(GX,HBDGX); ZRE212,ZWE211,214..WG..(HBDS,S)201909

main89348-20070-C3×2iNRE210..WG; ZRE212,ZWE211,214..WG..(HBDWB,WB)201909

main89348-20070-C5×2iMZEA12,ZRE212,ZWE211,214..WG..(G,HBDS,HBDWB,S,WB); NRE210..WG; ZRE212,ZWE211,214..WG..(GX,HBDGX)201909

main89348-20070-D2×2iNRE210..WG; ZRE212,ZWE211,214..WG..(GX,HBDGX); ZRE212,ZWE211,214..WG..(HBDS,HBDWB,S,WB)202107

main89348-20070-D3×2iZRE212,ZWE211,214..WG..(GX,HBDGX); ZRE212,ZWE211,214..WG..(HBDS,S)201909-202107

main89348-20070-D6×2iMZEA12202006

RED M.M.,3R3

main89348-20070-E8×2iZWE211,214..WG..HBDWB202111

ARMY ROCK ME.,2YK ,4V0

main89348-20070-J0×2iZRE212,ZWE211,214..WG..(GX,HBDGX); ZRE212,ZWE211,214..WG..(HBDS,S)201909

main89348-20070-J7×2iMZEA12202006

BLUE ME.,8X7

main89348-48311×2iZWE215,219..SED..HBDX202404

main89348-50130×2iNRE210..SED; ZRE212,ZWE211,214..SED..(GX,HBDGX); ZRE212,ZWE211,214..SED..(HBDS,HBDWB,S,WB)201908

main89348-K0231×2iMZEA17..WG..(G,WB)202210-202505

main89348-20070-G2×2iMZEA12202104-202106

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-12300-A0×2iMZEA17..WG..G202210-202505

SUPER WHITE 2,040

main89348-12300-A1×2iZWE215,219..WG..(ACT,HBDG,HBDWB)202210

PLATINUM WHITE PEARL MC.,089 ,2PS

main89348-12300-B0×2iZWE215,219..WG..HBDX202404

SILVER ME.,1F7

main89348-12300-B5×2iMZEA17..WG..WB202210-202505

MASSIVE GRAY,1L6

main89348-12300-B7×2iZWE215,219..WG..ACT202404

CEMENT GRAY ME.,2YY

main89348-12300-C0×2iZWE215,219..WG..HBDX202404

ATTITUDE BLACK MC.,218

main89348-12300-C2×2iMZEA17,ZWE215,219..WG..(HBDWB,WB)202210-202505

SPARKLING BLACK PEARL CS.,220

main89348-12300-D2×2iZWE215,219..WG..(ACT,HBDG,HBDWB)202210

RED MC.,2YD ,3T3

main89348-12300-J3×2iMZEA17..WG..G202210-202505

BLUE ME.,8X7

main89348-45020-A0×2iMZEA17..SED..G202210-202505

SUPER WHITE 2,040

main89348-45020-A1×2iZWE215,219..SED..HBDX202404

PLATINUM WHITE PEARL MC.,089

main89348-45020-B9×2iMZEA17..SED..X202404-202505

SILVER ME.,1F7

main89348-45020-C1×2iZWE215,219..SED..HBDX202404

ATTITUDE BLACK MC.,218

main89348-45020-C6×2iMZEA17,ZWE215,219..SED..(HBDWB,WB)202210-202505

SPARKLING BLACK PEARL CS.,220

main89348-45020-D2×2iZWE215,219..SED..(ACT,HBDG,HBDWB)202210

RED MC.,2YD ,3T3

main89348-45020-J4×2iZWE215,219..SED..(ACT,HBDG)202210

BLUE ME.,8X7

main89348-45020-P0×2iMZEA17..SED..WB202210-202505

MASSIVE GRAY,1L6

main89348-45020-P2×2iZWE215,219..SED..ACT202404

CEMENT GRAY ME.,1H5

main89348-48160-A0×2iNRE210..SED; ZRE212,ZWE211,214..SED..(GX,HBDGX); ZRE212,ZWE211,214..SED..(HBDS,HBDWB,S,WB)201908-202107

main89348-48160-A1×2iZRE212,ZWE211,214..SED..(GX,HBDGX); ZRE212,ZWE211,214..SED..(HBDS,S)201908

main89348-48160-A3×2iNRE210..SED; ZRE212,ZWE211,214..SED..(GX,HBDGX); ZRE212,ZWE211,214..SED..(HBDS,HBDWB,S,WB)202107

main89348-48160-B3×2iZRE212,ZWE211,214..SED..(GX,HBDGX); ZRE212,ZWE211,214..SED..(HBDS,S)201908

main89348-48160-B4×2iZRE212,ZWE211,214..SED..(GX,HBDGX); ZRE212,ZWE211,214..SED..(HBDS,S)201908

main89348-48160-B6×2iZWE211,214..SED..HBDWB202111

SLATE GRAY ME.,1K9

main89348-48160-C2×2iNRE210..SED; ZRE212,ZWE211,214..SED..(GX,HBDGX); ZRE212,ZWE211,214..SED..(HBDS,HBDWB,S,WB)201908

main89348-48160-C3×2iNRE210..SED; ZRE212,ZWE211,214..SED..(HBDWB,WB)201908

main89348-48160-D0×2iNRE210..SED; ZRE212,ZWE211,214..SED..(GX,HBDGX); ZRE212,ZWE211,214..SED..(HBDS,HBDWB,S,WB)202107

main89348-48160-D1×2iZRE212,ZWE211,214..SED..(GX,HBDGX); ZRE212,ZWE211,214..SED..(HBDS,S)201908-202107

main89348-48160-J1×2iNRE210..SED; ZRE212,ZWE211,214..SED..(HBDWB,WB)202010

main89348-58110×2iMZEA12,ZRE212,ZWE211,214..WG..(G,HBDS,HBDWB,S,WB); NRE210..WG; ZRE212,ZWE211,214..WG..(GX,HBDGX)201909

5218833040CUSHION, REAR BUMPER ARM, LH

main52188-33040

9011908C64

main90119-08C64

9015960621

main90159-60621

9046705170

main90467-05170

27 parts on this diagram · 4 diagrams in section
