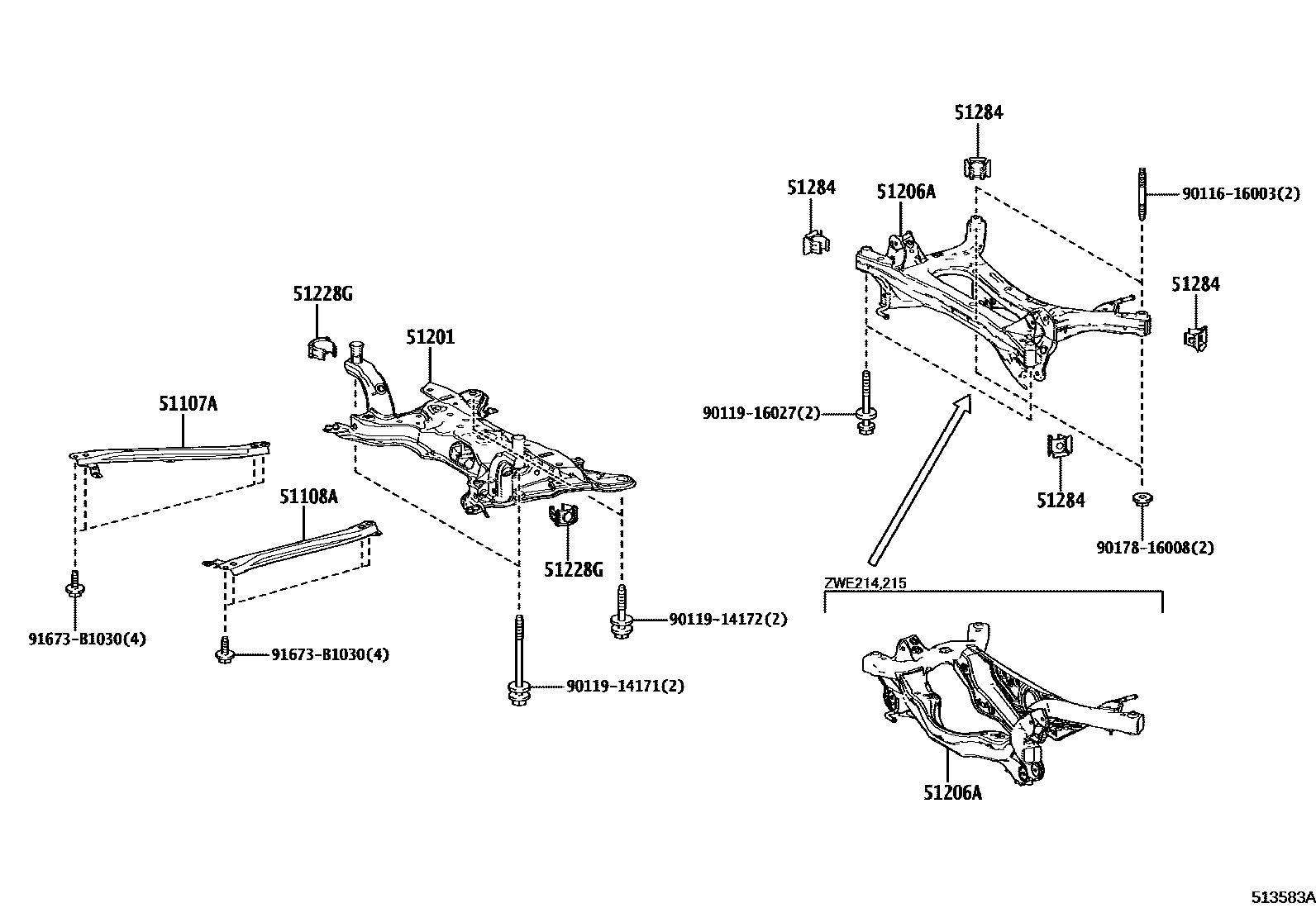

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1�������� ������� 0002 1���� ���� 0003 1���� ���� 0004 1���� ����

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-47020iMZEA17202210-202504

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-47020iMZEA12,NRE210,ZRE212,ZWE211,214201908

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-47072iMZEA12,NRE210,ZRE212,ZWE211,214201908

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-47012iMZEA12,NRE210,ZRE212,ZWE211201908-202011

main51206-47013iZWE219202210

main51206-47023iZWE214201908-202203

main51206-47024iZWE214202204-202207

main51206-47025iZWE214202208

main51206-47031iZWE215202210

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-47010×2iMZEA12,NRE210,ZRE212,ZWE211,214201908

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010×4iZWE214201908-202208

9011616003

main90116-16003

9011914171

main90119-14171

9011914172

main90119-14172

9011916027

main90119-16027

9017816008

main90178-16008

91673B1030

main91673-B1030

12 parts on this diagram · 4 diagrams in section
