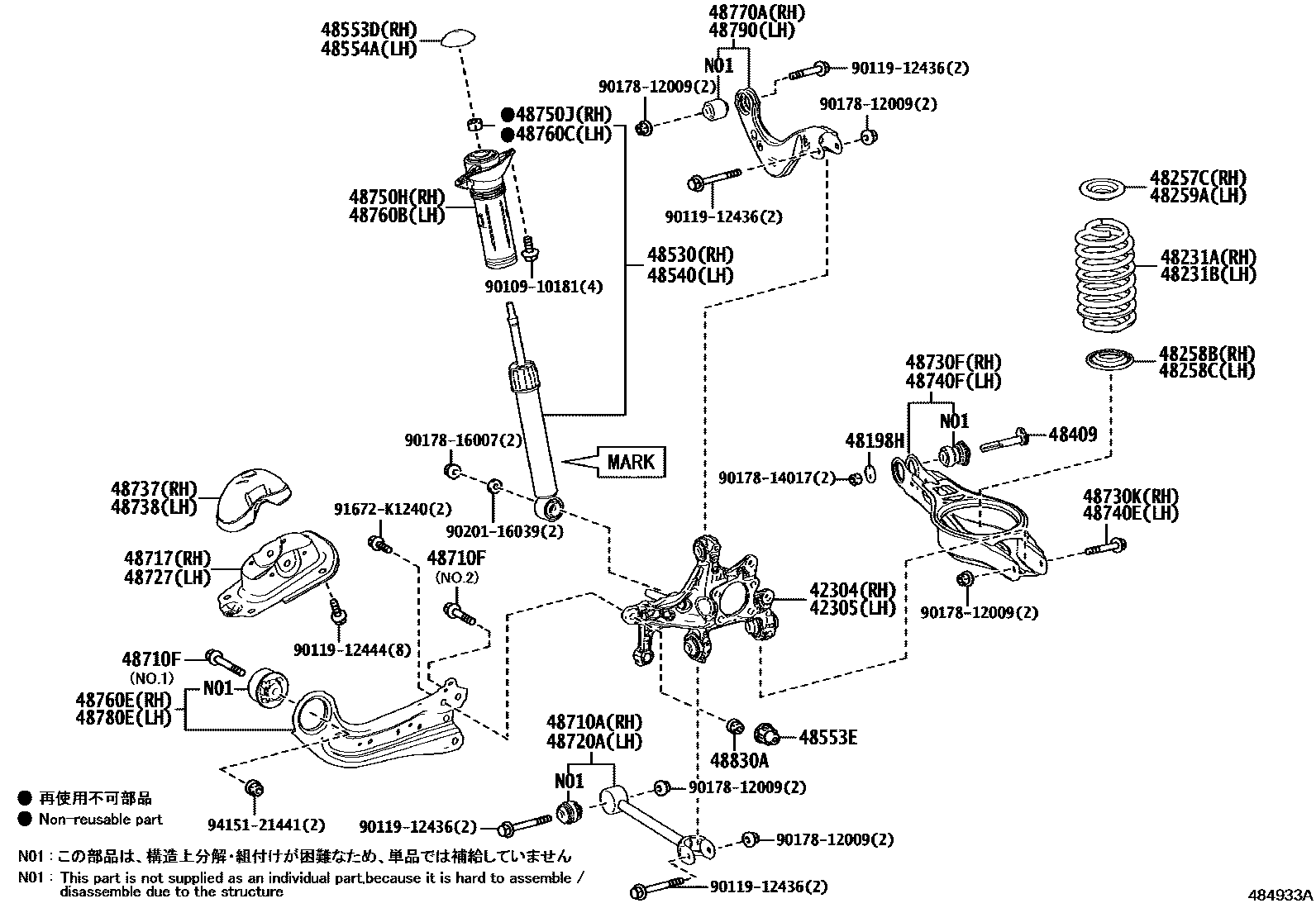

REAR SPRING & SHOCK ABSORBER

0001 1��(��������) 0002 1��(��������) 0003 1��(��������) 0004 1��(��������) 0005 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-47050iZWE219202210

main42304-47060iZWE215202210

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-47050iMZEA12,NRE210,ZRE212,ZWE211201908

main42305-47060iZWE214201908

48198HCAM, CAMBER ADJUST, NO.2

main48198-47010×2iZWE215,219202210

48231ASPRING, COIL, REAR RH

main48231-12G20iZRE212..SED..(GX,S)201908

main48231-12G30iZRE212..WG..(GX,S);ZWE211..SED..(HBDGX,HBDS)201908

main48231-12G40iZWE214..SED..(HBDGX,HBDS)201908

main48231-12G50iZWE214..WG..(HBDGX,HBDS)201909

main48231-12G60iNRE210,ZRE212..SED..WB; ZRE212..SED..S201908

main48231-12G70iZRE212..WG..S;ZWE211..SED..HBDS; ZWE211..SED..HBDWB;NRE210,ZRE212..WG..WB201908

main48231-12G80iMZEA12,ZWE211..WG..(G,HBDWB); ZWE211..WG..HBDS201909

main48231-12G90iZWE214..SED..HBDS; ZWE214..SED..HBDWB201908

main48231-12J00iZWE211..WG..(HBDGX,HBDS)201909

main48231-12J70iZWE214..WG..HBDS; ZWE214..WG..HBDWB201909

main48231-12K00iMZEA17..SED202210-202504

main48231-12K10iZWE219..SED..(ACT,HBDG,HBDWB)202210

main48231-12K20iZWE219..SED..HBDX202210

main48231-12K30iZWE215..SED..(ACT,HBDG,HBDWB)202210

main48231-12K40iZWE215..SED..HBDX202210

main48231-12M00iZWE219..WG..HBDX202210

main48231-12M10iZWE215..WG..(ACT,HBDG,HBDWB)202210

main48231-12M20iZWE215..WG..HBDX202210

main48231-12M30iMZEA17..WG202210-202504

main48231-12M40iZWE219..WG..(ACT,HBDG,HBDWB)202210

48231BSPRING, COIL, REAR LH

main48231-12G20iZRE212..SED..(GX,S)201908

main48231-12G30iZRE212..WG..(GX,S);ZWE211..SED..(HBDGX,HBDS)201908

main48231-12G40iZWE214..SED..(HBDGX,HBDS)201908

main48231-12G50iZWE214..WG..(HBDGX,HBDS)201909

main48231-12G60iNRE210,ZRE212..SED..WB; ZRE212..SED..S201908

main48231-12G70iZRE212..WG..S;ZWE211..SED..HBDS; ZWE211..SED..HBDWB;NRE210,ZRE212..WG..WB201908

main48231-12G80iMZEA12,ZWE211..WG..(G,HBDWB); ZWE211..WG..HBDS201909

main48231-12G90iZWE214..SED..HBDS; ZWE214..SED..HBDWB201908

main48231-12J00iZWE211..WG..(HBDGX,HBDS)201909

main48231-12J70iZWE214..WG..HBDS; ZWE214..WG..HBDWB201909

main48231-12K00iMZEA17..SED202210-202504

main48231-12K10iZWE219..SED..(ACT,HBDG,HBDWB)202210

main48231-12K20iZWE219..SED..HBDX202210

main48231-12K30iZWE215..SED..(ACT,HBDG,HBDWB)202210

main48231-12K40iZWE215..SED..HBDX202210

main48231-12M00iZWE219..WG..HBDX202210

main48231-12M10iZWE215..WG..(ACT,HBDG,HBDWB)202210

main48231-12M20iZWE215..WG..HBDX202210

main48231-12M30iMZEA17..WG202210-202504

main48231-12M40iZWE219..WG..(ACT,HBDG,HBDWB)202210

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-47020iZWE215,219202210

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-16030iMZEA17202210-202504

main48258-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-16030iMZEA17202210-202504

main48258-47010iZWE215,219202210

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-47020iMZEA12,NRE210,ZRE212,ZWE211,214201908

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-47011×2iMZEA12,NRE210,ZRE212,ZWE211,214201908

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-12Q60iMZEA17..WG202210-202504

main48530-12R10iMZEA17..SED202210-202504

main48530-80A12iNRE210,ZRE212..SED..WB; ZRE212..SED..S201908

main48530-80A13iZWE211..SED..HBDS; ZWE211..SED..HBDWB201908

main48530-80A14iNRE210,ZRE212..WG..WB; ZRE212..WG..S201909

main48530-80A15iZRE212..SED..(GX,S)201908

main48530-80A16iZWE211..SED..(HBDGX,HBDS)201908

main48530-80A17iZWE211..WG..HBDS; ZWE211..WG..HBDWB201909

main48530-80A18iZWE214..SED..HBDS; ZWE214..SED..HBDWB201908

main48530-80A19iZWE214..SED..(HBDGX,HBDS)201908

main48530-80A20iZRE212..WG..(GX,S)201909

main48530-80A23iZWE211..WG..(HBDGX,HBDS)201909

main48530-80A24iZWE214..WG..HBDS; ZWE214..WG..HBDWB201909

main48530-80A25iZWE214..WG..(HBDGX,HBDS)201909

main48530-80B03iMZEA12202104

main48530-80B32iZWE219..SED..(HBDG,HBDWB)202210

main48530-80B33iZWE219..SED..HBDX202210

main48530-80B34iZWE215..SED..(ACT,HBDG,HBDWB)202210

main48530-80B35iZWE215..SED..HBDX202210

main48530-80B37iZWE219..WG..(HBDG,HBDWB)202210

main48530-80B38iZWE219..WG..HBDX202210

main48530-80B39iZWE215..WG..(ACT,HBDG,HBDWB)202210

main48530-80B40iZWE215..WG..HBDX202210

main48530-80B69iZWE219..ACT202404

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-12Q60iMZEA17..WG202210-202504

main48530-12R10iMZEA17..SED202210-202504

main48530-80A12iNRE210,ZRE212..SED..WB; ZRE212..SED..S201908

main48530-80A13iZWE211..SED..HBDS; ZWE211..SED..HBDWB201908

main48530-80A14iNRE210,ZRE212..WG..WB; ZRE212..WG..S201909

main48530-80A15iZRE212..SED..(GX,S)201908

main48530-80A16iZWE211..SED..(HBDGX,HBDS)201908

main48530-80A17iMZEA12201909-202104

main48530-80A18iZWE214..SED..HBDS; ZWE214..SED..HBDWB201908

main48530-80A19iZWE214..SED..(HBDGX,HBDS)201908

main48530-80A20iZRE212..WG..(GX,S)201909

main48530-80A23iZWE211..WG..(HBDGX,HBDS)201909

main48530-80A24iZWE214..WG..HBDS; ZWE214..WG..HBDWB201909

main48530-80A25iZWE214..WG..(HBDGX,HBDS)201909

main48530-80B03iMZEA12202104

main48530-80B32iZWE219..SED..(HBDG,HBDWB)202210

main48530-80B33iZWE219..SED..HBDX202210

main48530-80B34iZWE215..SED..(ACT,HBDG,HBDWB)202210

main48530-80B35iZWE215..SED..HBDX202210

main48530-80B37iZWE219..WG..(HBDG,HBDWB)202210

main48530-80B38iZWE219..WG..HBDX202210

main48530-80B39iZWE215..WG..(ACT,HBDG,HBDWB)202210

main48530-80B40iZWE215..WG..HBDX202210

main48530-80B69iZWE219..ACT202404

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908

48553ECAP

main48553-52030×2iZRE212,ZWE211,214..GX,HBDGX,HBDS,S201908-202107

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908

48710FBOLT(FOR REAR TRAILING ARM)

main90105-14195×2iZWE215,219202210

main90105-14197×4iZWE215,219202210

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-16011iMZEA17202210-202504

main48717-47020iMZEA12,NRE210,ZRE212,ZWE211,214201908

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-16010iMZEA17202210-202504

main48727-47020iMZEA12,NRE210,ZRE212,ZWE211,214201908

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-12426iZWE215,219202210

48737COVER, REAR SUSPENSION ARM, RH

main48753-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908

48738COVER, REAR SUSPENSION ARM, LH

main48753-47020iMZEA12,NRE210,ZRE212,ZWE211,214201908

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-12426iMZEA12,NRE210,ZRE212,ZWE211,214201908

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-47010iZWE215,219202210

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-16130iMZEA17202210-202504

main48750-76010iZWE215,219202210

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main94130-61200iMZEA12,NRE210,ZRE212,ZWE211,214201908

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-76010iMZEA12,NRE210,ZRE212,ZWE211,214201908

main48760-16010iMZEA17202210-202504

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main94130-61200iMZEA12,NRE210,ZRE212,ZWE211,214201908

48760EARM ASSY, TRAILING, REAR RH

main48760-47010iZWE215,219202210

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908

48780EARM ASSY, TRAILING, REAR LH

main48780-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908

48830ANUT(FOR REAR STABILIZER LINK)

main94151-21241×4iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDWB,WB; ZRE212,ZWE211,214..GX,HBDGX,HBDS,S; ZRE212,ZWE211,214..HBDS,S201908

9010910181

main90109-10181

9011912436

main90119-12436

9011912444

main90119-12444

9017812009

main90178-12009

9017814017

main90178-14017

9017816007

main90178-16007

9020116039

main90201-16039

91672K1240

main91672-K1240

9415121441

main94151-21441

44 parts on this diagram · 5 diagrams in section
