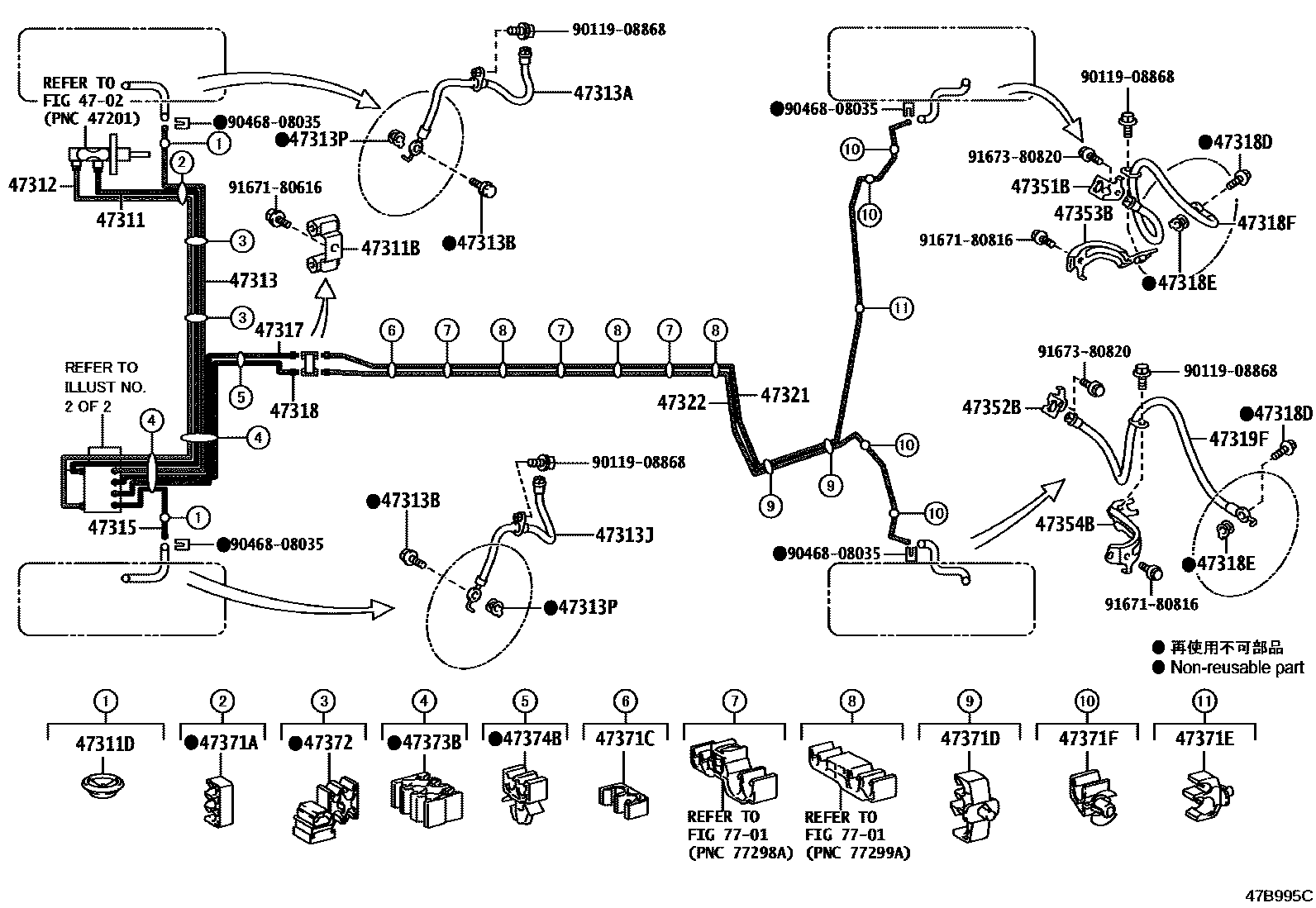

BRAKE TUBE & CLAMP

0001 1���������� 0002 1����������,������������������0003 1���������� 0004 1���������� 0005 1���������� 0006 1���������� 0007 1���������� 0008 1������������ 0009 1������������ 0010 1������������ 0011 1������������

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-12C70iMZEA12,NRE210,ZRE212201908

main47311-12C90iZWE211,214201908

main47311-12D40iZWE215,219202210

main47311-12D60iMZEA17202210-202504

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iMZEA12,NRE210,ZRE212,ZWE211,214201908

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037×2iMZEA12,NRE210,ZRE212,ZWE211,214201908

47312TUBE, FRONT BRAKE, NO.2

main47312-12800iMZEA12,NRE210,ZRE212201908

main47312-12820iZWE211,214201908

main47312-12870iZWE215,219202210

main47312-12890iMZEA17202210-202504

47313TUBE, FRONT BRAKE, NO.3

main47313-12A60iMZEA12,NRE210,ZRE212201908

main47313-12A70iZWE211,214201908

main47313-12B00iZWE215,219202210

main47313-12B10iMZEA17202210-202504

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02H46iMZEA12,NRE210,ZRE212,ZWE21#201908-202210

main90947-02K97iMZEA12,NRE210,ZRE212,ZWE211,214; ZWE215,219202211

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iZWE215,219202210

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02H47iMZEA17,ZWE215,219202210-202211

main90947-02K98iMZEA12,NRE210,ZRE212,ZWE211,214; ZWE215,219202211

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iMZEA12,NRE210,ZRE212,ZWE211,214201908

47315TUBE, FRONT BRAKE, NO.5

main47315-12650iMZEA12,NRE210,ZRE212201908

main47315-12660iZWE211,214201908

main47315-12700iZWE215,219202210

main47315-12710iMZEA17202210-202504

47317TUBE, FRONT BRAKE, NO.7

main47317-12630iMZEA12,NRE210,ZRE212201908

main47317-12640iZWE211,214201908

main47317-12670iZWE215,219202210

main47317-12680iMZEA17202210-202504

47318TUBE, FRONT BRAKE, NO.8

main47318-12760iMZEA12,NRE210,ZRE212201908

main47318-12770iZWE211,214201908

main47318-12800iZWE215,219202210

main47318-12810iMZEA17202210-202504

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iMZEA17202210-202504

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iMZEA12,NRE210,ZRE212,ZWE211,214201908

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H95supersedes 90947-02H48iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDGX,HBDS,HBDWB,S,WB; ZRE212..GX201908

main90947-02J99iMZEA17202210-202504

main90947-02L64iZWE215,219202410

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H98supersedes 90947-02H48iZWE215,219202210-202410

main90947-02K00iMZEA17202210-202504

main90947-02L65iZWE215,219202410

47321TUBE, REAR BRAKE, NO.1

main47321-12410iZWE215,219202210-202410

main47321-12480iZWE215,219202410

main47321-16190iMZEA17202210-202504

47322TUBE, REAR BRAKE, NO.2

main47322-12570iZWE215,219202210-202410

main47322-12650iZWE215,219202410

main47322-16190iMZEA17202210-202504

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-0A050iMZEA17..X202210-202504

main47351-16110iMZEA17..G,WB202210-202504

main47351-47030iZWE215,219202210

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-0A050iMZEA17..X202210-202504

main47352-16110iMZEA17..G,WB202210-202504

main47352-47030iMZEA12,NRE210,ZRE212,ZWE211,214201908

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-12270supersedes 47351-47040iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDGX,HBDS,HBDWB,S,WB; ZRE212..GX201908

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-12240supersedes 47352-47040iZWE215,219202210

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01D91×2iZWE215,219202210

main90949-01E30×2iMZEA17202210-202504

main90949-01E43iMZEA12,NRE210,ZRE212201908

47371CCLAMP, BRAKE TUBE, NO.7

main77286-12230×2iZWE215,219202210

main90464-00904iMZEA12,NRE210,ZRE212,ZWE211,214201908-202205

main90949-01E01iMZEA17202210-202504

47371DCLAMP, BRAKE TUBE, NO.8

main77286-12230×2iMZEA12,NRE210,ZRE212,ZWE211,214201908

main90949-01E10×4iZWE215,219202210

47371ECLAMP, BRAKE TUBE, NO.9

main77285-12170iMZEA12,NRE210,ZRE212,ZWE211,214201908

main90949-01E81iMZEA17202210-202504

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01E10×4iMZEA12,NRE210,ZRE212,ZWE211,214201908

main90949-01E81iMZEA17202210-202504

47372CLAMP, BRAKE TUBE, NO.2

main90949-01E30×2iMZEA12,NRE210,ZRE212201908

main90949-01E34iMZEA17202210-202504

main90949-01E40×2iZWE215,219202210

main90949-01E49×2iZWE211,214201908

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E15iZWE211,214201908

main90949-01E40iMZEA17202210-202504

main90949-01E43×2iZWE215,219202210

main90949-01E44×2iMZEA12,NRE210,ZRE212201908

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E17iZWE211,214201908

main90949-01E34iMZEA12,NRE210,ZRE212201908

main90949-01E43iMZEA17202210-202504

main90949-01E79×2iZWE215,219202210

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908868

main90119-08868

9046808035

main90468-08035

9167180616

main91671-80616

9167180816

main91671-80816

9167380820

main91673-80820

37 parts on this diagram · 11 diagrams in section
