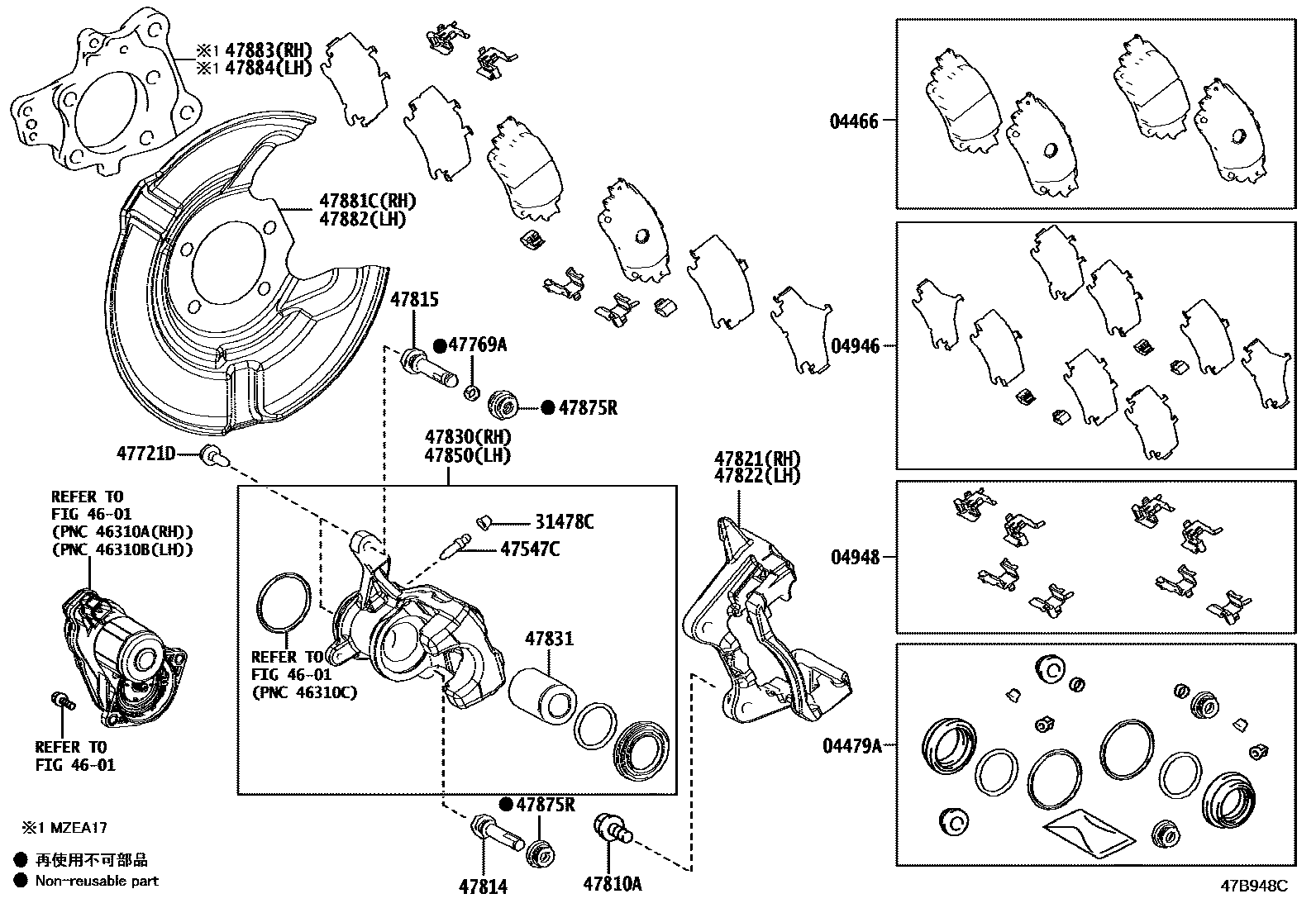

REAR DISC BRAKE CALIPER & DUST COVER

0001 1�������������������� 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-12161supersedes 04466-47110iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDGX,HBDS,HBDWB,S,WB; ZRE212..GX201908

main04466-47110iMZEA17..X202210-202504

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-10091supersedes 04479-12260iMZEA17..G,WB202210-202504

main04479-12260iMZEA17..X202210-202504

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-12130supersedes 04946-47070iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDGX,HBDS,HBDWB,S,WB; ZRE212..GX201908

main04946-47070iMZEA17..X202210-202504

04948FITTING KIT, DISC BRAKE, REAR

main04948-12060iMZEA17..X202210-202504

main04948-12071supersedes 04948-12060iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDGX,HBDS,HBDWB,S,WB; ZRE212..GX201908

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2supersedes 31478-52010iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDGX,HBDS,HBDWB,S,WB; ZRE212..GX201908

main31478-52010×2iMZEA17..X202210-202504

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2supersedes 47847-52050iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDGX,HBDS,HBDWB,S,WB; ZRE212..GX201908

main47847-52050×2iMZEA17..X202210-202504

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA102×4iMZEA17..X202210-202504

main90015-AA603×4supersedes 90015-AA102iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDGX,HBDS,HBDWB,S,WB; ZRE212..GX201908

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010×2iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDGX,HBDS,HBDWB,S,WB; ZRE212..GX201908

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174×4iMZEA12,NRE210,ZRE212,ZWE211,214201908

main90105-12208×4iMZEA17202210-202504

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010×2iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDGX,HBDS,HBDWB,S,WB; ZRE212..GX201908

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010×2iMZEA17..G,WB202210-202504

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12280supersedes 47821-47110iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDGX,HBDS,HBDWB,S,WB; ZRE212..GX201908

main47821-47110iMZEA17..X202210-202504

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-47110iMZEA17..X202210-202504

main47822-12280supersedes 47821-47110iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDGX,HBDS,HBDWB,S,WB; ZRE212..GX201908

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-12280supersedes 47830-47111iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDGX,HBDS,HBDWB,S,WB; ZRE212..GX201908

main47830-47111iMZEA17..X202210-202504

47831PISTON, REAR DISC BRAKE

main47831-10030×2supersedes 47831-52050iZWE215,219202210

main47831-52050×2iMZEA17..X202210-202504

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-12280supersedes 47850-47111iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDGX,HBDS,HBDWB,S,WB; ZRE212..GX201908

main47850-47111iMZEA17..X202210-202504

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150×4iMZEA17..X202210-202504

main47875-33270×4supersedes 47875-12150iZWE215,219202210

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-12130supersedes 47881-47010iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDGX,HBDS,HBDWB,S,WB; ZRE212..GX201908

main47881-12140iMZEA17..G,WB202210-202504

main47881-12150iMZEA17..X202210-202504

47882COVER, DISC BRAKE DUST, REAR LH

main47882-12130supersedes 47882-47010iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDGX,HBDS,HBDWB,S,WB; ZRE212..GX201908

main47882-12140iMZEA17..G,WB202210-202504

main47882-12150iMZEA17..X202210-202504

47883BRACKET, CALIPER SUPPORT, REAR RH

main47883-12040iMZEA17202210-202504

47884BRACKET, CALIPER SUPPORT, REAR LH

main47884-12040iMZEA17202210-202504

22 parts on this diagram · 2 diagrams in section
