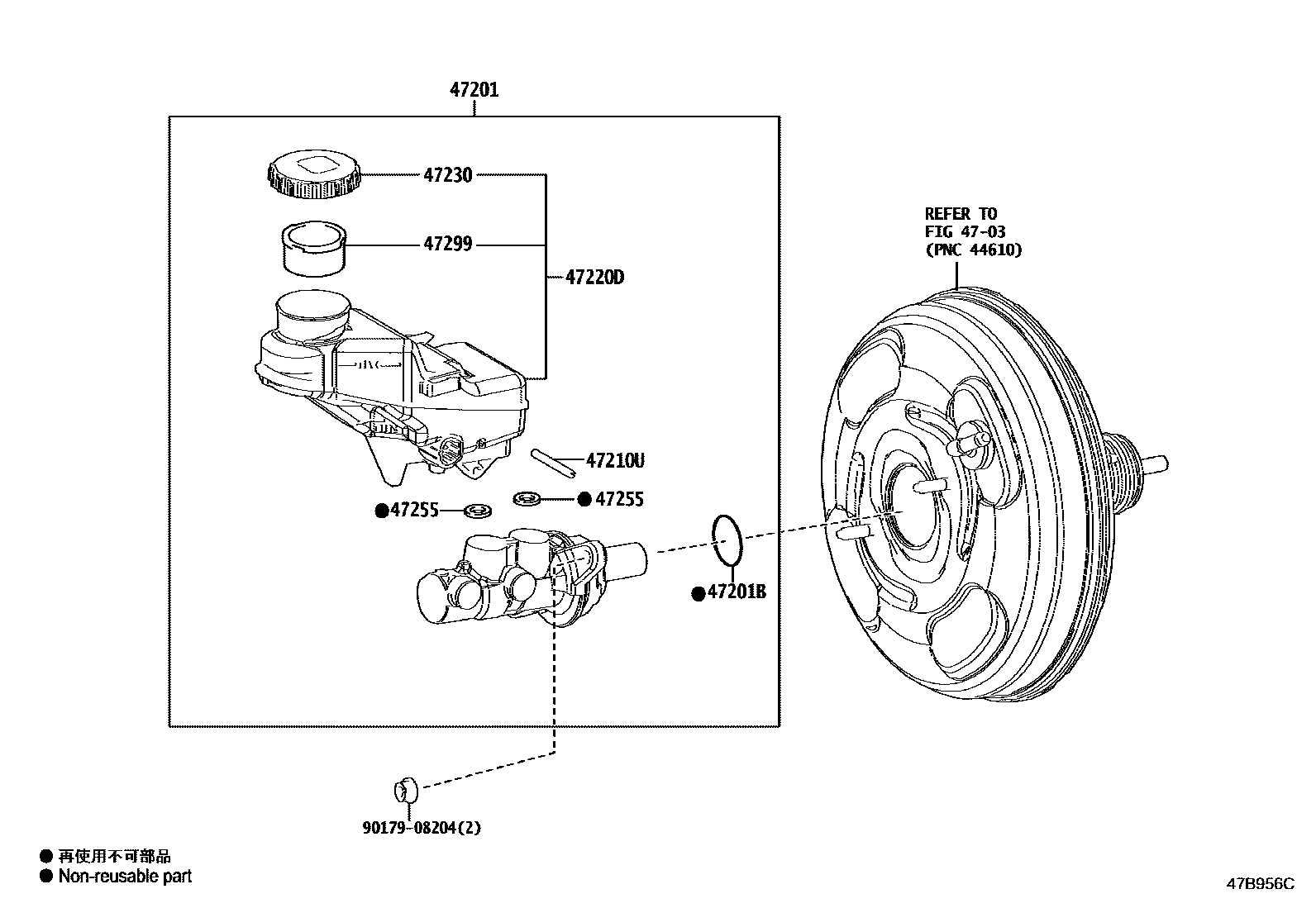

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-12C50iMZEA17202210-202504

main47201-12C60iNRE210201908

main47201-19095iZWE215,219202210

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iMZEA12,NRE210,ZRE212201908

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iMZEA17202210-202504

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-12350iMZEA17202210-202504

main47220-12360iNRE210201908

main47220-19015iZWE215,219202210

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33330iZWE21#202002-202006

main47230-47090iZWE211,214202006

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iZWE215,219202210

main90029-48001×2iMZEA12,NRE210,ZRE212201908

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMZEA12,NRE210,ZRE212201908

main47299-52110iZWE215,219202210

9017908204

main90179-08204

9 parts on this diagram · 3 diagrams in section
