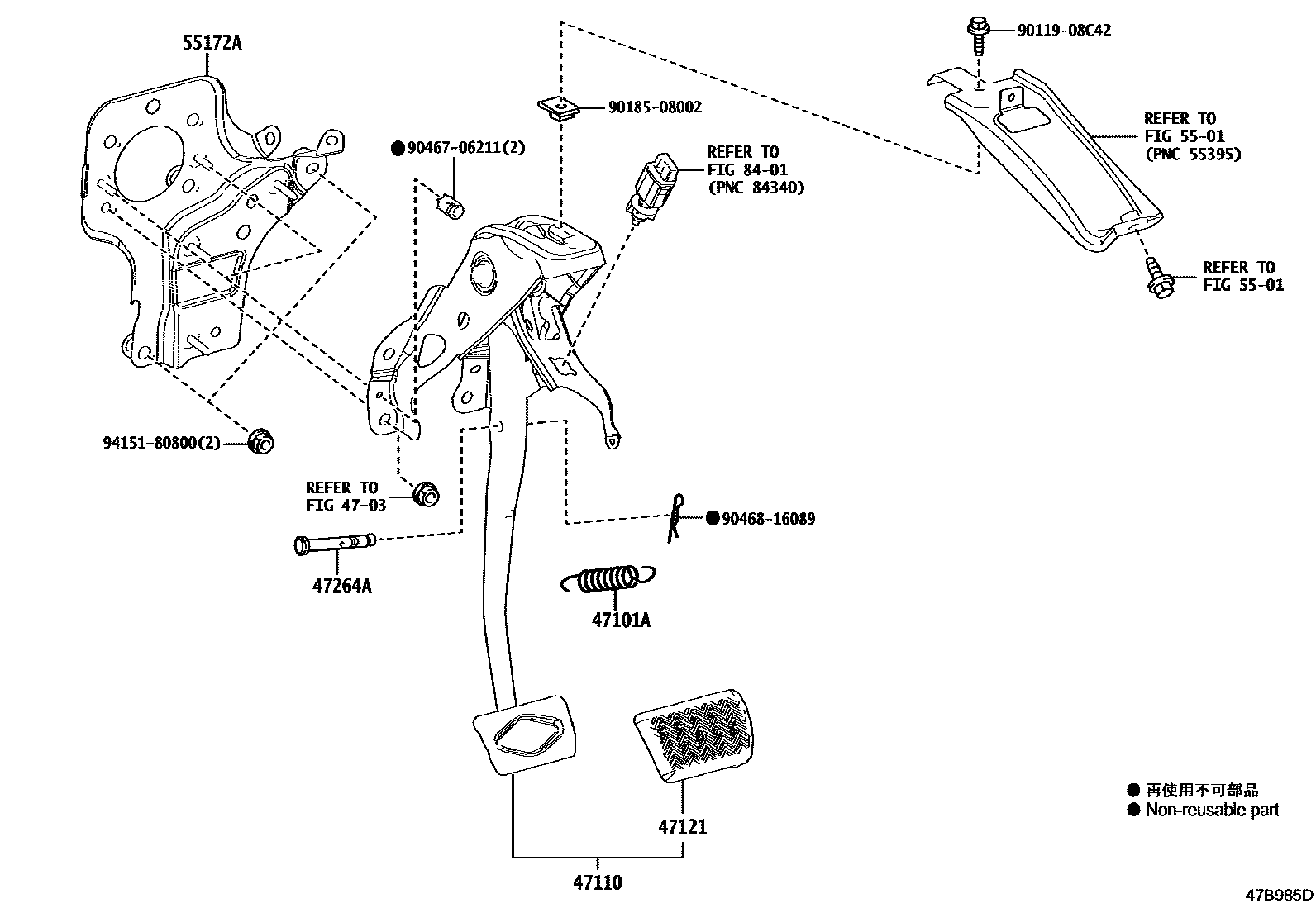

BRAKE PEDAL & BRACKET

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15009iZWE215,219201908

main90507-15010iMZEA17201908-202504

47110SUPPORT ASSY, BRAKE PEDAL

main47110-12420iMZEA17201908-202401

main47110-12421iMZEA17202402-202504

main47110-12430iNRE210201908

main47110-12510iZWE215,219..HBDG,HBDWB,HBDX202210

main47110-12520iZWE215,219..ACT202404

main47110-47070iZWE211,214201908-202206

main47110-76090iZWE211,214202207

47121PAD, BRAKE PEDAL

main47121-12040iNRE210201908

main47121-12050iZWE215,219..ACT202404

main47121-16020iMZEA17202207-202504

main47121-47010iMZEA17201908-202402

47264APIN(FOR PUSH ROD)

main90249-08221iMZEA12,NRE210,ZRE212201908-202504

main90249-08309iZWE215,219201908

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55172ABASE, BRAKE PEDAL SUPPORT

main55172-12170iZWE215,219201908-202504

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

9018508002

main90185-08002

9046706211

main90467-06211

9046816089

main90468-16089

9415180800

main94151-80800

13 parts on this diagram · 2 diagrams in section
