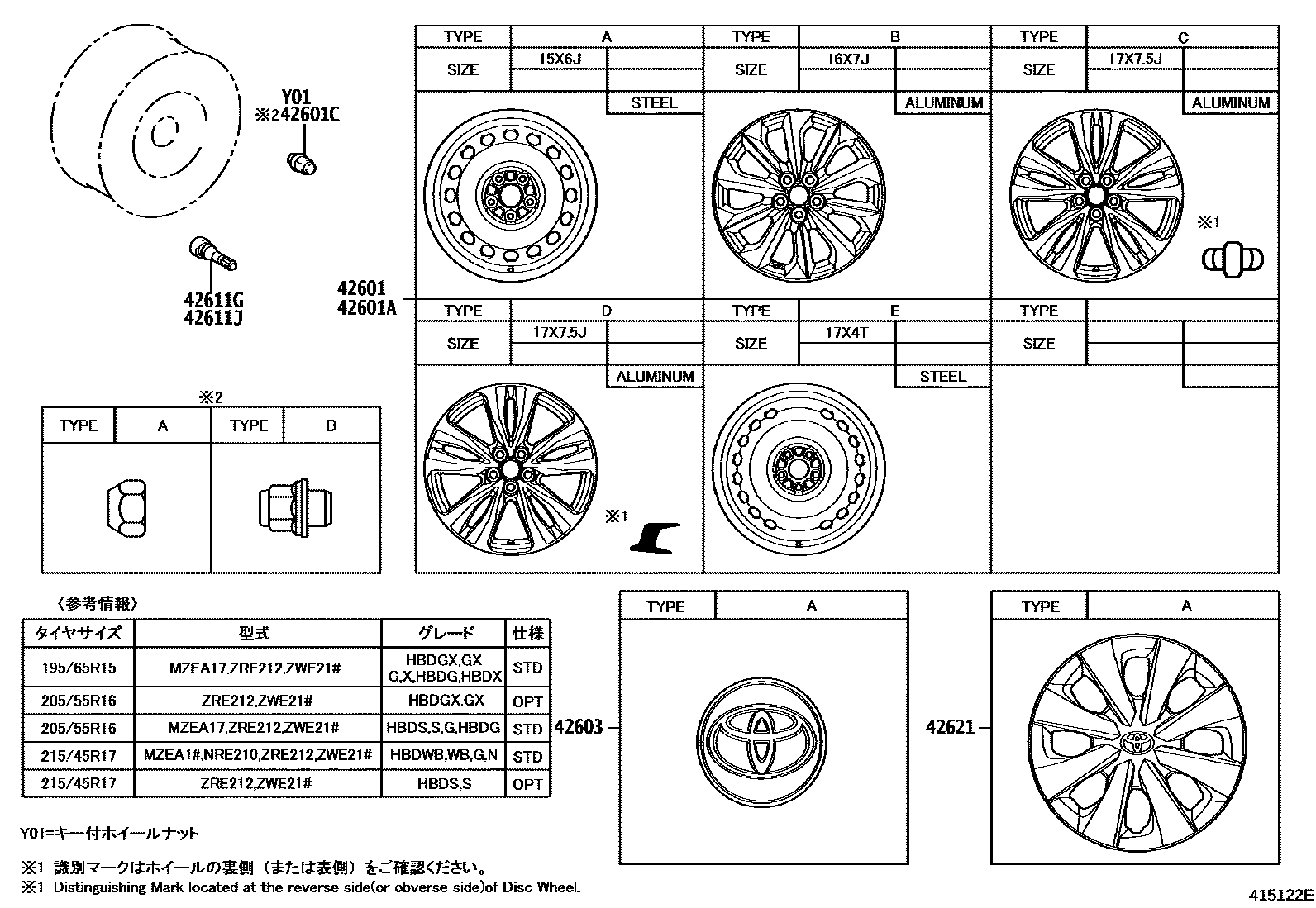

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-12E40×4iMZEA17..G,X202210-202504

main42611-12E50×4supersedes 42611-12E40iZRE212,ZWE211,214..GX,HBDGX; ZRE212,ZWE211,214..HBDS,S201908

main42611-12E80×4iZWE215,219..HBDWB202210

main42611-12E90×4iNRE210,ZRE212,ZWE211,214..HBDWB,WB201908

main42611-12J10×4iZWE215,219..ACT202404

main42611-12E60×4iZRE212,ZWE211,214..HBDS,S201908-202010

main42611-12E70×4iZRE212,ZWE211,214..HBDS,S201908-202010

main42611-12F50×4iZRE212,ZWE211,214..HBDS,S202010

main42611-12F60×4iZRE212,ZWE211,214..HBDS,S202010

main42611-12G30×4supersedes 42611-12E70iMZEA12202104-202106

main42611-12G90×4iZWE211,214..HBDWB202111

42601AWHEEL, DISC (FOR SPARE)

main42611-47631iMZEA12,NRE210,ZRE212,ZWE211201908

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iMZEA17..G,X202210-202504

main90942-01033×20supersedes 90942-01007iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDS,HBDWB,S,WB; ZRE212,ZWE211,214..GX,HBDGX201908

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-52170×4iZWE215,219..ACT,HBDWB202210

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iMZEA12,NRE210,ZRE212,ZWE211,214201908

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iMZEA12,NRE210,ZRE212,ZWE211201908

42621CAP, WHEEL

main42602-12840×4iZRE212,ZWE211,214..GX,HBDGX201908

7 parts on this diagram · 2 diagrams in section
