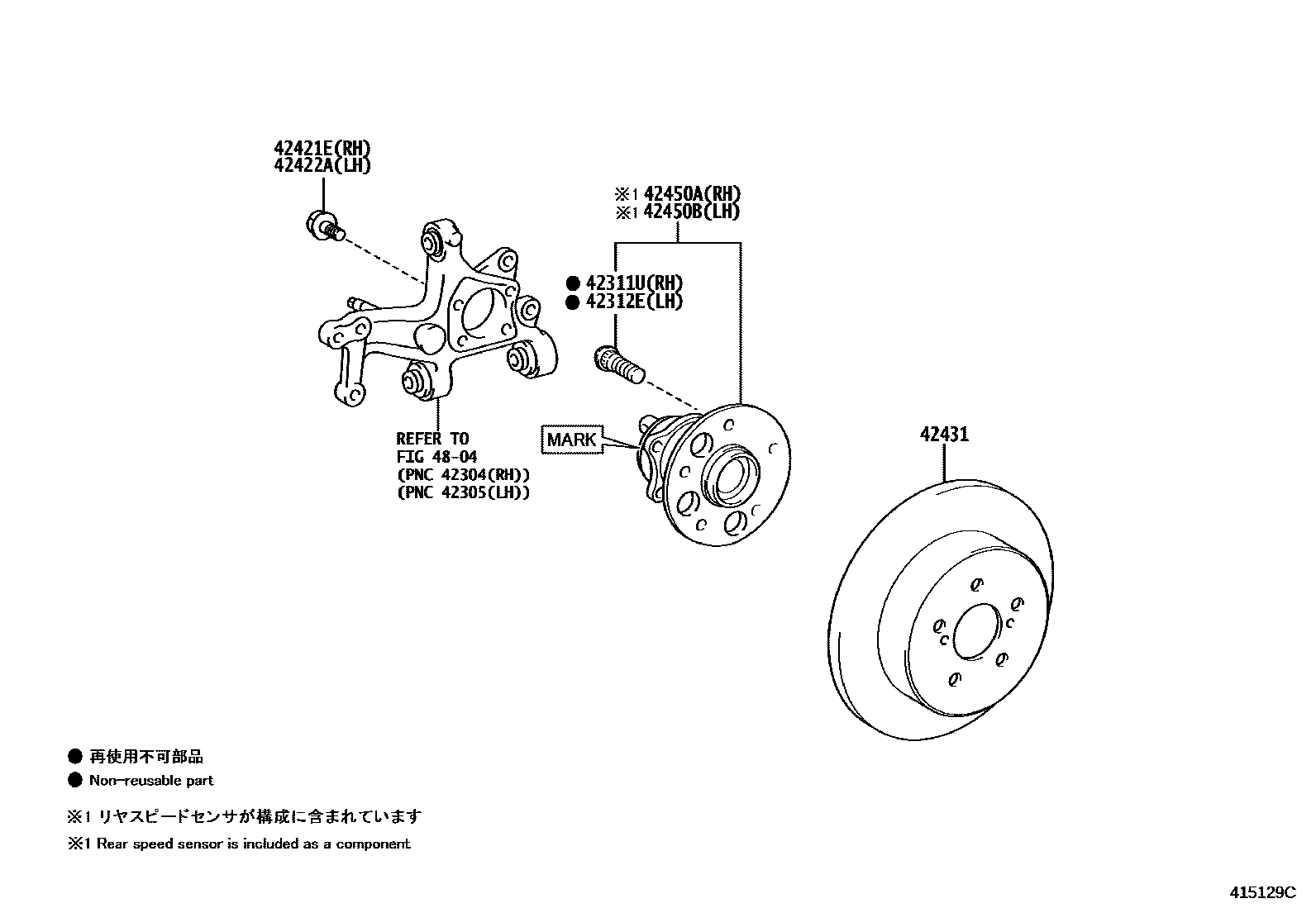

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iMZEA12,NRE210,ZRE212,ZWE211,214201908

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iMZEA12,NRE210,ZRE212,ZWE211,214201908

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12406×4iMZEA12,NRE210,ZRE212,ZWE211,214201908

main90105-12408×4iMZEA17202210-202504

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12406×4iZWE215,219202210

main90105-12408×4iMZEA17202210-202504

42431DISC, REAR

main42431-12270×2supersedes 42431-12310iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDGX,HBDS,HBDWB,S,WB; ZRE212..GX201908

main42431-12310×2iMZEA17..X202210-202504

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-47030iZWE215202210

main42450-12210iMZEA12,NRE210,ZRE212,ZWE211201911-202212

main42450-12211iMZEA12,NRE210,ZRE212,ZWE211; ZWE219202301

main42450-12220iNRE210,ZRE212,ZWE211201908-201911

main42450-12230iMZEA17202210-202211

main42450-12231iMZEA17202212-202504

main42450-76020iMZEA12,NRE210,ZRE212,ZWE211201908-202212

main42450-76021iMZEA12,NRE210,ZRE212,ZWE211202301

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-47030iZWE214201908

main42450-12210iZWE219202210-202212

main42450-12211iMZEA12,NRE210,ZRE212,ZWE211; ZWE219202301

main42450-12220iNRE210,ZRE212,ZWE211201908-201911

main42450-12230iMZEA17202210-202211

main42450-12231iMZEA17202212-202504

main42450-76020iZWE219202210-202301

main42450-76021iMZEA12,NRE210,ZRE212,ZWE211202301

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8 parts on this diagram · 4 diagrams in section
