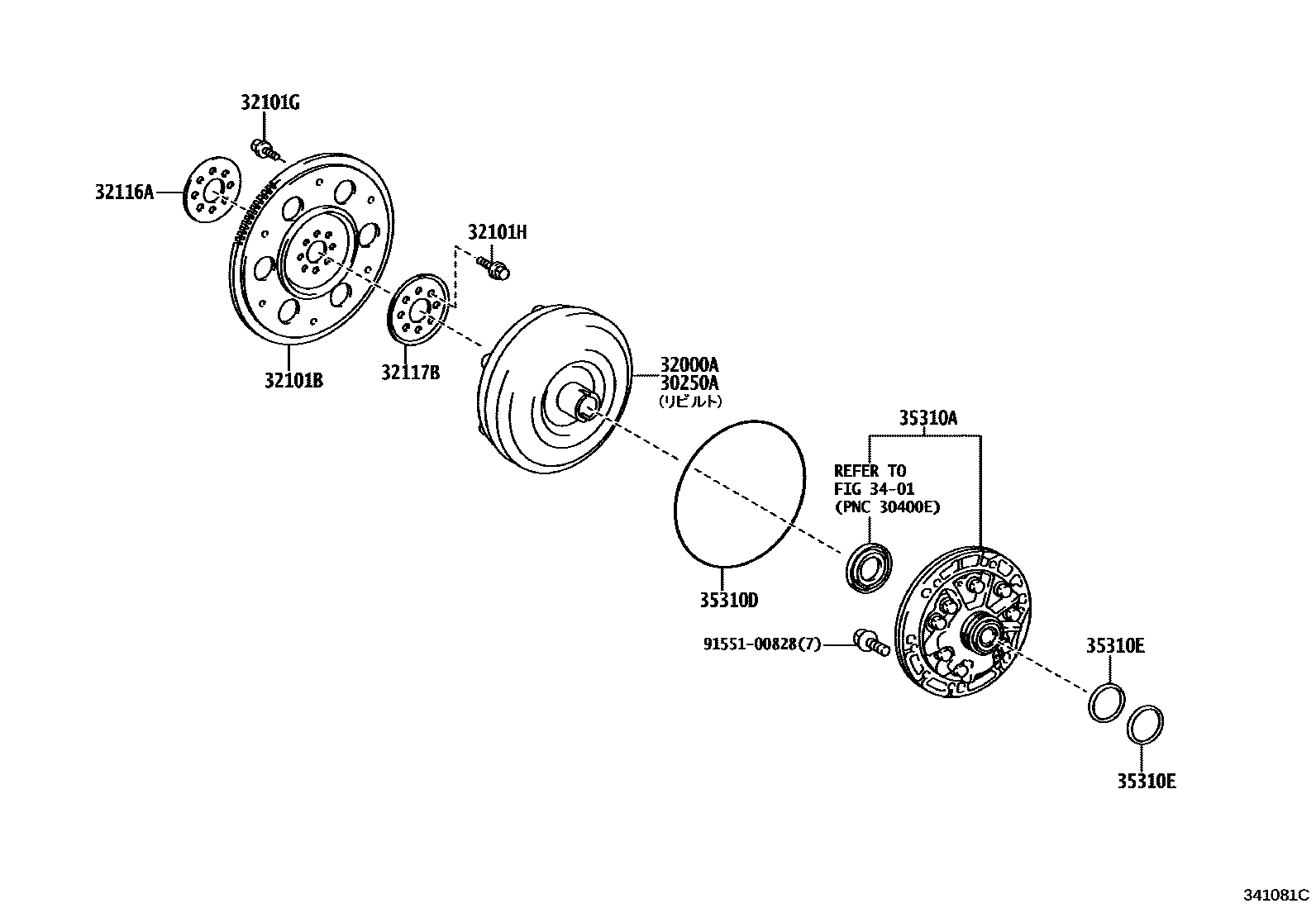

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K313 0002 1K120 0003 1K320

30250ACONVERTER ASSY, TORQUE, REBUILT

main30250-12460iMZEA12202006

main30250-12490iZRE212201908

main30250-K0010iMZEA17202210-202504

32000ACONVERTER ASSY, TORQUE

main32000-12460iMZEA12202006

main32000-12490iZRE212201908

main32000-12520iMZEA12202006

main32000-K0010iMZEA17202210-202504

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12100iZRE212201908

main32101-12120iMZEA12202006

main32101-52100iMZEA17202210-202504

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iMZEA17202210-202504

main90109-09001iMZEA12202006

main90119-08498×5iZRE212201908

main90119-09025×5iMZEA12202006

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iZRE212201908

main90105-12404×8iMZEA12202006

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZRE212201908

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZRE212201908

main32117-33010iMZEA12202006

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35310APUMP ASSY, FRONT OIL

main35300-12020iMZEA17202210-202504

main35310-12160iZRE212201908

main35310-12200iMZEA12202006-202203

main35310-28050iMZEA12202106

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99202iZRE212201908

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12060×2iMZEA12202006

main35617-12070×2iMZEA12202006

main35617-12080×2iMZEA17202210-202504

main35617-52060×2iZRE212201908

9155100828

main91551-00828

12 parts on this diagram · 3 diagrams in section
