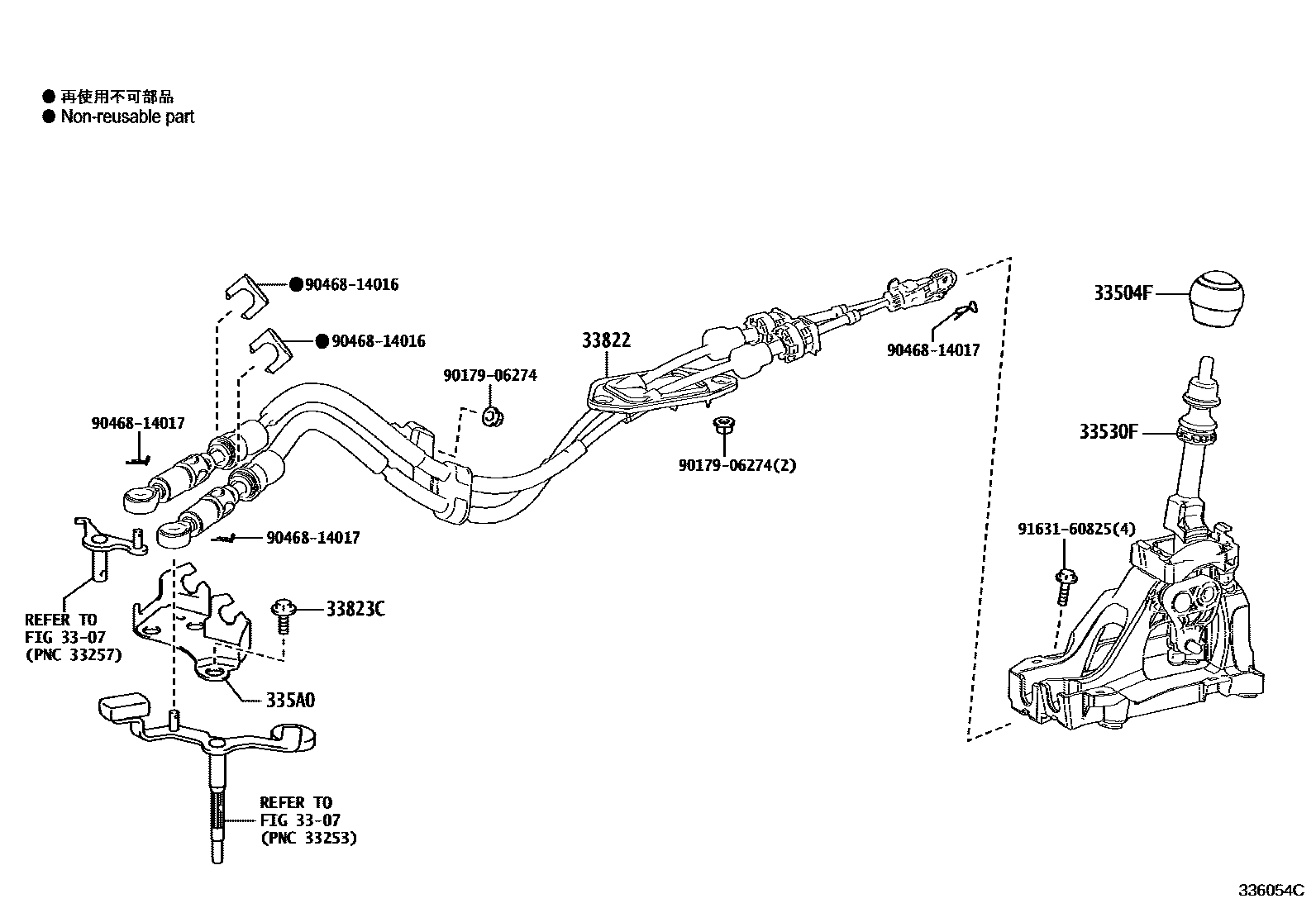

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

3307

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12750-C0iNRE210201908

BLACK,TRIM2#

sub33504-12750

main33504-12800-C0iMZEA12,ZRE212,ZWE211,214..G,HBDS,HBDWB,S,WB201908-202504

BLACK,TRIM2#

main33504-33170-C0iMZEA17..X201908-202504

BLACK,TRIM2#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-12C50iNRE210201908

335A0BRACKET ASSY, CONTROL CABLE

main335A0-0D010iNRE210201908

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33820-12J30iMZEA12202006

main33820-12J40iNRE210201908

main33820-12J50iZRE212201908

main33820-12J60iZWE211,214201908

main33820-12K00iZWE215,219202210

main33820-12K10iMZEA17202210-202504

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-10030iZWE211,214201908

main33823-12310iMZEA12202006

main33823-12340iZRE212201908

main33823-12360iZWE215,219202210

main33823-K0040iMZEA17202210-202504

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iZWE215,219201908-202504

main90119-08C60iNRE210201908

main90119-W0255iNRE210201908

main91671-80820iMZEA12,ZRE212201908

9017906274

main90179-06274

9046814016

main90468-14016

9046814017

main90468-14017

9163160825

main91631-60825

11 parts on this diagram · 5 diagrams in section
