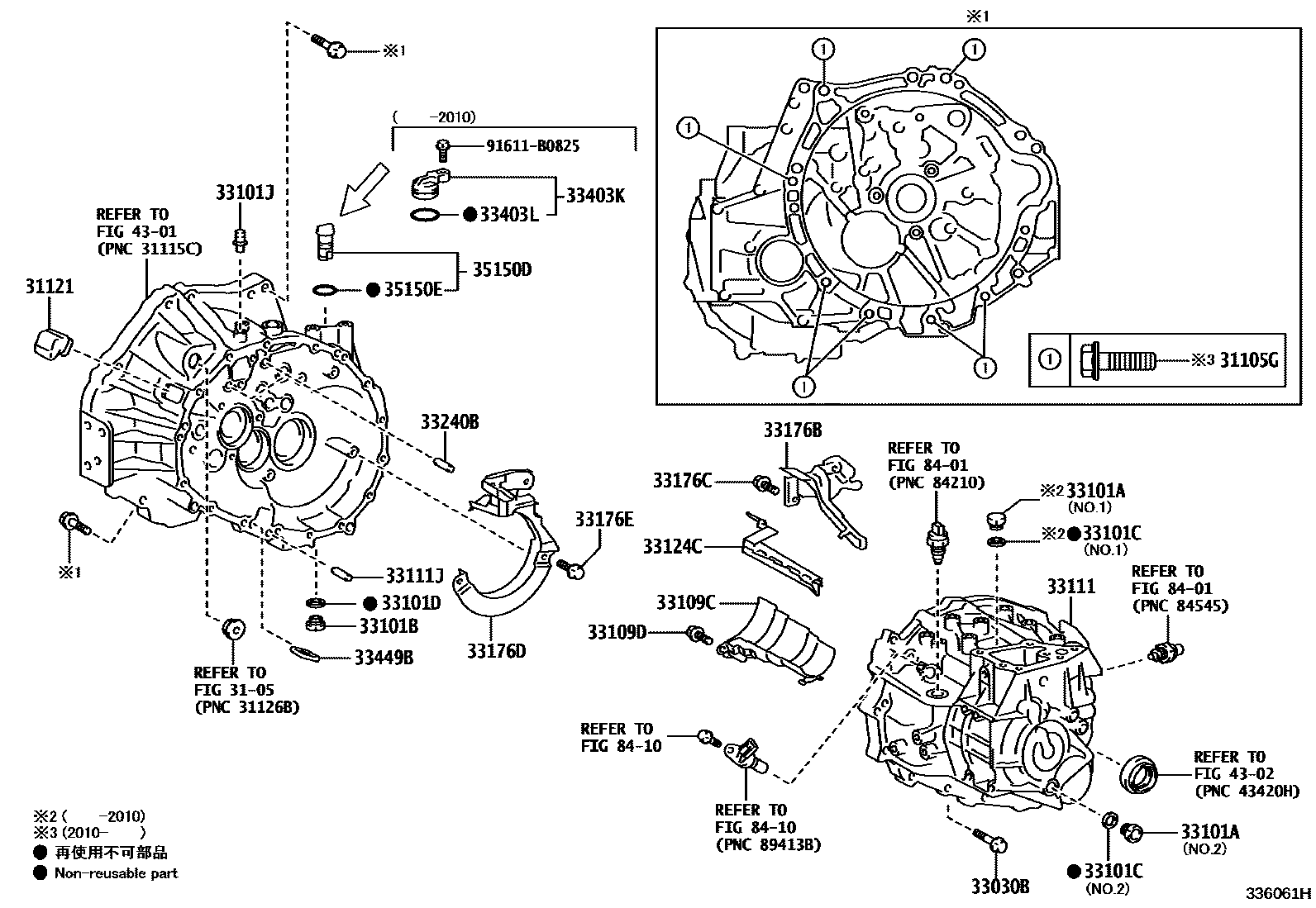

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
3105
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
31121COVER, CLUTCH HOUSING, NO.1
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101BPLUG(FOR MANUAL TRANSMISSION DRAIN)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33101DGASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)
33101JPLUG, BREATHER
33109CSEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL
33109DBOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33176BSEPARATOR, TRANSMISSION OIL(MTM)
33176DSEPARATOR, TRANSMISSION OIL, NO.2(MTM)
33176EBOLT(FOR TRANSMISSION OIL SEPARATOR NO.2)
33240BPIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403LRING, O
33449BMAGNET, TRANSMISSION
35150DPLUG ASSY, TRANSMISSION CASE
35150ERING, O (FOR TRANSMISSION CASE PLUG)
4301
4302
8401
8410
91611B0825
main91611-B0825
29 parts on this diagram · 1 diagram in section
