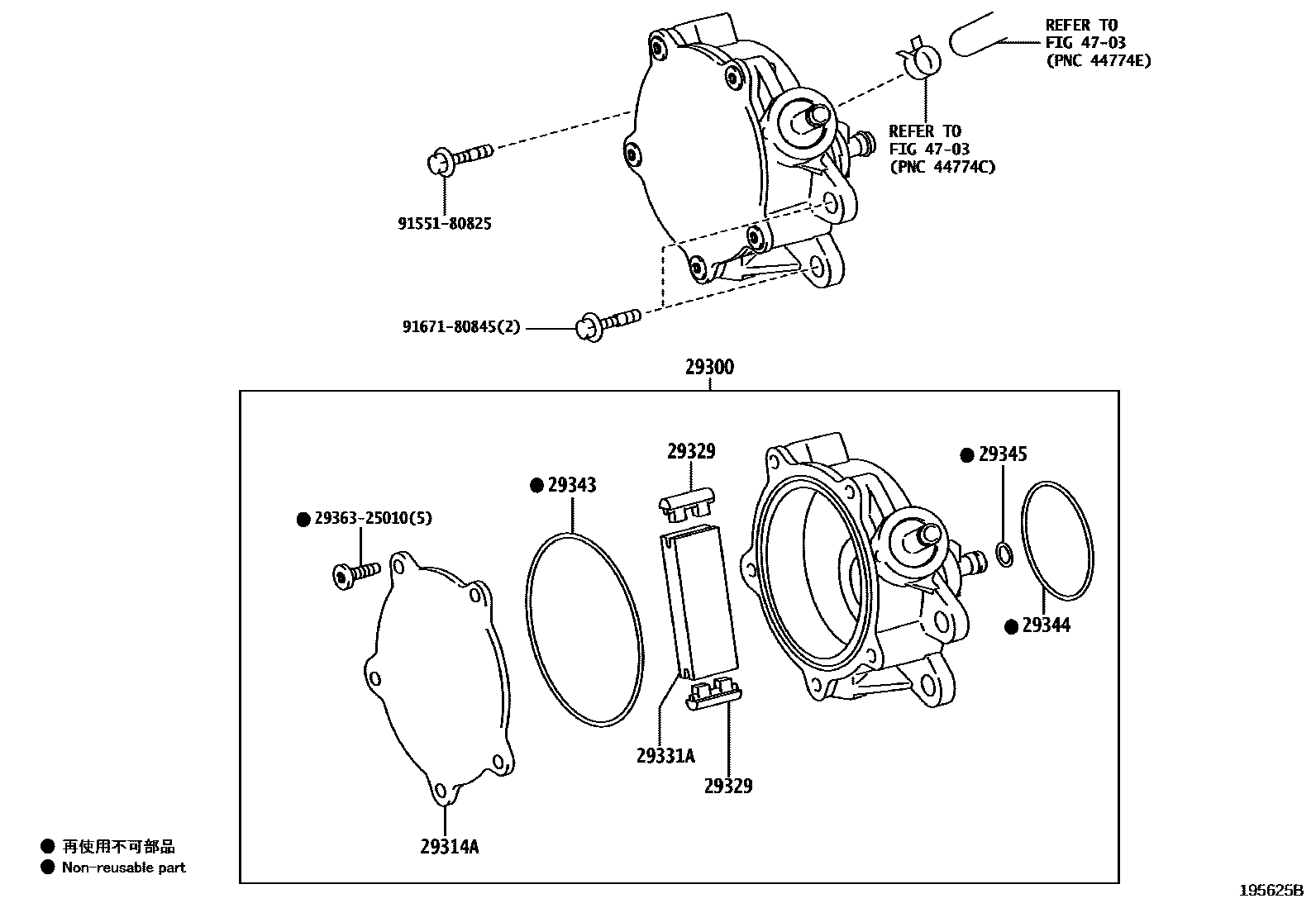

VACUUM PUMP

0001 1 0002 1 0003 1

29300PUMP ASSY, VACUUM

main29300-24011iM15AFKS..MZEA17202210-202504

main29300-37011i2ZRFAE..ZRE212201908

main29300-47050i8NRFTS..NRE210201908

29314ACOVER, END

main29314-25010iM20AFKS..MZEA12202006

main29314-37011i2ZRFAE..ZRE212201908

main29314-47040i8NRFTS..NRE210201908

29329CAP, VACUUM PUMP VANE

main29329-24011×2iM20AFKS..MZEA12202006

main29329-37010×2i8NRFTS,2ZRFAE..NRE210,ZRE212201908

29331AVANE, VACUUM PUMP

main29331-24010iM20AFKS..MZEA12202006

main29331-37010i8NRFTS,2ZRFAE..NRE210,ZRE212201908

29343RING, O VACUUM PUMP, NO.1

main29343-22011i2ZRFAE..ZRE212201908

main29343-25010iM20AFKS..MZEA12202006

main29343-47040i8NRFTS..NRE210201908

29344RING, O VACUUM PUMP, NO.2

main29344-22011i8NRFTS,2ZRFAE..NRE210,ZRE212201908

29345RING, O VACUUM PUMP, NO.3

main29345-22011i8NRFTS,2ZRFAE..NRE210,ZRE212201908

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

9155180825

main91551-80825

9167180845

main91671-80845

11 parts on this diagram · 3 diagrams in section
