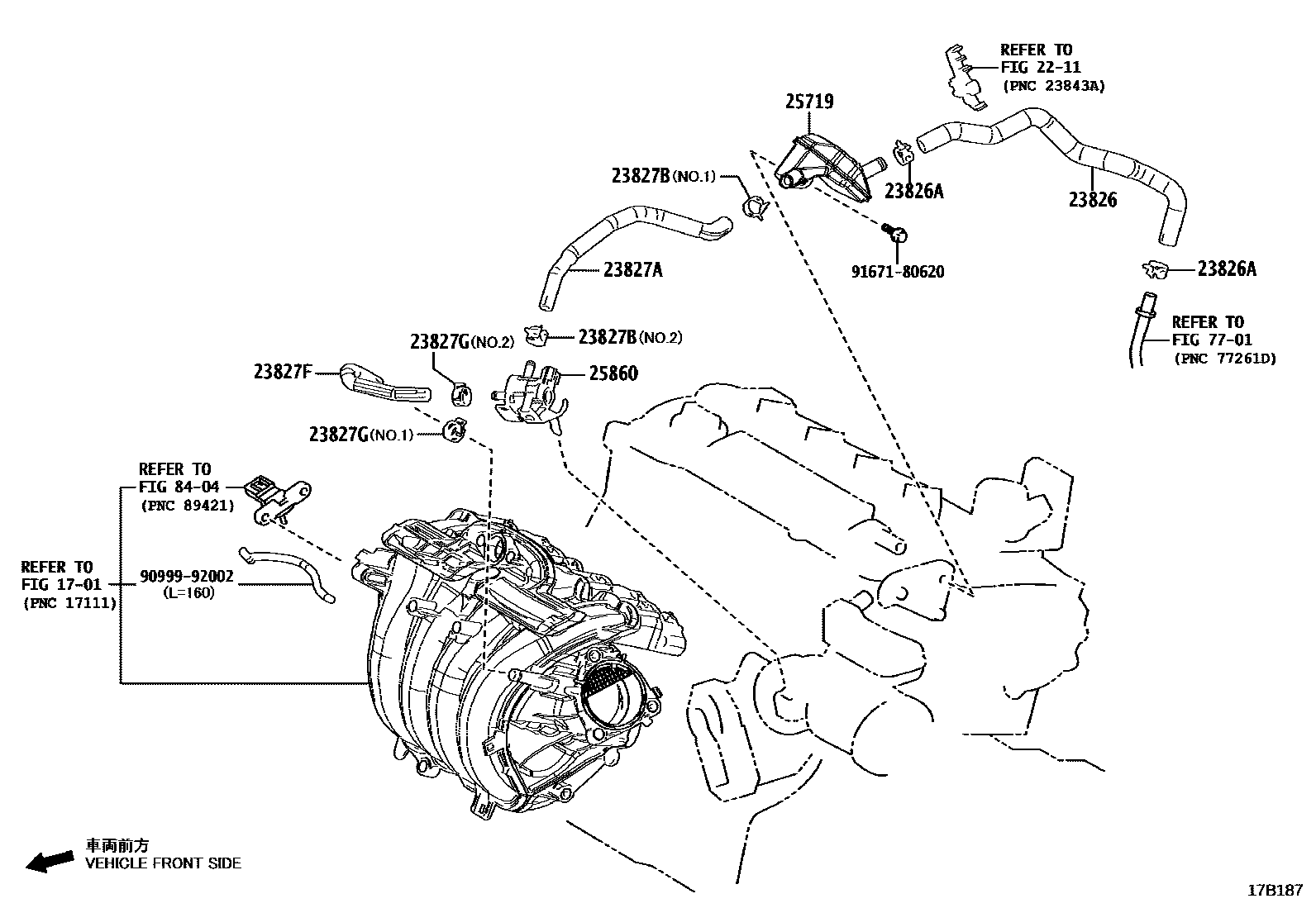

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1701MANIFOLD

→ Go to FIG 17-01

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-24030iM20AFKS..MZEA12202006

main23826-24091iM15AFKS..MZEA17202210-202504

main23826-37220i2ZRFAE..ZRE212202002

main23826-37250i2ZRFXE..ZWE211,214201908

main23826-37340i2ZRFXE..ZWE215,219202411

main23826-37360i2ZRFAE..ZRE212201908-202001

main23826-47090i8NRFTS..NRE210201908

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96136-41901iM15AFKS..MZEA17202210-202504

23827AHOSE, FUEL VAPOR FEED, NO.2

main23826-24100iM20AFKS..MZEA12202006

main23827-37070i2ZRFXE..ZWE211,214201908

main23827-47130i8NRFTS..NRE210201908

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96136-41801iM20AFKS..MZEA12202006

main96136-41901i8NRFTS..NRE210201908

main96138-41501iM20AFKS..MZEA12202006

23827FHOSE, FUEL VAPOR FEED, NO.3

main23826-24110iM20AFKS..MZEA12202006

23827GCLIP(FOR FUEL VAPOR FEED HOSE, NO.3)

main96136-41801iM20AFKS..MZEA12202006

main96136-42201i8NRFTS..NRE210201908

main96138-41501iM20AFKS..MZEA12202006

25719TANK, VACUUM SURGE

main25719-24020iM20AFKS..MZEA12202006

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-15040iM15AFKS..MZEA17202210-202504

main25860-24050iM20AFKS..MZEA12202006

main25860-47050i8NRFTS..NRE210201908

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9099992002

main90999-92002

9167180620

main91671-80620

14 parts on this diagram · 6 diagrams in section
