WATER PUMP

0001 1 0002 1 0003 1 0004 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

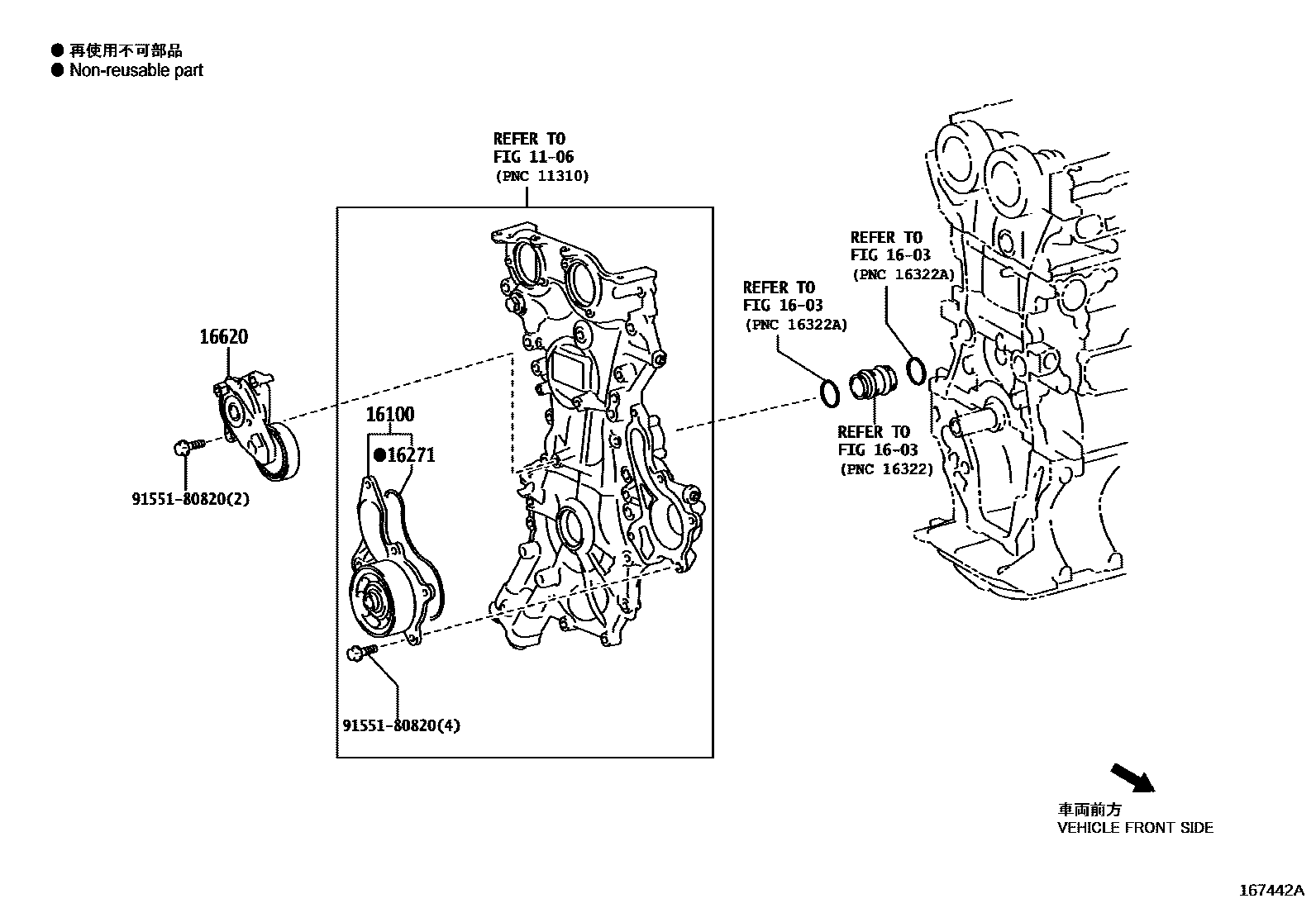

16100PUMP ASSY, ENGINE WATER

main16100-39565i2ZRFAE..ZRE212201908

main16100-80014i8NRFTS..NRE210201908

main161A0-39035i2ZRFXE..ZWE211,214201908

main161A0-39045i2ZRFXE..ZWE215,219202210

16271GASKET, WATER PUMP

main16271-37020i2ZRFXE..ZWE215,219202210

main16271-37030i2ZRFAE..ZRE212201908

main16271-47060i8NRFTS..NRE210201908

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0T040i2ZRFAE..ZRE212201908

main16620-47061i8NRFTS..NRE210201908

9155180820

main91551-80820

6 parts on this diagram · 4 diagrams in section
