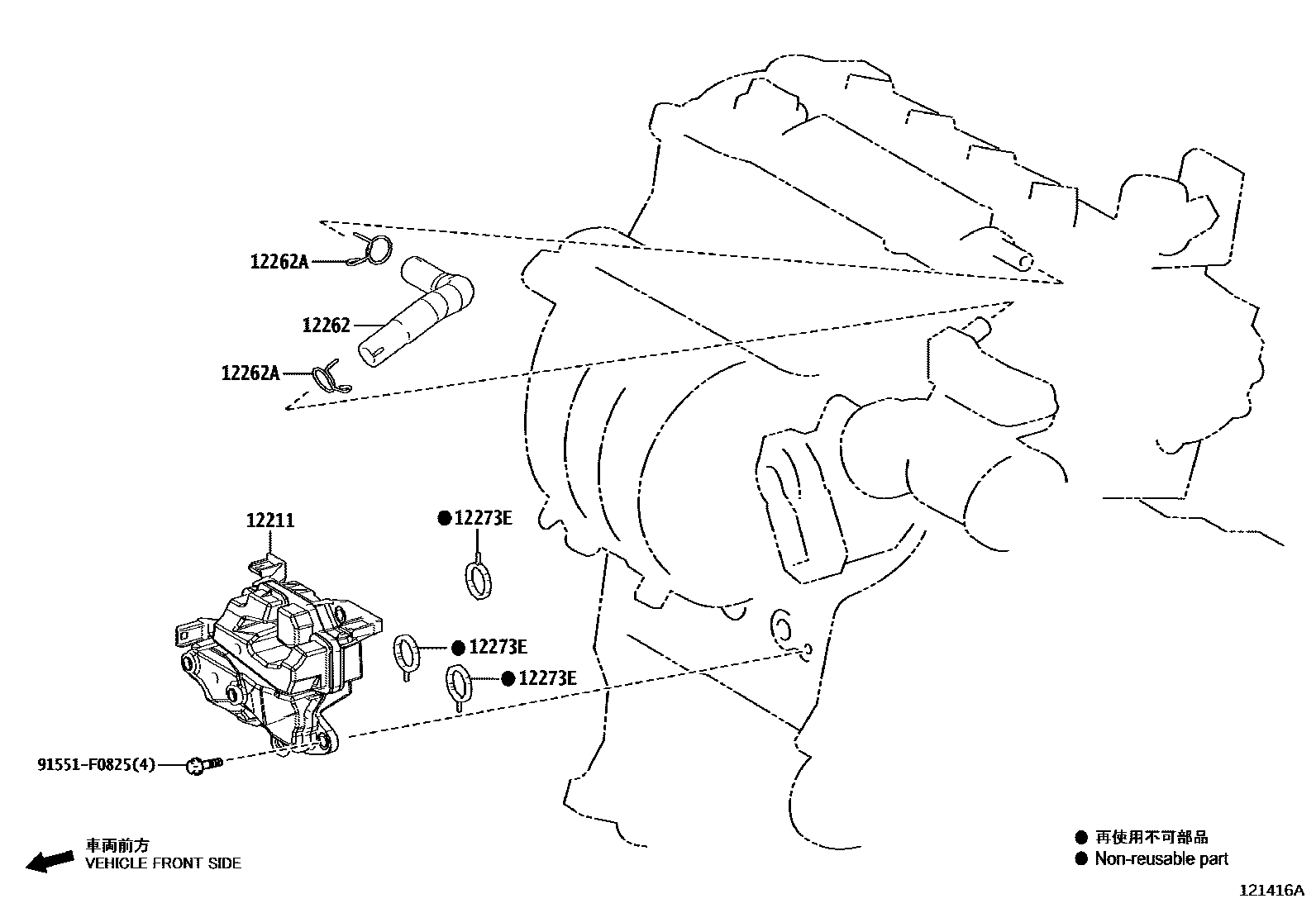

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1 0005 1

12211CASE, VENTILATION, NO.1

main12211-15060iM15AFKS..MZEA17202210-202304

main12211-15061iM15AFKS..MZEA17202304-202504

main12211-24010iM20AFKS..MZEA12202006-202208

main12211-24020iM20AFKS..MZEA12202208

main12211-37010i2ZR#..ZRE212,ZWE211,214201908

12262HOSE, VENTILATION, NO.2

main12262-15160iM15AFKS..MZEA17202210-202504

main12262-24020iM20AFKS..MZEA12202006

main12262-37020i2ZRFAE..ZRE212201908

main12262-37060i2ZRFXE..ZWE215,219202210

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004×2iM15AFKS..MZEA17202210-202504

12273EGASKET(FOR VENTILATION CASE)

main12273-15010×3iM15AFKS..MZEA17202210-202504

main12273-24010×3iM20AFKS..MZEA12202006

91551F0825

main91551-F0825

5 parts on this diagram · 5 diagrams in section
