ENGINE OVERHAUL GASKET KIT

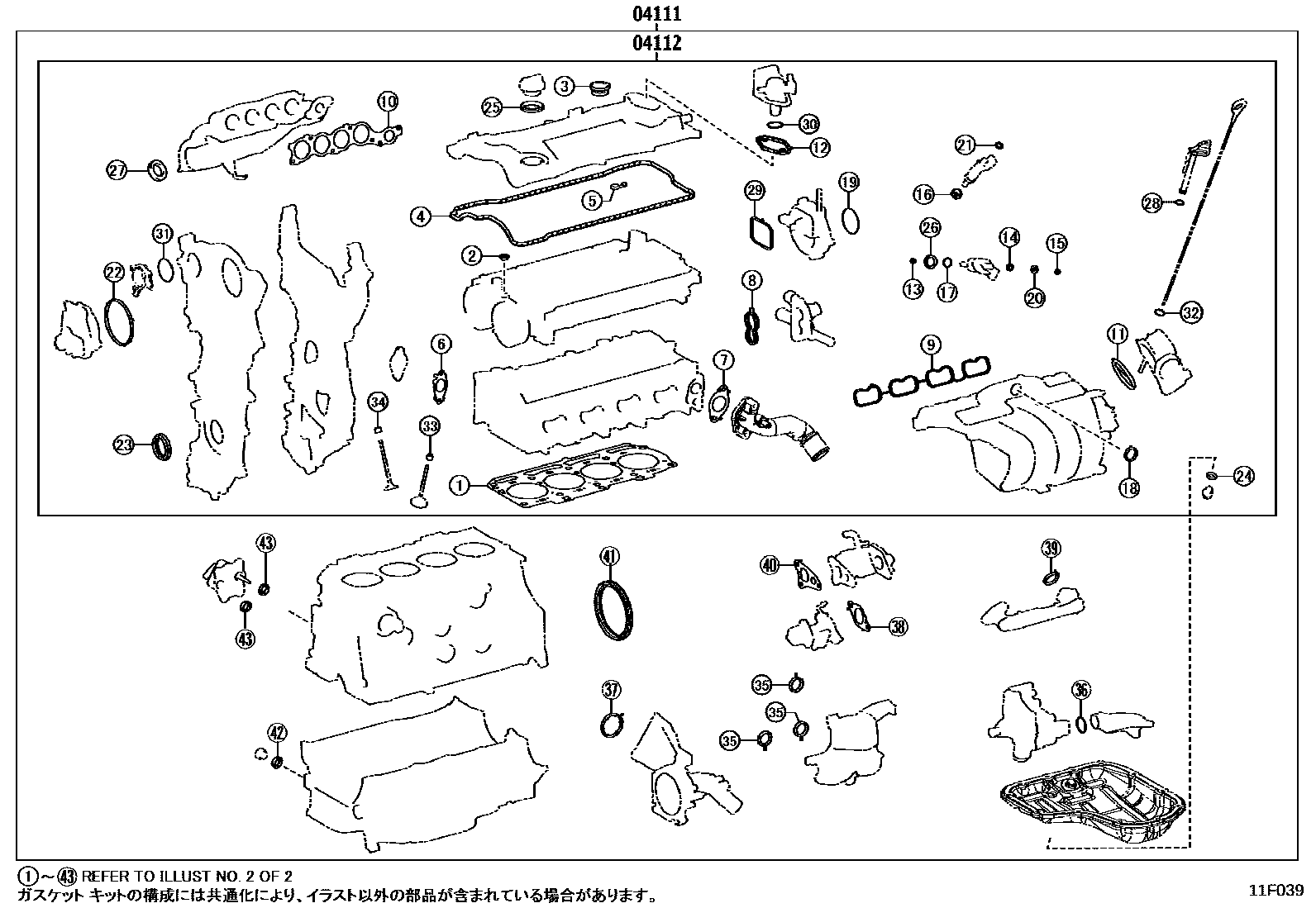

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-15111i202210-202504
main04111-24120i202006-202107
sub04111-24121
main04111-24121i202107
main04111-37501i201908-202004
sub04111-37502
main04111-37540i201908-202109
sub04111-37541
main04111-37541i202110
main04111-37560i202004-202109
sub04111-37561
main04111-37561i202110
main04111-47272i201908
04112GASKET KIT, ENGINE VALVE GRIND
main04112-15121i202210-202504
main04112-24060i202006-202107
sub04112-24061
main04112-24061i202107
main04112-37224i201908-202109
sub04112-37225
main04112-37225i202110
main04112-37381i201908-202004
sub04112-37382
main04112-37400i202004-202109
sub04112-37401
main04112-37401i202110
main04112-47182i201908

2 parts on this diagram · 10 diagrams in section
