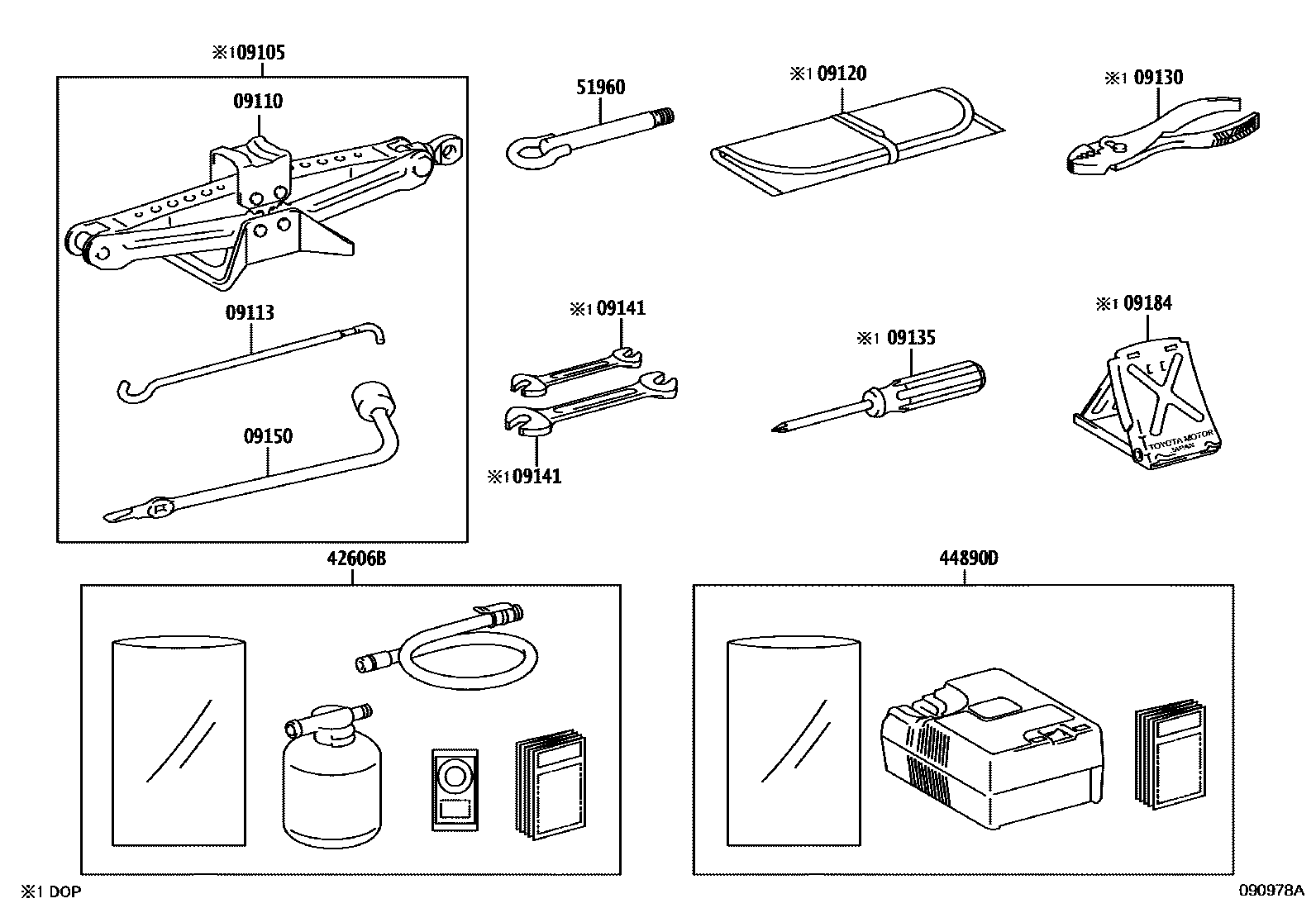

STANDARD TOOL

09105BOX SET, JACK

main09105-52030

09110JACK ASSY

main09111-47050iMZEA12,NRE210,ZRE212,ZWE211,214201908-202110

sub09111-47051

main09111-47051iMZEA12,NRE210,ZRE212,ZWE211,214202111

09113HANDLE, JACK

main09113-42030iMZEA12,NRE210,ZRE212,ZWE211,214201908

09120BAG, TOOL

main09120-16030

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-42010iMZEA12,NRE210,ZRE212,ZWE211,214201908

09184STOPPER, WHEEL

main09184-00010

42606BREPAIR KIT, TUBELESS TIRE

main42606-30011iMZEA12,NRE210,ZRE212,ZWE21#201908-202206

sub42606-42080

main42606-42080iZWE219202210

main42606-42080iMZEA12,NRE210,ZRE212,ZWE211,214202206-202504

44890DCOMPRESSOR ASSY, AIR

main44890-12011iMZEA12,NRE210,ZRE212,ZWE211,214202109-202206

sub44890-42050

main44890-30030iMZEA12,NRE210,ZRE212,ZWE211,214201908-202108

sub44890-30031

main44890-42050iMZEA17202206-202504

51960HOOK ASSY, FRONT

main51960-12110iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

12 parts on this diagram · 1 diagram in section
