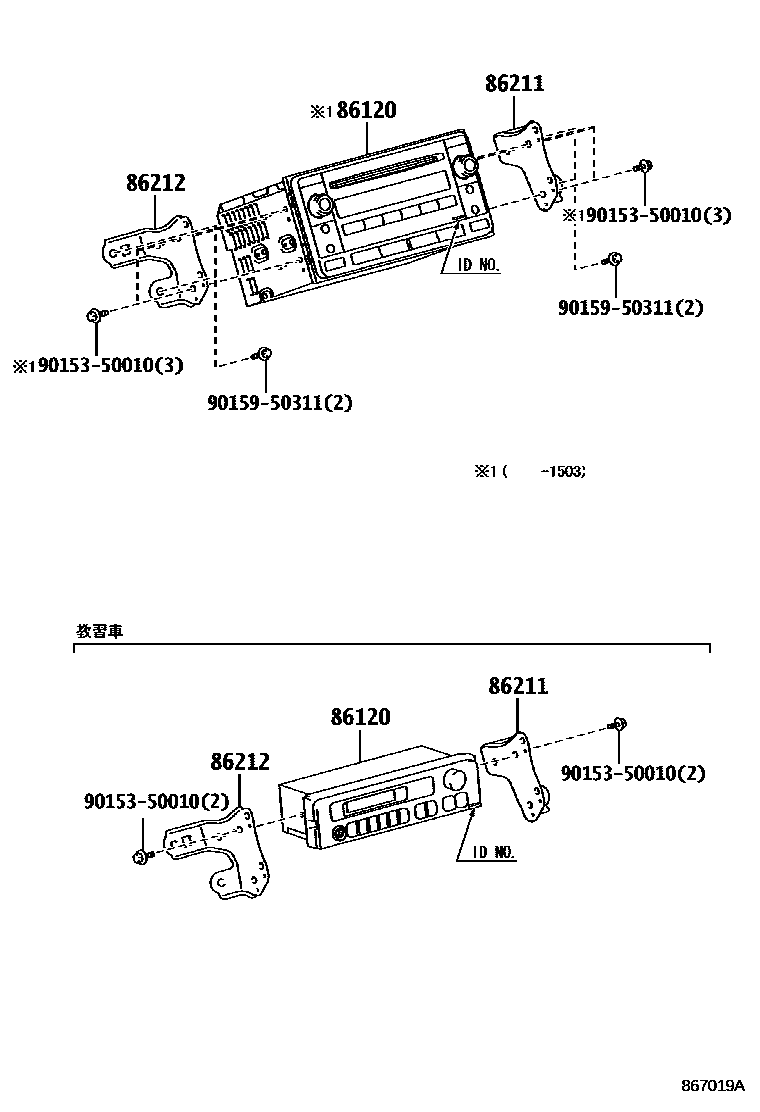

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1������ 0003 1������

86120RECEIVER ASSY, RADIO

main86120-12F80iNKE165,NRE160,NZE16#..4D201204-201503

main86120-30K80iNZE161..KYO201802

86211BRACKET, RADIO, NO.1

main86211-12440iNRE160,NZE16#,ZRE162201204-201208

main86211-12441iNKE165,NRE160,NZE16#,ZRE162201209-201503

86212BRACKET, RADIO, NO.2

main86212-12430iNRE160,NZE16#,ZRE162201204-201208

main86212-12431iNKE165,NRE160,NZE16#,ZRE162201209-201503

9015350010

main90153-50010

9015950311

main90159-50311

5 parts on this diagram · 3 diagrams in section
