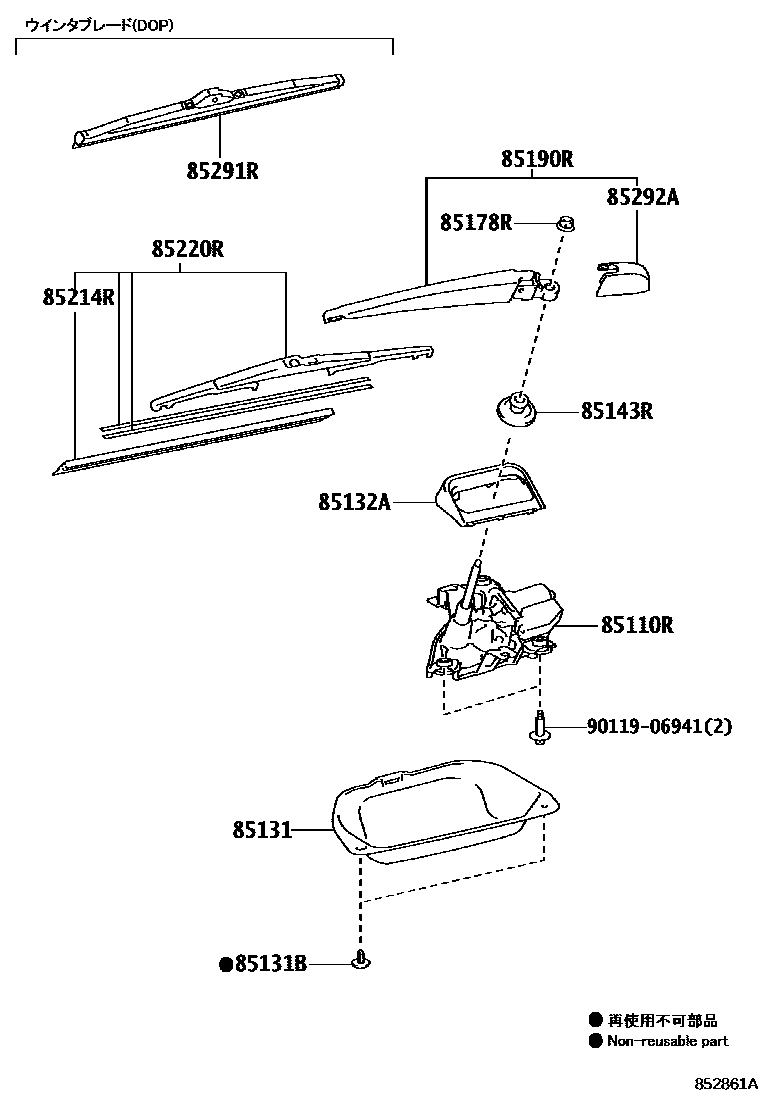

REAR WIPER

0001 1 0002 1

85110RMOTOR ASSY, REAR WIPER

main85130-13170iNKE165,NZE16#,ZRE162..5D201204-201710

85131COVER, REAR WIPER MOTOR

main90467-08186

main85131-12810

85131BCLIP, REAR WIPER MOTOR COVER

85132ACOVER, REAR WIPER SHAFT

85143RGROMMET, REAR WIPER MOTOR

main85143-13100iNKE165,NZE16#,ZRE162..5D201204-201710

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iNKE165,NZE16#,ZRE162..5D201204-201710

85190RARM ASSY, REAR WIPER

main85241-13090iNKE165,NZE16#,ZRE162..5D201204-201710

85214RRUBBER, REAR WIPER

main85214-42040iNKE165,NZE16#,ZRE162..5D201204-201710

85220RBLADE ASSY, REAR WIPER

85291RBLADE,REAR WIPER, WINTER

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iNKE165,NZE16#,ZRE162..5D201204-201710

9011906941

main90119-06941

12 parts on this diagram · 2 diagrams in section
