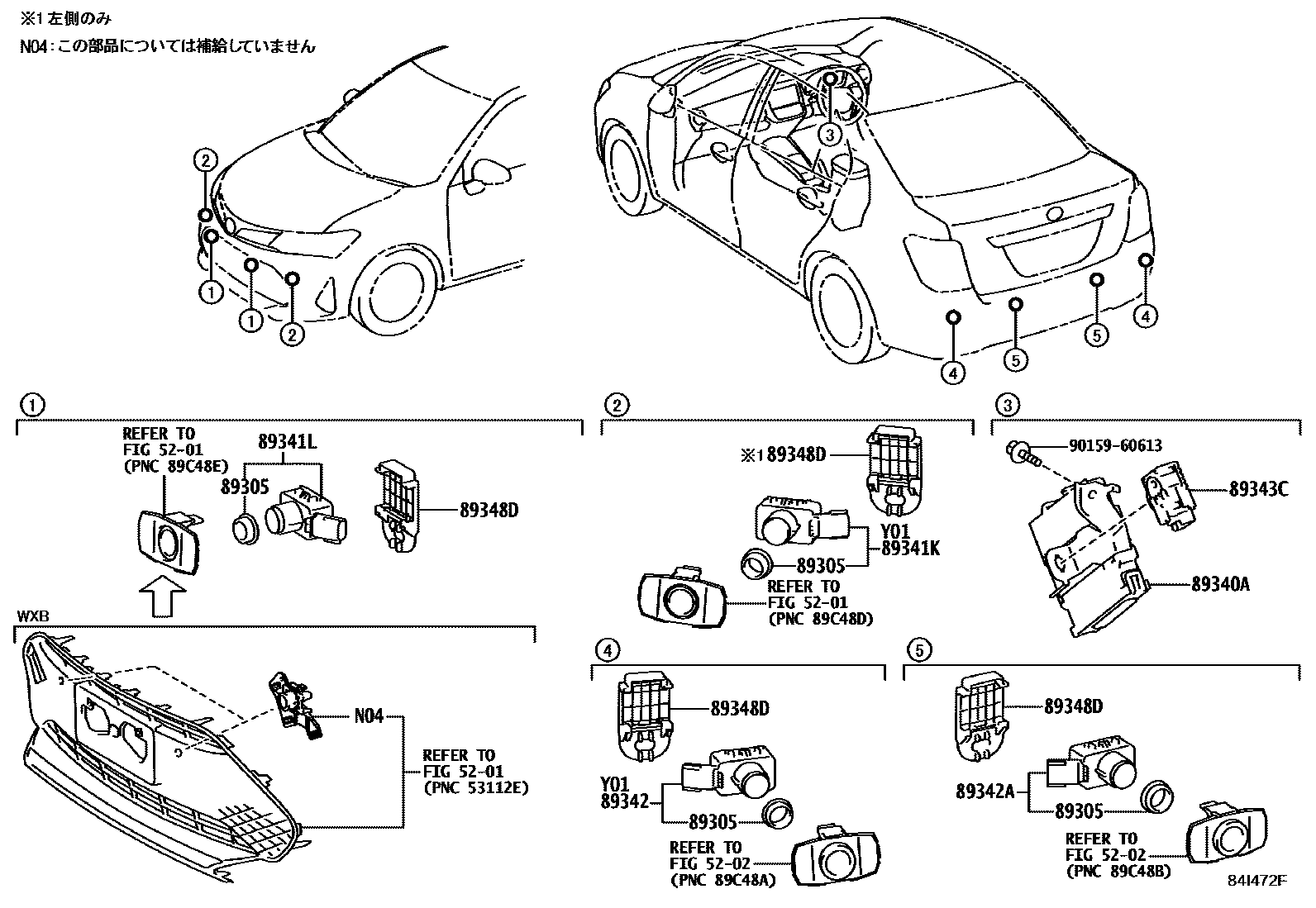

CLEARANCE & BACK SONAR

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89305CUSHION SET, ULTRASONIC SENSOR

main89305-47010iNKE165,NRE161,NZE164202403

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-12460iNKE165,NRE161,NZE164202403

main89340-12270iNRE160,ZRE162;NKE165..4D..HBD;NKE165,NRE161,NZE164..5D..(G,HBD,HBDG)201710-202403

main89340-12310supersedes 89340-12270iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S); NKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-33220-A0×2iNKE165,NRE161,NZE164202403

SUPER WHITE 2,040

main89341-33220-A5×2iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S); NKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

main89341-33220-B0×2iNKE165,NRE161,NZE164202403

SILVER ME.,1F7

main89341-33220-C7×2iNKE165,NRE161,NZE164..4D..(G,HBDG)201710

BLACK MC.,209

main89341-33220-D9×2iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

COOL BORDEAUX GF.,3T9

main89341-33220-E7×2iNKE165,NRE161,NZE164..4D202403

AVANT-GARDE BRONZE ME.,4V8

main89341-33220-E8×2iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

VINTAGE BROWN PEARL CS.,4X4

main89341-33220-J3×2iNKE165,NRE161,NZE164..5D202403

DK.BLUE M.M.,8W7

main89341-33220-C1×2iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S); NKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

main89341-33220-D7×2iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S); NKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

main89341-33220-E5×2iNKE165,NRE161,NZE164,ZRE162..5D201710-201909

main89341-33220-R0×2iNKE165,NRE161,NZE164,ZRE162..5D201710-202009

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-33220-C7×2iNKE165,NRE161,NZE164..4D..(G,HBDG)201710

BLACK MC.

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-33220-A0×2iNKE165,NRE161,NZE164202403

SUPER WHITE 2,040

main89341-33220-A5×2iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S); NKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

main89341-33220-B0×2iNKE165,NRE161,NZE164..4D..(G,HBDG)201710

SILVER ME.,1F7

main89341-33220-C7×2iNKE165,NRE161,NZE164..4D..(G,HBDG)201710

BLACK MC.,209

main89341-33220-D9×2iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

COOL BORDEAUX GF.,3T9

main89341-33220-E7×2iNKE165,NRE161,NZE164..4D..(G,HBDG)201710

AVANT-GARDE BRONZE ME.,4V8

main89341-33220-E8×2iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

VINTAGE BROWN PEARL CS.,4X4

main89341-33220-J3×2iNKE165,NRE161,NZE164..5D202403

DK.BLUE M.M.,8W7

main89341-33220-C1×2iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S); NKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

main89341-33220-D7×2iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S); NKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

main89341-33220-E5×2iNKE165,NRE161,NZE164,ZRE162..5D201710-201909

main89341-33220-R0×2iNKE165,NRE161,NZE164,ZRE162..5D201710-202009

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-33220-A0×2iNKE165,NRE161,NZE164..4D..(G,HBDG)201710

SUPER WHITE 2,040

main89341-33220-A5×2iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S); NKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

main89341-33220-B0×2iNKE165,NRE161,NZE164202403

SILVER ME.,1F7

main89341-33220-C7×2iNKE165,NRE161,NZE164202403

BLACK MC.,209

main89341-33220-D9×2iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

COOL BORDEAUX GF.,3T9

main89341-33220-E7×2iNKE165,NRE161,NZE164..4D202403

AVANT-GARDE BRONZE ME.,4V8

main89341-33220-E8×2iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

VINTAGE BROWN PEARL CS.,4X4

main89341-33220-J3×2iNKE165,NRE161,NZE164..5D202403

DK.BLUE M.M.,8W7

main89341-33220-C1×2iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S); NKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

main89341-33220-D7×2iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S); NKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

main89341-33220-E5×2iNKE165,NRE161,NZE164,ZRE162..5D201710-201909

main89341-33220-R0×2iNKE165,NRE161,NZE164,ZRE162..5D201710-202009

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iNKE165,NRE161,NZE164..4D..(G,HBDG)201710

89348DCLIP, ULTRASONIC SENSOR

main89348-58130×7iNKE165,NRE161,NZE164202403

9015960613

main90159-60613
