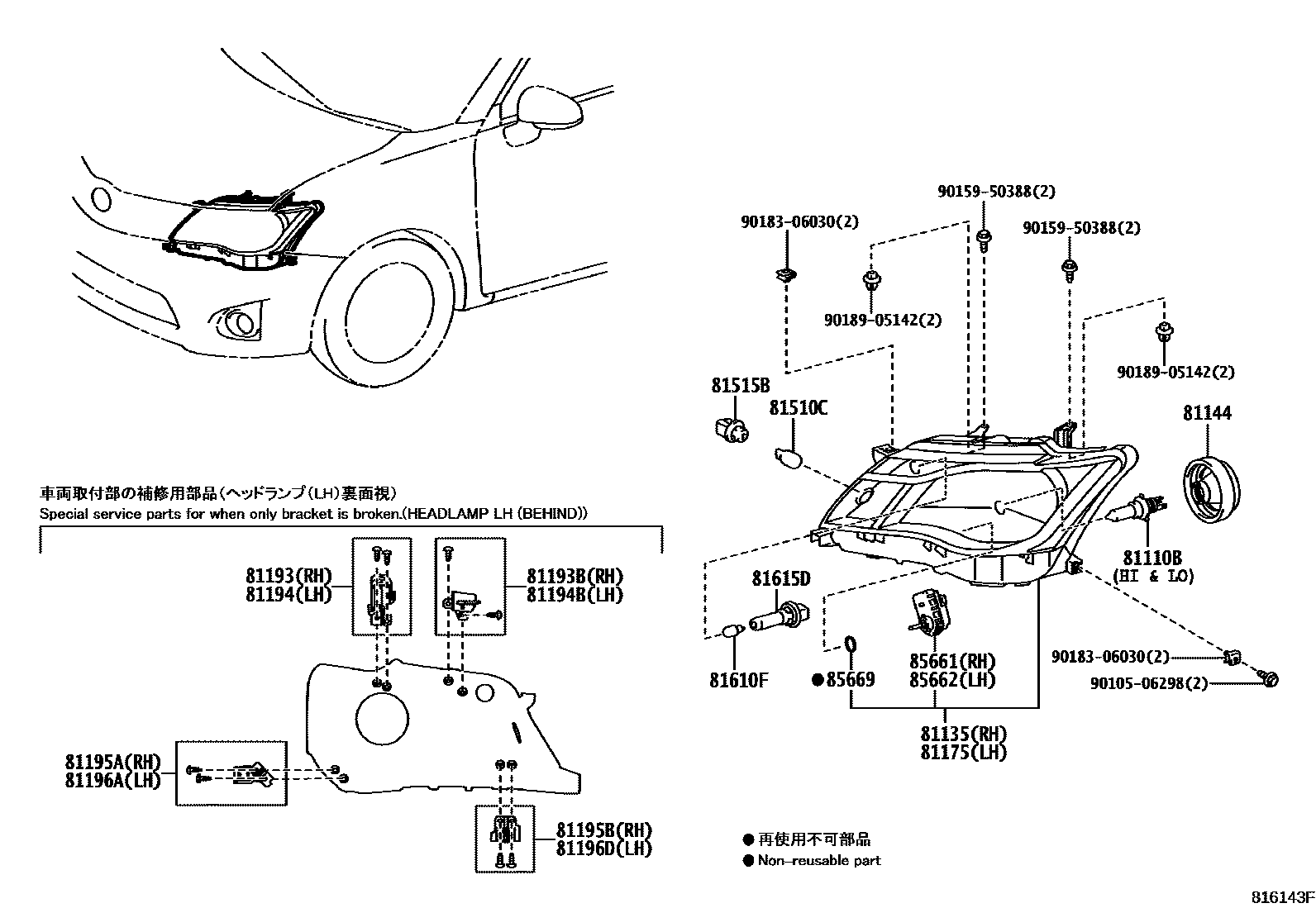

HEADLAMP

0001 1����� �������� 0002 1��������� �������� 0003 1����� �������� 0004 1LED ��������

81110BBULB(FOR HEADLAMP, NO.1)

main00000-00000iNKE165,NRE161,NZE16#..G,HBDG; NKE165,NRE161,NZE164..G,HBDG; ZRE162201710-201908

main90981-13046×2iNKE165,NZE16#..5D..(G,HBDG); NRE160;NZE16#..5D;NZE16#..4D..G; NZE16#,ZRE162..LXL,S201204-201503

main90981-13058×2iNKE165,NRE160,NZE16#..G,HBD,HBDG,X201204-201503

81135UNIT ASSY, HEADLAMP, RH

main81130-12J00iNKE165,NRE160,NZE16#..G,HBD,HBDG,X201204-201503

main81130-12J70iNZE161..KYO;NRE161,NZE16#..G;NKE165,NRE160..HBDG,X201710

main81140-12N60iNKE165,NRE161,NZE16#..SED,WG202208

main81145-12J10iNRE160;NZE16#..5D;NZE16#..4D..G; NZE16#,ZRE162..LXL,S201204-201503

main81140-12J80iNKE165,NRE161,NZE16#..5D;NKE165,NRE161,NZE16#..4D..(G,HBDG); ZRE162201503-201710

main81140-12J90iNKE165..5D..HBDG; NRE161,NZE16#..5D..G201503-201710

main81140-12K00iNKE165..5D..HBDG; NRE161,NZE164..5D..G; ZRE162201503-201710

main81145-12J50iNKE165,NZE16#..5D..(G,HBDG); ZRE162201204-201503

main81145-12J60supersedes 81140-12J80iNKE165,NZE16#..5D..CVT..(G,HBDG); ZRE162201212-201503

81144COVER, HEADLAMP, NO.1

main90075-65002×2iNKE165,NRE160,NZE16#..G,HBD,HBDG,X201204-201503

81175UNIT ASSY, HEADLAMP, LH

main81070-12N60iNKE165,NRE161,NZE16#..SED,WG202208

main81170-12J00iNKE165,NRE160,NZE16#..G,HBD,HBDG,X201204-201503

main81170-12J70iNKE165,NRE16#,NZE16#201503-201710

main81185-12J10iNRE160;NZE16#..5D;NZE16#..4D..G; NZE16#,ZRE162..LXL,S201204-201503

main81070-12J80iNKE165,NRE161,NZE16#..5D;NKE165,NRE161,NZE16#..4D..(G,HBDG); ZRE162201503-201710

main81070-12J90iNKE165..5D..HBDG; NRE161,NZE16#..5D..G201503-201710

main81070-12K00iNKE165..5D..HBDG; NRE161,NZE164..5D..G; ZRE162201503-201710

main81185-12J50supersedes 81070-12J80iNKE165,NZE16#..5D..(G,HBDG); ZRE162201204-201503

main81185-12J60supersedes 81070-12J80iNKE165,NZE16#..5D..CVT..(G,HBDG); ZRE162201212-201503

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-12100iNKE165,NRE160,NZE16#..G,HBD,HBDG,X201204-201503

main81193-12130iNZE161..KYO;NRE161,NZE16#..G;NKE165,NRE160..HBDG,X201710

main81193-12170iNKE165,NZE16#..5D..(G,HBDG); NZE16#,ZRE162..LXL,S; NZE16#..4D..G;NKE165,NZE16#..5D;NKE165,NRE160..4D..(HBDG,X)201204-201503

main81193-12210iNKE165,NRE161,NZE16#..5D;NKE165,NRE161,NZE16#..4D..(G,HBDG); NKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G; ZRE162201503-201710

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81197-12120iNZE161..KYO;NRE161,NZE16#..G;NKE165,NRE160..HBDG,X201710

main81197-12140iNKE165,NRE160,NZE16#..G,HBD,HBDG,X201204-201503

main81197-12150iNKE165,NZE16#..5D..(G,HBDG); NZE16#,ZRE162..LXL,S; NZE16#..4D..G;NKE165,NZE16#..5D;NKE165,NRE160..4D..(HBDG,X)201204-201503

main81197-12180iNKE165,NRE161,NZE16#..5D;NKE165,NRE161,NZE16#..4D..(G,HBDG); NKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G; ZRE162201503-201710

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-12120iNKE165,NRE161,NZE16#..(SED,WG)..(HBD,X)201710-202208

main81194-12140iNKE165,NRE160,NZE16#..G,HBD,HBDG,X201204-201503

main81194-12170iNKE165,NZE16#..5D..(G,HBDG); NZE16#,ZRE162..LXL,S; NZE16#..4D..G;NKE165,NZE16#..5D;NKE165,NRE160..4D..(HBDG,X)201204-201503

main81194-12210iNKE165,NRE161,NZE16#..5D;NKE165,NRE161,NZE16#..4D..(G,HBDG); NKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G; ZRE162201503-201710

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81198-12100iNKE165,NRE16#,NZE16#201503-201710

main81198-12150iNKE165,NRE160,NZE16#..G,HBD,HBDG,X201204-201503

main81198-12160iNKE165,NZE16#..5D..(G,HBDG); NZE16#,ZRE162..LXL,S; NZE16#..4D..G;NKE165,NZE16#..5D;NKE165,NRE160..4D..(HBDG,X)201204-201503

main81198-12180iNKE165,NRE161,NZE16#..5D;NKE165,NRE161,NZE16#..4D..(G,HBDG); NKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G; ZRE162201503-201710

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-12180iNZE161..KYO;NRE161,NZE16#..G;NKE165,NRE160..HBDG,X201710

main81195-12200iNKE165,NRE160,NZE16#..G,HBD,HBDG,X201204-201503

main81195-12220iNKE165,NZE16#..5D..(G,HBDG); NZE16#,ZRE162..LXL,S; NZE16#..4D..G;NKE165,NZE16#..5D;NKE165,NRE160..4D..(HBDG,X)201204-201503

main81195-12290iNKE165,NRE161,NZE16#..5D;NKE165,NRE161,NZE16#..4D..(G,HBDG); NKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G; ZRE162201503-201710

81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH

main81195-12210iNKE165,NRE160,NZE16#,ZRE162201204-201503

main81195-12280iNKE165,NRE16#,NZE16#201503-201710

main81195-12300iNKE165,NRE161,NZE16#..5D;NKE165,NRE161,NZE16#..4D..(G,HBDG); NKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G; ZRE162201503-201710

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-12180iNKE165,NRE16#,NZE16#201503-201710

main81196-12200iNKE165,NRE160,NZE16#..G,HBD,HBDG,X201204-201503

main81196-12220iNKE165,NZE16#..5D..(G,HBDG); NZE16#,ZRE162..LXL,S; NZE16#..4D..G;NKE165,NZE16#..5D;NKE165,NRE160..4D..(HBDG,X)201204-201503

main81196-12290iNKE165,NRE161,NZE16#..5D;NKE165,NRE161,NZE16#..4D..(G,HBDG); NKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G; ZRE162201503-201710

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-12210iNKE165,NRE160,NZE16#,ZRE162201204-201503

main81196-12280iNZE161..KYO;NRE161,NZE16#..G;NKE165,NRE160..HBDG,X201710

main81196-12300iNKE165,NRE161,NZE16#..5D;NKE165,NRE161,NZE16#..4D..(G,HBDG); NKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G; ZRE162201503-201710

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iNKE165,NRE160,NZE16#,ZRE162201204-201503

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iNKE165,NRE160,NZE16#,ZRE162201204-201503

81610FBULB(FOR CLEARANCE LAMP)

main90981-11069×2iNKE165,NRE16#,NZE16#,ZRE162201503-201710

main99132-12050×2iNKE165,NRE160,NZE16#,ZRE162201204-201503

main00000-00000iNKE165,NRE161,NZE164..G,HBDG; ZRE162201710-201908

81615DSOCKET, CLEARANCE LAMP

main90075-60077×2iNKE165,NRE160,NZE16#,ZRE162201204-201503

main90075-60089×2iNKE165,NRE16#,NZE16#,ZRE162201503-201710

main00000-00000iNKE165,NRE161,NZE164..G,HBDG; ZRE162201710-201908

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iNKE165,NRE160,NZE16#..G,HBD,HBDG,X201204-201503

main85661-12020iNKE165,NRE161,NZE16#..5D;NKE165,NRE161,NZE16#..4D..(G,HBDG); NKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G; ZRE162201503-201710

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iNKE165,NRE16#,NZE16#201503-201710

main85661-12020iNKE165,NZE16#..5D..(G,HBDG); NRE160;NZE16#..5D;NZE16#..4D..G; NZE16#,ZRE162..LXL,S201204-201503

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iNKE165,NRE160,NZE16#,ZRE162201204-201503

9010506298

main90105-06298

9015950388

main90159-50388

9018306030

main90183-06030

9018905142

main90189-05142

23 parts on this diagram · 4 diagrams in section
