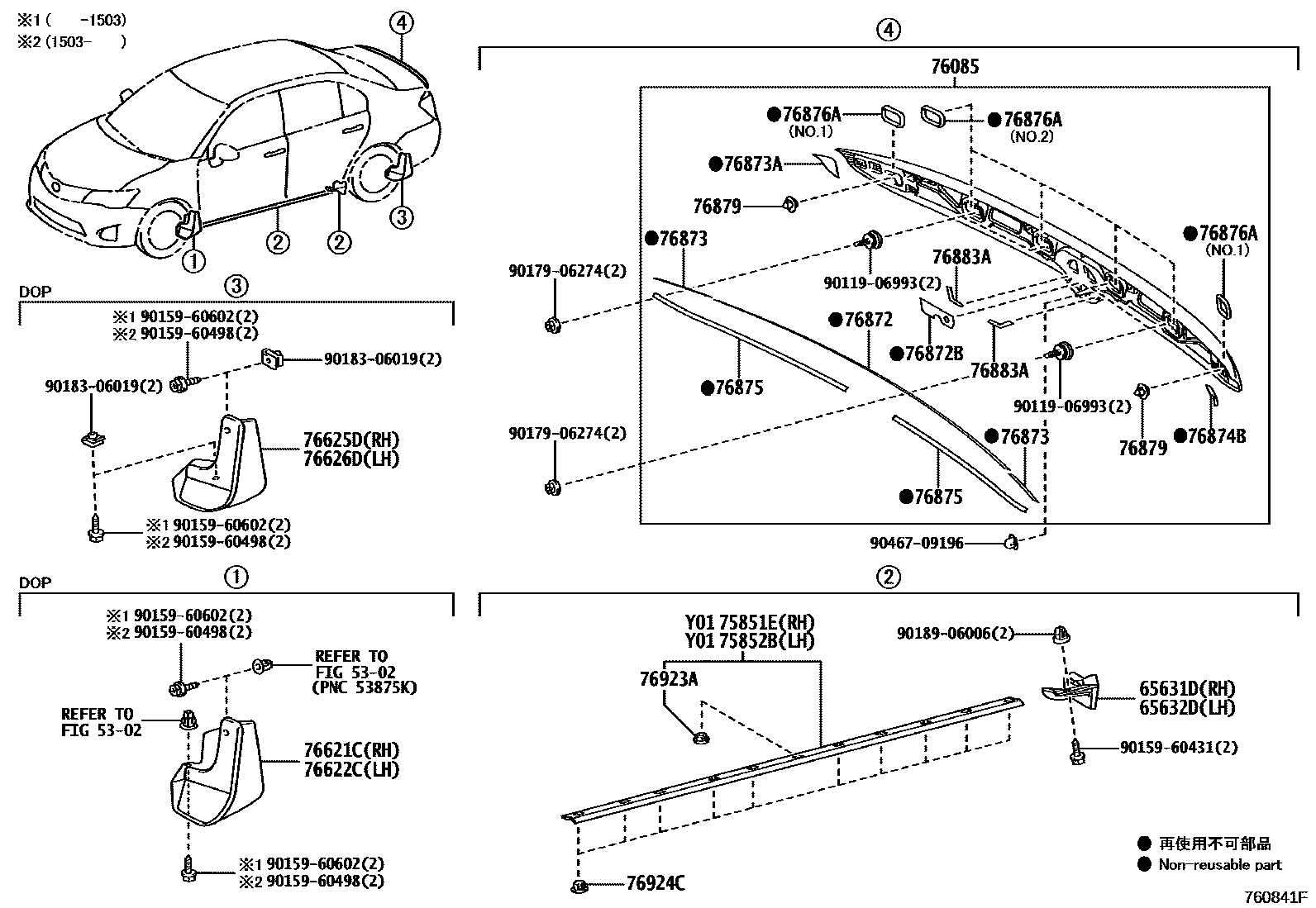

MUDGUARD & SPOILER

0001 1 0002 1��(�������������)

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-12100iNKE165,NRE160,NZE16#,ZRE162201204-201503

main65631-12130iNKE165,NRE161,NZE16#..HBD,X201710

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-12100iNKE165,NRE16#,NZE16#,ZRE162201503-201710

main65632-12130iNKE165,NRE161,NZE16#..HBD,X201710

75851EMOULDING, BODY ROCKER PANEL, RH

main75851-12160iNKE165,NRE160,NZE16#..HBD,X; NKE165,NZE16#,ZRE162..G,HBDG,LXL,S; NRE160201204-201503

75852BMOULDING, BODY ROCKER PANEL, LH

main75852-12130iNKE165,NRE160,NZE16#..HBD,X; NKE165,NZE16#,ZRE162..G,HBDG,LXL,S; NRE160201204-201503

76085SPOILER SUB-ASSY, REAR

main76085-12630-A0iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

main76085-12630-C0iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

main76085-12630-C1iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

main76085-12630-D0iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

76621CMUDGUAD, FRONT FENDER, RH

main76621-12350-A0iNZE16#..5D..X201207-201503

main76621-12350-A1iNKE165,NRE16#,NZE16#,ZRE162201710-201909

main76621-12350-B0iNZE16#..5D..X201207-201503

main76621-12350-B1iNKE165,NRE160,NZE16#..4D201204-201503

main76621-12350-C0iNKE165,NRE16#,NZE16#,ZRE162201503-201710

main76621-12350-D0iNKE165,NRE160,NZE16#..4D201204-201503

main76621-12350-D1iNZE16#..5D..X201207-201503

main76621-12350-D2iNKE165,NRE16#,NZE16#,ZRE162201710-201909

main76621-12350-E0iNKE165,NZE16#,ZRE162..5D..(G,HBD,HBDG,S)201204-201503

main76621-12350-E1iNKE165,NRE161,NZE16#,ZRE162..5D201710-201909

main76621-12350-E2iNKE165,NRE16#,NZE16#..4D201710-201909

main76621-12350-E3iNKE165,NRE16#,NZE16#..4D201710

main76621-12350-J0iNKE165,NRE160,NZE16#..4D201204-201503

main76621-12350-J1iNKE165,NZE16#,ZRE162..5D..(G,HBD,HBDG,S)201204-201503

main76621-12350-J2iNKE165201503-201710

main76621-12350-J3iNKE165,NRE161,NZE16#..5D202009

main76621-12350-K0iNKE165,NZE16#,ZRE162..5D..(G,HBD,HBDG,S)201204-201503

76622CMUDGUARD, FRONT FENDER, LH

main76622-12340-A0iNZE16#..G,LXL;NZE16#..4D..X;NKE165,NRE160,ZRE162201204-201503

main76622-12340-A1iNKE165,NRE16#,NZE16#,ZRE162201503-201710

main76622-12340-B0iNZE16#..G,LXL;NZE16#..4D..X;NKE165,NRE160,ZRE162201204-201503

main76622-12340-B1iNKE165,NRE16#,NZE16#..4D201503-201710

main76622-12340-C0iNZE16#..5D..X201207-201503

main76622-12340-D0iNKE165,NRE160,NZE16#..4D201204-201503

main76622-12340-D1iNKE165,NRE161,NZE16#,ZRE162..5D201503-201710

main76622-12340-D2iNKE165,NRE16#,NZE16#,ZRE162201710-201909

main76622-12340-E0iNZE16#..5D..X201207-201503

main76622-12340-E1iNKE165,NRE161,NZE16#,ZRE162..5D201503-201710

main76622-12340-E2iNKE165,NRE16#,NZE16#..4D201710-201909

main76622-12340-E3iNKE165,NRE16#,NZE16#..4D201710

main76622-12340-J0iNKE165,NRE16#,NZE16#..4D201503-201710

main76622-12340-J1iNKE165,NRE161,NZE16#,ZRE162..5D201503-201710

main76622-12340-J2iNKE165201503-201710

main76622-12340-J3iNKE165,NRE161,NZE16#..5D202009

main76622-12340-K0iNKE165,NZE16#,ZRE162..5D..(G,HBD,HBDG,S)201204-201503

76625DMUDGUARD, QUARTER PANEL, REAR RH

main76625-12620-A0iNZE16#..G,LXL;NZE16#..4D..X;NKE165,NRE160,ZRE162201204-201503

main76625-12620-A1iNZE16#..4D;NKE165,NRE160201204-201503

main76625-12620-B0iNZE16#..5D..X201207-201503

main76625-12620-B1iNKE165,NRE160,NZE16#..4D201204-201503

main76625-12620-C0iNZE16#..G,LXL;NZE16#..4D..X;NKE165,NRE160,ZRE162201204-201503

main76625-12620-D0iNKE165,NRE160,NZE16#..4D201204-201503

main76625-12620-D1iNKE165,NZE16#,ZRE162..5D..(G,HBD,HBDG,S)201204-201503

main76625-12620-E0iNKE165,NZE16#,ZRE162..5D..(G,HBD,HBDG,S)201204-201503

main76625-12620-J0iNKE165,NRE160,NZE16#..4D201204-201503

main76625-12620-J1iNKE165,NZE16#,ZRE162..5D..(G,HBD,HBDG,S)201204-201503

main76625-12620-J2iNKE165,NRE160,NZE16#..HBD,HBDG,X201307-201503

main76625-12620-K0iNZE16#..5D..X201207-201503

main76625-12630-A0iNKE165,NRE16#,NZE16#..4D201710

main76625-12630-A1iNKE165,NRE16#,NZE16#..4D201503-201710

main76625-12630-B0iNKE165,NRE16#,NZE16#..4D201710

main76625-12630-B1iNKE165,NRE16#,NZE16#..4D201503-201710

main76625-12630-C0iNKE165,NRE16#,NZE16#..4D201710

main76625-12630-D0iNKE165,NRE16#,NZE16#..4D201710-201909

main76625-12630-E0iNKE165,NRE16#,NZE16#..4D201503-201710

main76625-12630-E1iNKE165,NRE16#,NZE16#..4D201710

main76625-12630-J0iNKE165..4D201503-201710

main76625-12630-J1iNKE165,NRE16#,NZE16#..4D201503-201710

main76625-13140-A0iNKE165,NRE161,NZE16#,ZRE162..5D201503-201710

main76625-13140-A1iNKE165,NRE161,NZE16#,ZRE162..5D201710-201909

main76625-13140-B0iNKE165,NRE161,NZE16#,ZRE162..5D201710

main76625-13140-C0iNKE165,NRE161,NZE16#,ZRE162..5D201710

main76625-13140-D0iNKE165,NRE161,NZE16#,ZRE162..5D201503-201710

main76625-13140-D1iNKE165,NRE161,NZE16#,ZRE162..5D201710-201909

main76625-13140-E0iNKE165,NRE161,NZE16#,ZRE162..5D201503-201710

main76625-13140-J0iNKE165..5D201503-201710

main76625-13140-J1iNKE165,NRE161,NZE16#,ZRE162..5D201503-201710

main76625-13140-J2iNKE165,NRE161,NZE16#..5D202009

76626DMUDGUARD, QUARTER PANEL, REAR LH

main76626-12620-A0iNZE16#..G,LXL;NZE16#..4D..X;NKE165,NRE160,ZRE162201204-201503

main76626-12620-A1iNZE16#..4D;NKE165,NRE160201204-201503

main76626-12620-B0iNZE16#..5D..X201207-201503

main76626-12620-B1iNKE165,NRE160,NZE16#..4D201204-201503

main76626-12620-C0iNZE16#..G,LXL;NZE16#..4D..X;NKE165,NRE160,ZRE162201204-201503

main76626-12620-D0iNKE165,NRE160,NZE16#..4D201204-201503

main76626-12620-D1iNZE16#..5D..X201207-201503

main76626-12620-E0iNKE165,NZE16#,ZRE162..5D..(G,HBD,HBDG,S)201204-201503

main76626-12620-J0iNKE165,NRE160,NZE16#..4D201204-201503

main76626-12620-J1iNZE16#..5D..X201207-201503

main76626-12620-J2iNKE165,NRE160,NZE16#..HBD,HBDG,X201307-201503

main76626-12620-K0iNZE16#..5D..X201207-201503

main76626-12630-A0iNKE165,NRE16#,NZE16#..4D201710

main76626-12630-A1iNKE165,NRE16#,NZE16#..4D201710-201909

main76626-12630-B0iNKE165,NRE16#,NZE16#..4D201503-201710

main76626-12630-B1iNKE165,NRE16#,NZE16#..4D201503-201710

main76626-12630-C0iNKE165,NRE16#,NZE16#..4D201503-201710

main76626-12630-D0iNKE165,NRE16#,NZE16#..4D201710-201909

main76626-12630-E0iNKE165,NRE16#,NZE16#..4D201710-201909

main76626-12630-E1iNKE165,NRE16#,NZE16#..4D201710

main76626-12630-J0iNKE165..4D201503-201710

main76626-12630-J1iNKE165,NRE16#,NZE16#..4D201503-201710

main76626-13140-A0iNKE165,NRE161,NZE16#,ZRE162..5D201503-201710

main76626-13140-A1iNKE165,NRE161,NZE16#,ZRE162..5D201710-201909

main76626-13140-B0iNKE165,NRE161,NZE16#,ZRE162..5D201503-201710

main76626-13140-C0iNKE165,NRE161,NZE16#,ZRE162..5D201503-201710

main76626-13140-D0iNKE165,NRE161,NZE16#,ZRE162..5D201503-201710

main76626-13140-D1iNKE165,NRE161,NZE16#,ZRE162..5D201710-201909

main76626-13140-E0iNKE165,NRE161,NZE16#,ZRE162..5D201710-201909

main76626-13140-J0iNKE165..5D201503-201710

main76626-13140-J1iNKE165,NRE161,NZE16#,ZRE162..5D201710-202009

main76626-13140-J2iNKE165,NRE161,NZE16#..5D202009

76872PROTECTOR, REAR SPOILER, NO.1

main76872-12220iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

76872BPROTECTOR, REAR SPOILER, CENTER

main76872-12210iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

76873PROTECTOR, REAR SPOILER, NO.2

main76873-12220×2iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

76873APROTECTOR, REAR SPOILER, RH

main76873-12230iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

76874BPROTECTOR, REAR SPOILER, LH

main76874-12230iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

76875PROTECTOR, REAR SPOILER, NO.4

main76875-12140×2iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

76876APROTECTOR, REAR SPOILER, NO.10

main76876-12040×2iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

main76876-12050×4iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

76879CLIP, REAR SPOILER, NO.1

main76879-12060×2iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

76883APROTECTOR, REAR SOPILER, NO.7

main76875-12150×2iNKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

76923ARETAINER, SIDE MUDGUARD

main76924-12040×2iNKE165,NRE160,NZE16#..HBD,X; NKE165,NZE16#,ZRE162..G,HBDG,LXL,S; NRE160201204-201503

76924CRETAINER, SIDE MUDGUARD, NO.2

main76924-12040×20iNKE165,NRE16#,NZE16#..HBD,X; NKE165,NRE161,NZE16#,ZRE162..G,HBDG,S; NKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G; ZRE162201503-201710

9011906993

main90119-06993

9015960431

main90159-60431

9015960498

main90159-60498

9015960602

main90159-60602

9017906274

main90179-06274

9018306019

main90183-06019

9018906006

main90189-06006

9046709196

main90467-09196

29 parts on this diagram · 2 diagrams in section
