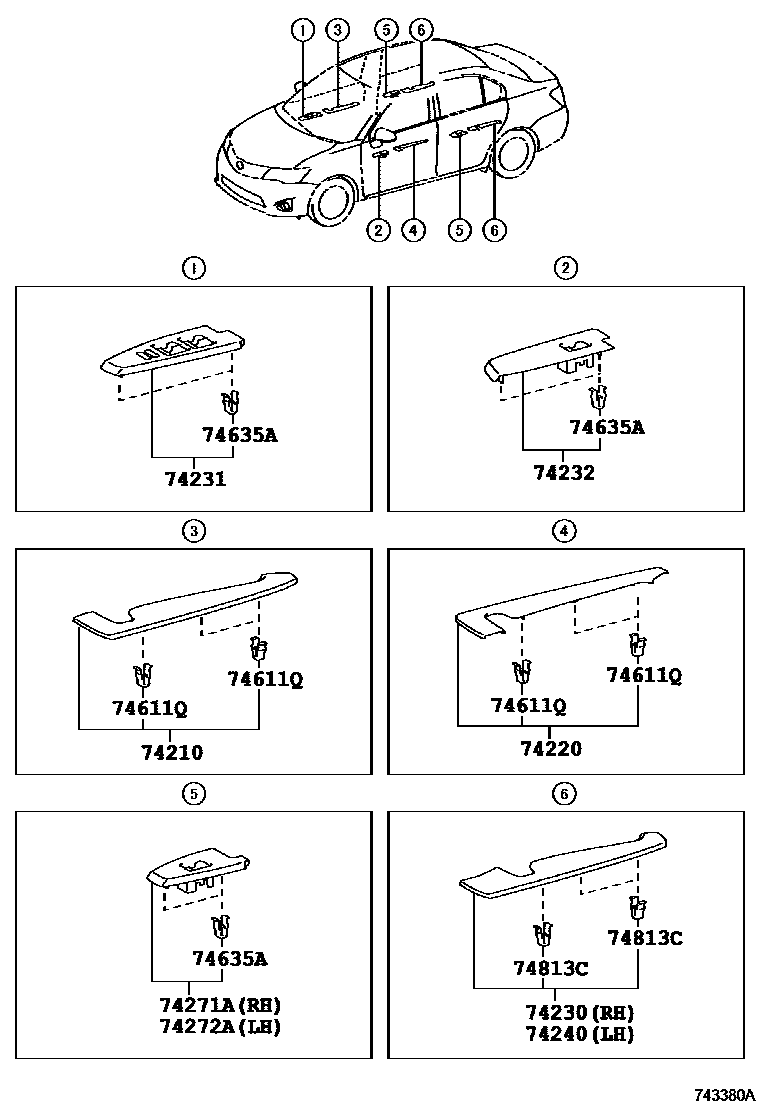

ARMREST & VISOR

0001 1������ 0002 1����� & ����������

74210ARMREST ASSY, FRONT, RH

main74210-12290-C1iNKE165,NRE16#,NZE16#..HBD,X201204-201710

BLACK,TRIM2#

main74210-12300-C2iNKE165,NZE16#,ZRE162..HBDG,LXL,S201204-201908

BLACK,TRIM2#

74220ARMREST ASSY, FRONT, LH

main74220-12230-C1iNKE165,NRE160,NZE16#..G,HBD,X201204-201710

BLACK,TRIM2#

main74220-12240-C2iNKE165,NZE16#,ZRE162..HBDG,LXL,S201204-201908

BLACK,TRIM2#

74230ARMREST ASSY, REAR, RH

main74250-12080-C0iNKE165,NRE160,NZE16#,ZRE162201204-201710

BLACK,TRIM2#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12D80-C0iNKE165,NRE16#,NZE16#,ZRE162201204-201710

BLACK,TRIM2#

main74231-12D90-B1iZRE162201204-201503

GRAY,TRIM2#

main74231-12E00-E0iNZE16#..LXL201204-201503

BROWN,TRIM2#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12B50-C0iNKE165,NRE16#,NZE16#,ZRE162201204-201710

BLACK,TRIM2#

main74232-12B60-B1iZRE162201204-201503

GRAY,TRIM2#

main74232-12B70-E0iNZE16#..LXL201204-201503

BROWN,TRIM2#

74240ARMREST ASSY, REAR, LH

main74260-12080-C0iNKE165,NRE160,NZE16#,ZRE162201204-201710

BLACK,TRIM2#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-12470-C0iNKE165,NRE16#,NZE16#,ZRE162201204-201710

BLACK,TRIM2#

main74271-12480-B1iZRE162201204-201503

GRAY,TRIM2#

main74271-12490-E0iNZE16#..LXL201204-201503

BROWN,TRIM2#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-12500-C0iNKE165,NRE16#,NZE16#,ZRE162201204-201710

BLACK,TRIM2#

main74272-12510-B1iZRE162201204-201503

GRAY,TRIM2#

main74272-12520-E0iNZE16#..LXL201204-201503

BROWN,TRIM2#

74611QCLIP

main90467-10203iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S201404-201908

main90467-12080iNKE165,NRE16#,NZE16#..HBD,X201204-201710

74635ACLIP

main90467-10203iNKE165,NRE16#,NZE16#,ZRE162201204-201710

74813CCLIP

main90467-12080iNKE165,NRE16#,NZE16#,ZRE162201204-201710

11 parts on this diagram · 2 diagrams in section
