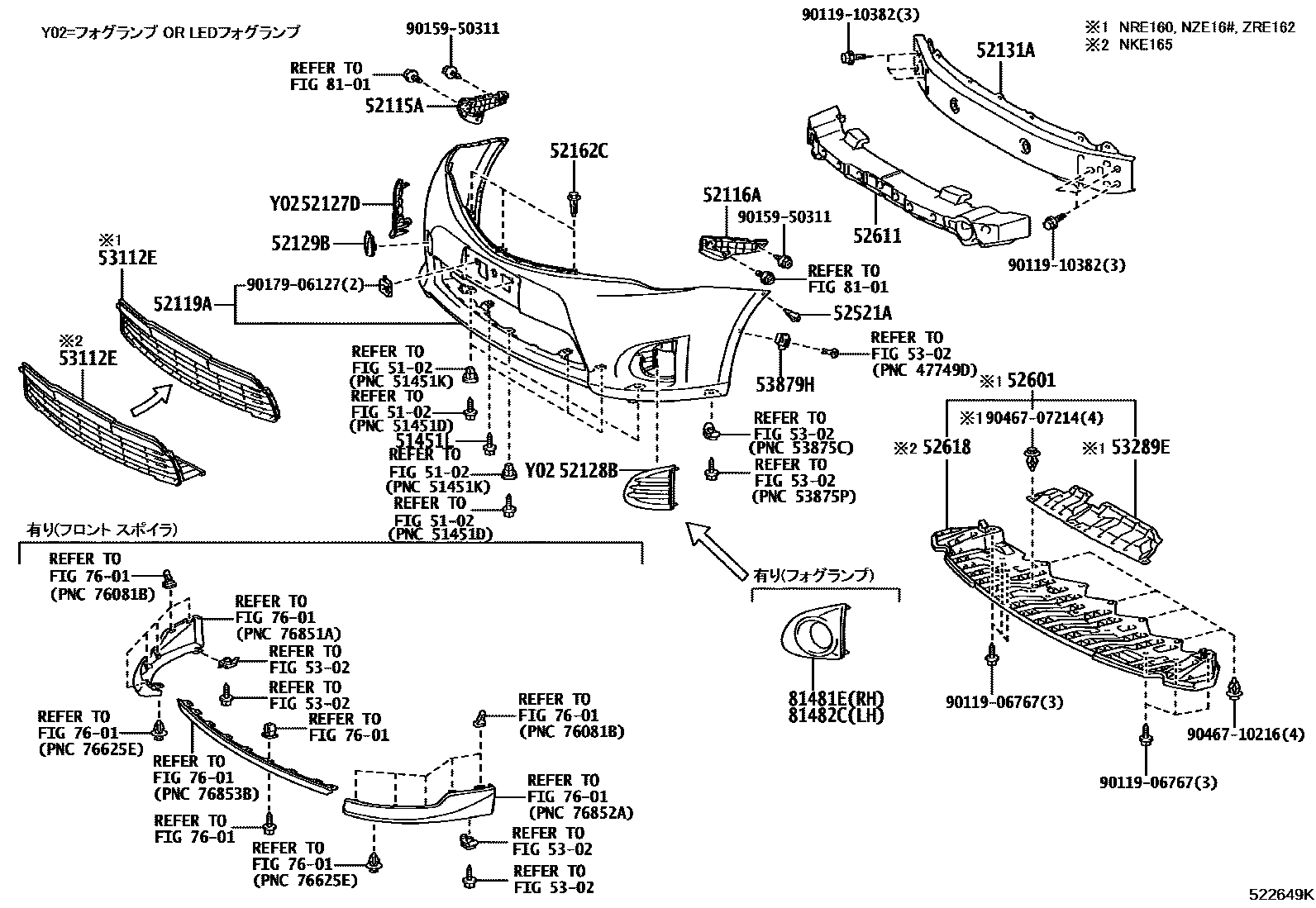

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

51451LBOLT, NO.1

main90119-06767×3iNKE165,NRE16#,NZE16#,ZRE162201503-201710

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12470iNKE165,NRE160,NZE16#,ZRE162201204-201503

main52115-12510iNKE165,NRE16#,NZE16#,ZRE162201710

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12430iNKE165,NRE160,NZE16#,ZRE162201204-201503

main52116-12460iNKE165,NRE16#,NZE16#,ZRE162201503-201710

52119ACOVER, FRONT BUMPER

main52119-12995-A0iNKE165,NRE161,NZE164202403

SUPER WHITE 2,040

main52119-12995-B0iNKE165,NRE161,NZE164202403

SILVER ME.,1F7

main52119-12995-C0iNKE165,NRE161,NZE164202403

BLACK MC.,209

main52119-12995-E1iNKE165,NRE161,NZE164..4D202403

AVINT-GARDE BRONZE ME.,4V8

main52119-12995-E2iNKE165,NRE16#,NZE164..4D..(HBD,X); NKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

main52119-12995-J0iNKE165,NRE161,NZE164..5D202403

BLUE ME.,8T7

main52119-12995-J2iNKE165,NRE161,NZE164..5D202403

DK.BLUE M.M.,8W7

main52119-12E50-A0iNKE165,NRE160,NZE16#,ZRE162201204-201503

SUPER WHITE 2,040

main52119-12E50-A1iNZE161..4D..5F;NZE16#..4D..CVT..X;NKE165,NRE160,ZRE162;NZE16#..CVT..(G,LXL)201204-201503

WHITE PEARL CS.,070

main52119-12E50-B0iNKE165,NRE160,NZE16#,ZRE162201204-201503

SILVER ME.,1F7

main52119-12E50-B1iNKE165,NRE160,NZE16#..4D201204-201503

MELLOW SILVER ME.,1J5

main52119-12E50-C0iNKE165,NRE160,NZE16#,ZRE162201204-201503

BLACK MC.,209

main52119-12E50-D0iNKE165,NRE160,NZE16#..4D201204-201503

BLACKISH RED MC.,3R0

main52119-12E50-D1iNKE165,NZE16#,ZRE162..5D201204-201503

SUPER RED 5,3P0

main52119-12E50-E0iNKE165,NZE16#,ZRE162..5D201204-201503

BRONZE M.M.,4T3

main52119-12E50-J0iNKE165,NRE160,NZE16#..4D201204-201503

DK.BLUE MC.,8S6

main52119-12E50-J1iNKE165,NZE16#,ZRE162..5D201204-201503

BLUE ME.,8T7

main52119-12E50-J2iNKE165201307-201503

BLUE ME.,8N0

main52119-12E50-K0iNKE165,NZE16#,ZRE162..5D201204-201503

DK.VIOLET M.M.,9AF

main52119-12E60-A0iNKE165,NRE16#,NZE16#,ZRE162; NKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G201503-201710

main52119-12E60-A1supersedes 52119-12995-A1iNKE165,NRE16#,NZE16#,ZRE162; NKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G; ZRE162201503-201710

main52119-12E60-B0iNKE165,NRE16#,NZE16#,ZRE162; NKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G201503-201710

main52119-12E60-B1iNKE165,NRE16#,NZE16#..4D201503-201710

MELLOW SILVER ME.,1J5

main52119-12E60-C0supersedes 52119-12995-C0iNKE165,NRE16#,NZE16#,ZRE162; NKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G; ZRE162201503-201710

main52119-12E60-D0iNKE165,NRE161,NZE16#,ZRE162..5D; NKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G201503-201710

main52119-12E60-E0iNKE165,NRE161,NZE16#,ZRE162..5D; NKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G201503-201710

main52119-12E60-E2iNKE165,NRE16#,NZE16#..4D201503-201710

VINTAGE BROWN PEARL CS.,4X4

main52119-12E60-J0iNKE165; NKE165..5D..HBDG201503-201710

main52119-12E60-J1iNKE165,NRE16#,NZE16#..4D201503-201710

DK.BLUE MC.,8S6

main52119-12E60-J2iNKE165,NRE161,NZE16#,ZRE162..5D; NKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G201503-201710

main52119-12G40-A0iNKE165,NRE16#,NZE16#..HBD,X201710-202403

SUPER WHITE 2,040

main52119-12G40-A1iNKE165,NRE16#,NZE16#..HBD,X; NZE161,ZRE162..G,S;NKE165,NRE161,NZE164..5D..(G,HBDG)201710-201908

WHITE PEARL CS.,070

main52119-12G40-B0iNZE161,ZRE162..G,S;NKE165,NRE161,NZE164..5D..(G,HBDG)201710

SILVER ME.,1F7

main52119-12G40-C0iNZE161202403

BLACK MC.,209

main52119-12G40-D1iNKE165,NRE16#,NZE16#..HBD,X; NZE161,ZRE162..G,S;NKE165,NRE161,NZE164..5D..(G,HBDG)201710-201908

COOL BORDEAUX GF.,3T9

main52119-12G40-E0iNKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S); NKE165,NRE161,NZE16#..5D..(HBD,X)201710-201908

ORANGE ME.,4R8

main52119-12G40-E1iNKE165,NRE16#,NZE16#..4D..(HBD,X)201710-202403

AVANT-GARDE BRONZE ME.,4V8

main52119-12G40-E2iNKE165,NRE16#,NZE16#..4D..(HBD,X); NZE161..4D..G201710-201908

VINTAGE BROWN PEARL CS.,4X4

main52119-12G40-J0iNKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S)201710-201908

BLUE ME.,8T7

main52119-12G40-J1iNZE161..5D202403

DK.BLUE M.M.,8W7

main52119-12995-A1iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S); NKE165,NRE161,NZE164..4D..(G,HBDG); NRE160,ZRE162;NKE165,NRE161,NZE164..5D;NKE165,NRE161,NZE164..4D..(HBD,X)201710-201908

main52119-12995-C1iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S); NKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

main52119-12995-D0iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S); NKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

main52119-12995-D1iNKE165,NRE161,NZE164..4D..(G,HBDG); NRE160,ZRE162;NKE165,NRE161,NZE164..5D;NKE165,NRE161,NZE164..4D..(HBD,X)201710-201908

main52119-12995-E0iNKE165,NRE161,NZE164,ZRE162..5D201710-201908

main52119-12E60-D2iNKE165..5D..HBDG; NRE161,NZE164..5D..G; ZRE162201503-201710

main52119-12G40-C1iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S)201710-201908

main52119-12G40-D0iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S)201710-201908

main52119-12G60-A0iNZE161..KYO201802

main52119-12G60-B0iNZE161..KYO201802

main52119-12G60-C0iNZE161..KYO201802

main52119-12G60-E0iNZE161..KYO202009

main52119-13520-A0iNZE16#..5D..CVT..G; ZRE162201212-201503

main52119-13520-A1iNKE165,NZE16#,ZRE162..5D..CVT..(G,HBDG,S); NZE16#..5D..CVT..G; ZRE162201212-201503

main52119-13520-B0iNZE16#..5D..CVT..G; ZRE162201212-201503

main52119-13520-C0iNKE165..5D..HBDG201307-201503

main52119-13520-D0iNZE16#..5D..CVT..G; ZRE162201212-201503

main52119-13520-E0iNZE16#..5D..CVT..G; ZRE162201212-201503

main52119-13520-J0iNKE165..5D..HBDG201307-201503

main52119-13520-J1iNKE165..5D..HBDG201307-201503

main52119-13520-K0iNZE16#..5D..CVT..G; ZRE162201212-201503

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-12340iNKE165,NRE160,NZE16#,ZRE162..G,HBD,HBDG,S,X201204-201503

main52127-12360iNKE165,NRE16#,NZE16#..HBD,X201503-201710

main52127-12380iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S201503-201710

main52127-12400iNKE165,NRE16#,NZE16#..HBD,X201710

main52127-12410iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S201710-201908

main52127-13170iNKE165,NRE161,NZE164..5D..(G,HBDG)201604-201710

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-12270iNKE165,NRE160,NZE16#,ZRE162..G,HBD,HBDG,S,X201204-201503

main52128-12280iNKE165,NRE16#,NZE16#..HBD,X201503-201710

main52128-12310iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S201503-201710

main52128-12400iNKE165,NRE16#,NZE16#..HBD,X201710

main52128-12410iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S201710-201908

main52128-13190iNKE165,NRE161,NZE164..5D..(G,HBDG)201604-201710

52129BCOVER, FRONT BUMPER, LOWER

main52129-12090-A0iNKE165,NRE160,NZE16#,ZRE162201204-201503

SUPER WHITE 2,040

main52129-12090-A1iNZE161..4D..5F;NZE16#..4D..CVT..X;NKE165,NRE160,ZRE162;NZE16#..CVT..(G,LXL)201204-201503

WHITE PEARL CS.,070

main52129-12090-B0iNKE165,NRE160,NZE16#,ZRE162201204-201503

SILVER ME.,1F7

main52129-12090-B1iNKE165,NRE160,NZE16#..4D201204-201503

MELLOW SILVER ME.,1J5

main52129-12090-C0iNKE165,NRE160,NZE16#,ZRE162201204-201503

BLACK MC.,209

main52129-12090-D0iNKE165,NRE160,NZE16#..4D201204-201503

BLACKISH RED MC.,3R0

main52129-12090-D1iNKE165,NZE16#,ZRE162..5D201204-201503

SUPER RED 5,3P0

main52129-12090-E0iNKE165,NZE16#,ZRE162..5D201204-201503

BRONZE M.M.,4T3

main52129-12090-J0iNKE165,NRE160,NZE16#..4D201204-201503

DK.BLUE MC.,8S6

main52129-12090-J1iNKE165,NZE16#,ZRE162..5D201204-201503

BLUE ME.,8T7

main52129-12090-J2iNKE165201307-201503

BLUE ME.,8N0

main52129-12090-K0iNKE165,NZE16#,ZRE162..5D201204-201503

DK.VIOLET M.M.,9AF

main52129-12120iNKE165,NRE16#,NZE16#..HBD,X201503-201710

main52129-12140iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S201503-201710

main52129-12150iNKE165,NRE16#,NZE16#..HBD,X201710

main52129-12160iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S201710-201908

main52129-12170iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S); NKE165,NRE161,NZE164,ZRE162..G,HBDG,S201710-201908

main52129-13010iNKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G; ZRE162201503-201710

52131AREINFORCEMENT, FRONT BUMPER

main52131-52250iNKE165,NRE160,NZE16#,ZRE162201204-201503

52162CPIECE, FRONT BUMPER

main52161-16010×3iNKE165,NRE160,NZE16#,ZRE162201204-201503

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05090-B1×2iNRE160,NZE16#,ZRE162201204-201303

DK.GRAY

main90467-05170×2iNKE165,NRE160,NZE16#,ZRE162201304-201503

52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY

main52601-12310iNRE160,NZE16#,ZRE162201204-201503

main52601-12320iNKE165,NRE161,NZE16#..HBD,X201710

52611ABSORBER, FRONT BUMPER ENERGY

main52611-12340iNKE165,NRE160,NZE16#,ZRE162201204-201503

main52611-12350iNKE165,NRE16#,NZE16#,ZRE162201503-201710

main52611-12430iNKE165,NRE16#,NZE16#,ZRE162201710

52618ABSORBER, FRONT BUMPER, LOWER

main52618-12050iNKE165201307-201503

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-12200iNKE165201307-201503

main53112-12300iNKE165,NRE16#,NZE16#..HBD,X201503-201710

main53112-12320iNRE160,NZE16#,ZRE162201204-201503

main53112-12400iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S201503-201710

main53112-12480iNKE165,NRE161,NZE164..HBD,X201710-202403

main53112-12490iNKE165,NRE161,NZE164202403

main53112-12500iNZE161,ZRE162..G,S;NKE165,NRE161,NZE164..5D..(G,HBDG)201710-201908

main53112-12510iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S); NKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

main53112-12520iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S)201710-201908

main53112-12530supersedes 53112-12510iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S); NKE165,NRE161,NZE164..4D..(G,HBDG)201710-201908

main53112-12600iNZE161..KYO201802

main53112-13050iNKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G; ZRE162201503-201710

main53112-13070iNKE165,NRE161,NZE164..5D..(G,HBDG)201604-201710

53289ECOVER, RADIATOR SUPPORT OPENING

main53289-12050iNRE160,NZE16#,ZRE162201204-201503

main53289-12070iNKE165,NRE161,NZE16#..HBD,X201710

53879HRETAINER, FRONT FENDER LINER

main53879-30050×2iNKE165,NRE16#,NZE16#,ZRE162201710-201712

main53879-30060×2iNKE165,NRE16#,NZE16#,ZRE162201712

main53879-50020×2iNKE165,NRE160,NZE16#,ZRE162201401-201503

main53879-58010×2iNKE165,NRE160,NZE16#,ZRE162201204-201312

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

8101HEADLAMP

→ Go to FIG 81-01

81481ECOVER, FOG LAMP, RH

main52127-12330iNKE165,NRE160,NZE16#,ZRE162..G,HBD,HBDG,S,X; NKE165,NZE16#,ZRE162..5D..(G,HBDG,S); NZE16#..LXL201204-201503

main52030-12130iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S); NKE165,NRE161,NZE164,ZRE162..G,HBDG,S201710-201908

main52127-12430iNRE160201710-201908

main52127-12440iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S201710-201908

main52127-13130iNKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G; ZRE162201503-201710

main52127-13140iNKE165,NRE16#,NZE16#,ZRE162201503-201710

81482CCOVER, FOG LAMP, LH

main52128-12260iNKE165,NRE160,NZE16#,ZRE162..G,HBD,HBDG,S,X; NKE165,NZE16#,ZRE162..5D..(G,HBDG,S); NZE16#..LXL201204-201503

main52040-12130iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S); NKE165,NRE161,NZE164,ZRE162..G,HBDG,S201710-201908

main52128-12430iNKE165,NRE161,NZE16#..HBD,X201710

main52128-12440iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S201710-201908

main52128-13150iNKE165..5D..HBDG; NRE161,NZE16#..5D..G; NRE161,NZE164..5D..G; ZRE162201503-201710

main52128-13160iNKE165,NRE16#,NZE16#,ZRE162201503-201710

9011906767

main90119-06767

9011910382

main90119-10382

9015950311

main90159-50311

9017906127

main90179-06127

9046707214

main90467-07214

9046710216

main90467-10216

28 parts on this diagram · 3 diagrams in section
