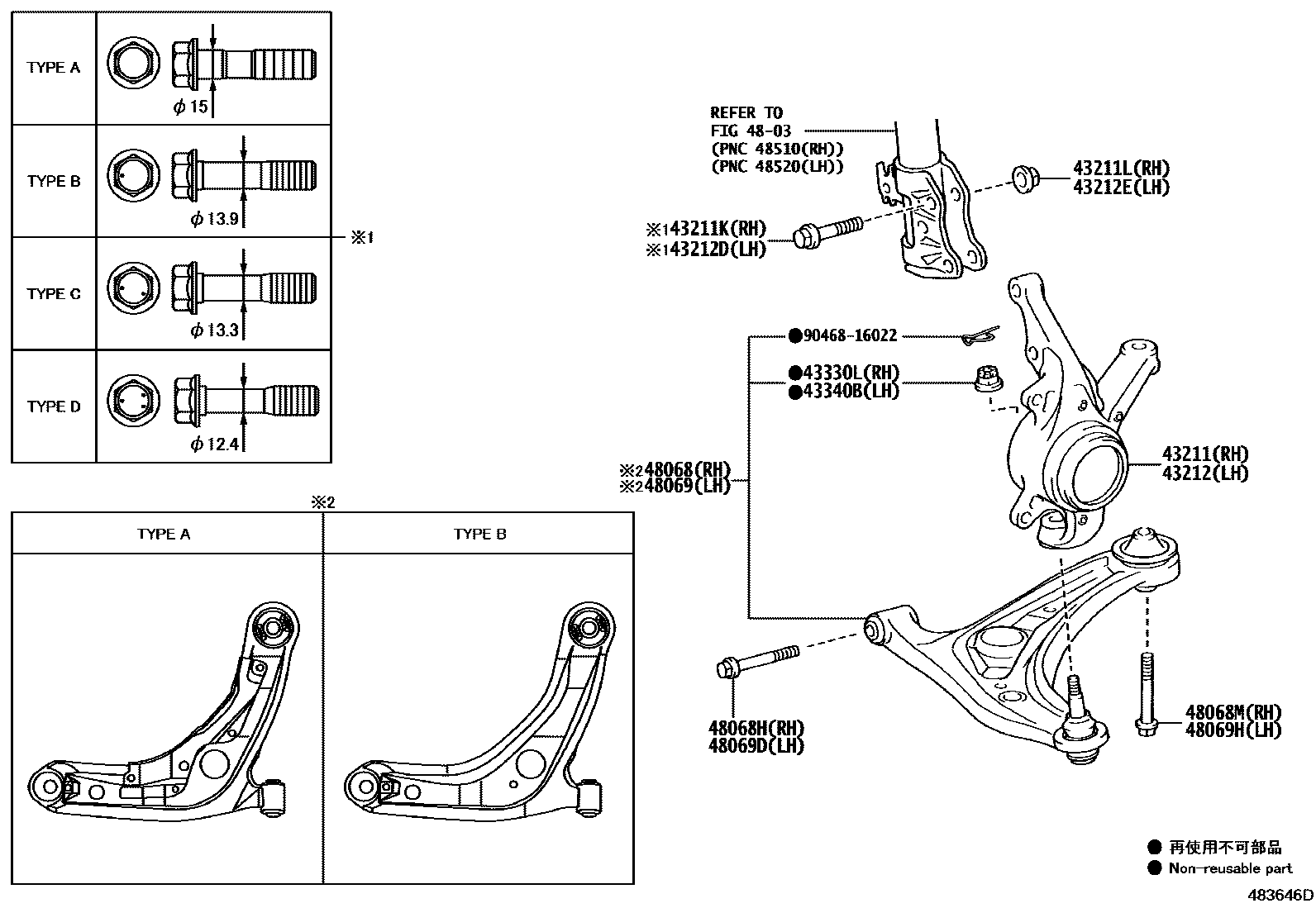

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-52050iNKE165,NRE160,NZE16#,ZRE162201204-201503

43211KBOLT (FOR STEERING KNUCKLE RH)

main90109-15001×2iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X201710-201908

main90109-15002iNKE165,NRE160,NZE16#,ZRE162201204-201503

main90109-15003iNKE165,NRE16#,NZE16#,ZRE162201503-201710

main90109-15004iNKE165,NRE160,NZE16#,ZRE162201204-201503

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15004×2iNKE165,NRE161,NZE16#..HBD,X201710

43212KNUCKLE, STEERING, LH

main43212-52050iNKE165,NRE160,NZE16#,ZRE162201204-201503

43212DBOLT (FOR STEERING KNUCKLE LH)

main90109-15001×2iNKE165,NRE161,NZE16#..HBD,X201710

main90109-15002iNKE165,NRE160,NZE16#,ZRE162201204-201503

main90109-15003iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X201710-201908

main90109-15004iNKE165,NRE16#,NZE16#,ZRE162201503-201710

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15004×2iNKE165,NRE160,NZE16#,ZRE162201204-201503

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iNKE165,NRE16#,NZE16#,ZRE162201503-201710

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X201710-201908

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-59145iNKE165,NRE160,NZE16#,ZRE162201204-201503

main48068-59155iNKE165,NRE161,NZE16#..HBD,X201710

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086iNKE165,NRE160,NZE16#,ZRE162201204-201503

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14144iNRE160,NZE161,ZRE162201204-201211

main90119-14145iNZE164201204-201401

main90119-14151iNKE165,NRE160,NZE161,ZRE162201212-201503

main90119-14152iNZE164201402-201503

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-59135iNKE165,NRE160,NZE16#,ZRE162201204-201503

main48069-59145iNKE165,NRE161,NZE16#..HBD,X201710

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086iNKE165,NRE161,NZE16#..HBD,X201710

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14144iNRE160,NZE161,ZRE162201204-201211

main90119-14145iNZE164201204-201401

main90119-14151iNRE161,NZE161..G;NKE165,NRE160,ZRE162..HBDG,S,X201710-201908

main90119-14152iNZE164..X201710

9046816022

main90468-16022

16 parts on this diagram · 1 diagram in section
