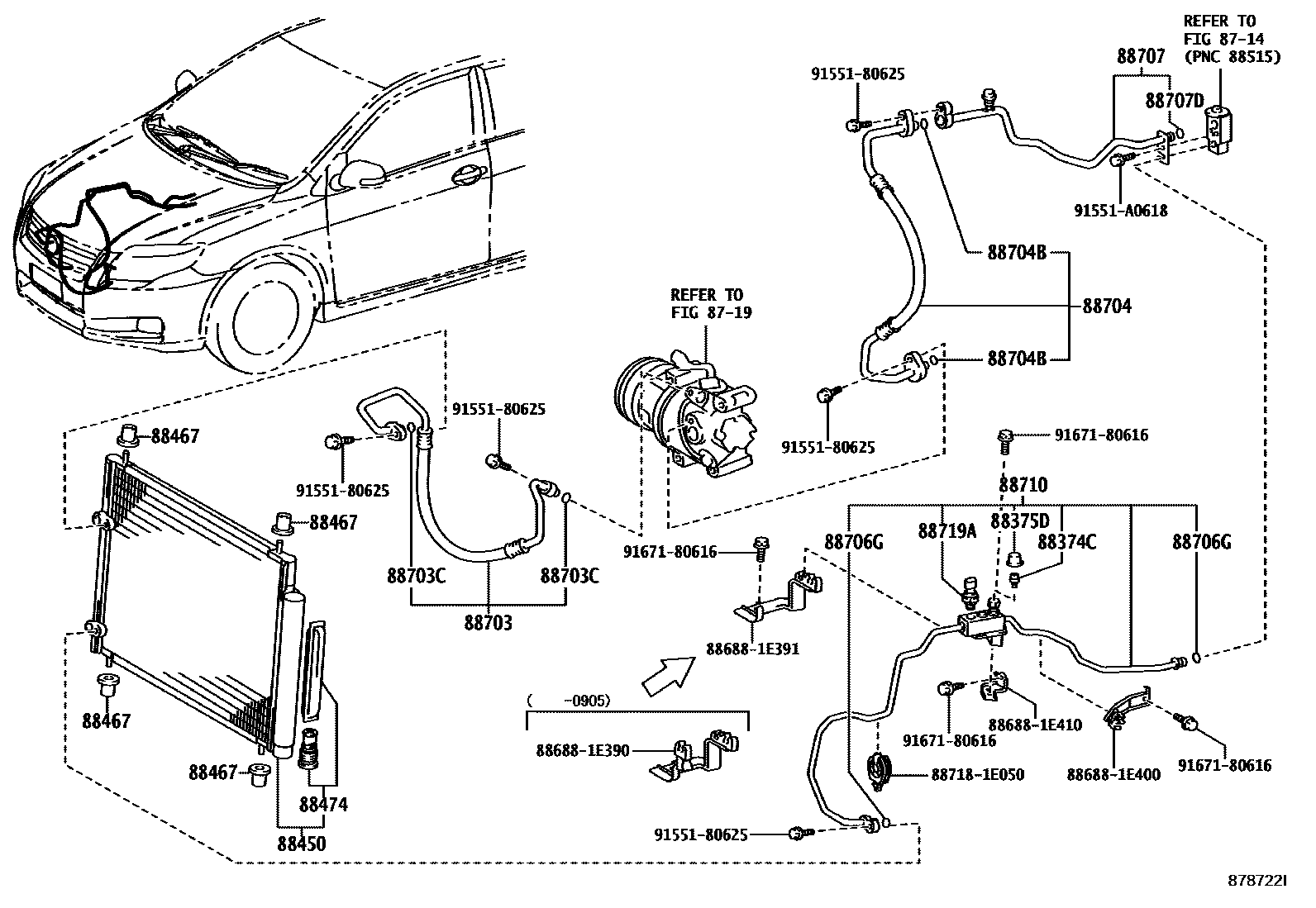

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374CVALVE, SERVICE, NO.2

main88374-30010iNZE14#,ZRE14#200810

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iNZE14#,ZRE14#200810

88450CONDENSER ASSY, W/RECEIVER

main88450-12280iNZE14#,ZRE14#200609-200810

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010×4iNZE14#,ZRE14#200609-200810

88474DRYER, COOLER

main88474-12030iNZE14#,ZRE14#200609-200810

88703HOSE SUB-ASSY, DISCHARGE

main88703-12880iNZE14#200609-200810

main88703-12890iZRE14#200810

88703CRING, O(FOR DISCHARGE HOSE)

main90099-14120×2iNZE14#,ZRE14#200609-200810

88704HOSE SUB-ASSY, SUCTION

main88704-1A230iNZE14#200810

main88704-1A240iZRE14#200609-200810

88704BRING, O(FOR SUCTION HOSE)

main90099-14121×2iNZE14#,ZRE14#200609-200810

88706GRING, O(FOR LIQUID TUBE)

main90099-14119×2iNZE14#,ZRE14#200609-200810

88707PIPE SUB-ASSY, SUCTION

main88707-12260iNZE14#,ZRE14#200609-200810

88707DRING, O(FOR SUCTION TUBE)

main90099-14121iNZE14#,ZRE14#200609-200810

88710TUBE ASSY, AIR CONDITIONER

main88710-12820iNZE14#,ZRE14#200609-200810

main88710-12821iNZE14#,ZRE14#200905

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iNZE14#,ZRE14#200609-200810

886881E390BRACKET, COOLER DIAPHRAGM

main88688-1E390

886881E391BRACKET, COOLER DIAPHRAGM

main88688-1E391

886881E400BRACKET, COOLER DIAPHRAGM

main88688-1E400

886881E410BRACKET, COOLER DIAPHRAGM

main88688-1E410

887181E050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1E050

9155180625

main91551-80625

91551A0618

main91551-A0618

9167180616

main91671-80616

24 parts on this diagram · 2 diagrams in section
