SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1�������� 0004 1�������� �������� 0005 1��� 0006 1������������ 0007 1������������ 0008 1������� 0009 1���(�������-���������) 0010 1���,���,��� & ������� 0011 1���,���,��� & �������

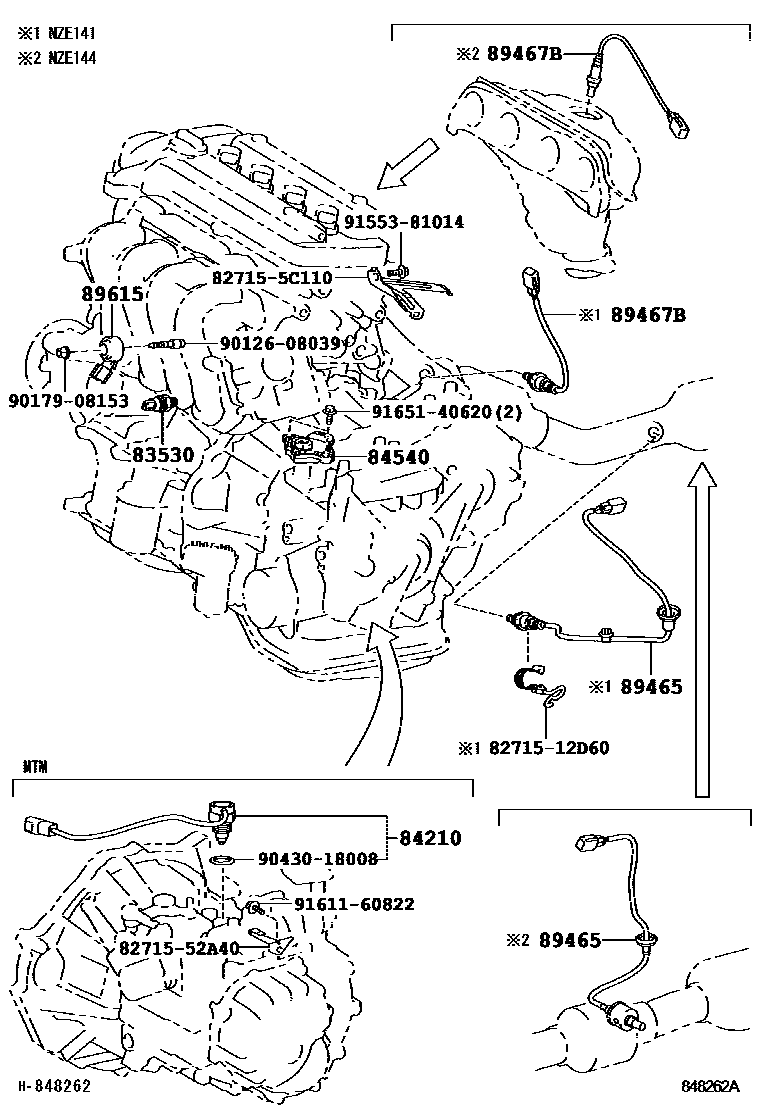

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNZE14#,ZRE14#200810

main83530-28020iNZE14#,ZRE14#200609-200810

main83530-60020iNZE14#,ZRE14#200609-200810

84210SWITCH ASSY, BACK-UP LAMP

main84210-52010iNZE141..5F200609-201204

84540SWITCH ASSY, NEUTRAL START

main84540-52070iNZE14#,ZRE14#..CVFC200609-201204

89465SENSOR, OXYGEN

main89465-12840iZRE142200609-201204

main89465-12850iZRE144200609-201204

main89465-12860iNZE141200609-201204

main89465-12870iNZE144200609-201204

89467BSENSOR, AIR FUEL RATIO

main89467-12030iZRE142200609-200810

main89467-12050iZRE144200609-200702

sub89467-12110

main89467-12060iNZE144200810-200910

main89467-12110iZRE144200703-200903

main89467-12180iNZE141200907

main89467-12220iNZE144200910

main89467-12230iNZE141200609-200810

main89467-12240iNZE144200609-200810

main89467-52010iNZE141200810-200907

sub89467-12180

main89467-68020iZRE144200903

89615SENSOR, KNOCK CONTROL

main89615-20090iNZE14#,ZRE14#200609-200810

8271512D60BRACKET,WIRING HARNESS CLAMP

main82715-12D60

8271552A40BRACKET,WIRING HARNESS CLAMP

main82715-52A40

827155C110BRACKET,WIRING HARNESS CLAMP

main82715-5C110

9012608039

main90126-08039

9017908153

main90179-08153

9043018008

main90430-18008

9155381014

main91553-81014

9161160822

main91611-60822

9165140620

main91651-40620

15 parts on this diagram · 11 diagrams in section
