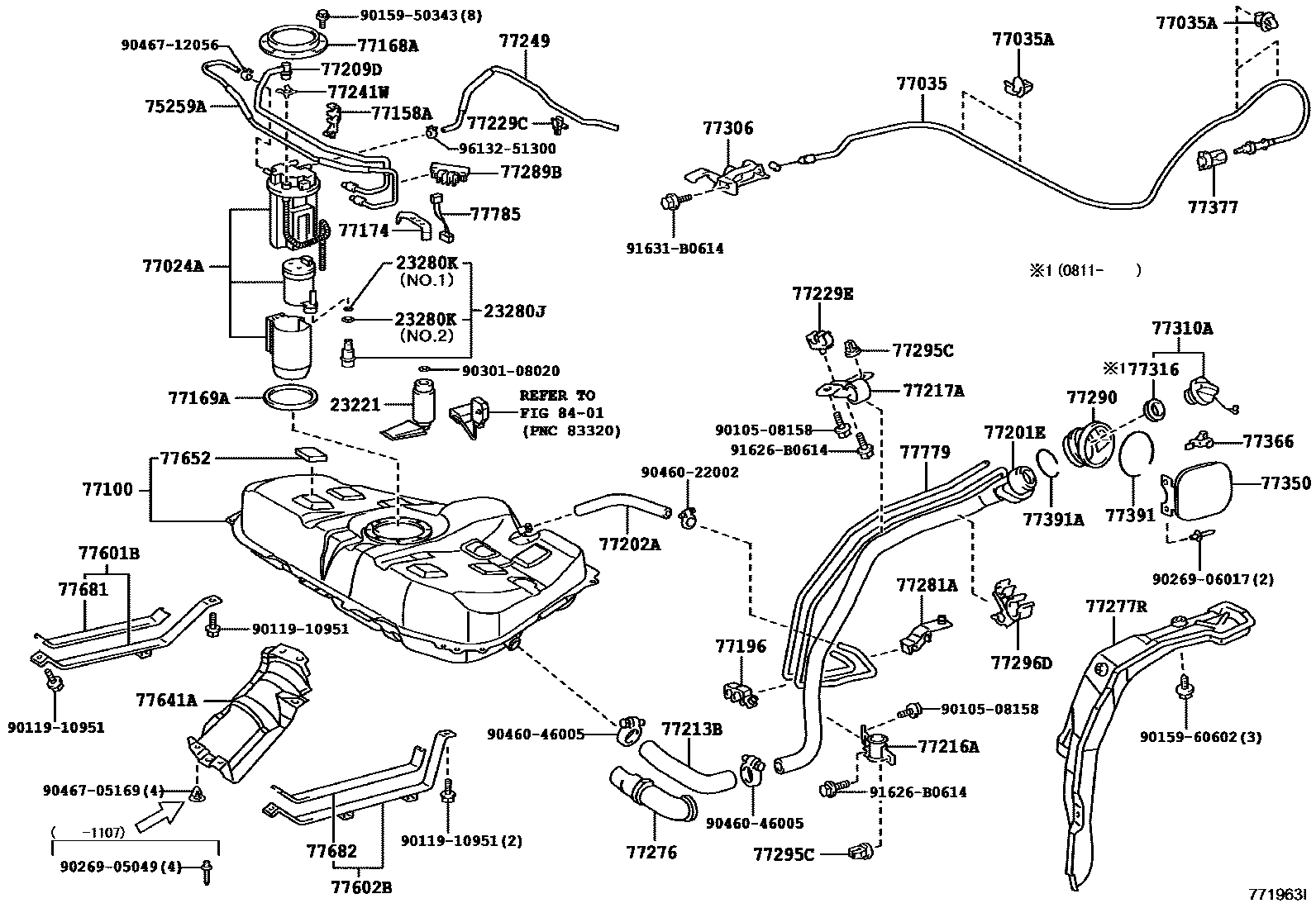

FUEL TANK & TUBE
23221PUMP, FUEL
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
75259AHOSE, FUEL
77024APLATE SUB-ASSY, FUEL SUCTION
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)
77158ASUPPORT, TANK SUCTION TUBE
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77196CLAMP, EVAPORATION VENT TUBE, NO.1
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77229CCLAMP, BREATHER TUBE
77229ECLAMP, BREATHER TUBE
77249HOSE, FUEL EMISSION
77276PROTECTOR, FUEL HOSE
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281ACLAMP, FUEL FILLER PIPE
77289BCLAMP, FUEL TUBE, NO.3
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77295CGROMMET, FUEL TUBE
77296DPLATE, FUEL TUBE SUPPORT
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77641APROTECTOR, FUEL TANK, NO.1
77652CUSHION, FUEL TANK, NO.1
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77779TUBE, CHARCOAL CANISTER OUTLET
77785HARNESS, FUEL PUMP
8401SWITCH & RELAY & COMPUTER
9010508158
main90105-08158
9011910951
main90119-10951
9015950343
main90159-50343
9015960602
main90159-60602
9026905049
main90269-05049
9026906017
main90269-06017
9030108020
main90301-08020
9046022002
main90460-22002
9046046005
main90460-46005
9046705169
main90467-05169
9046712056
main90467-12056
91626B0614
main91626-B0614
91631B0614
main91631-B0614
9613251300
main96132-51300
61 parts on this diagram · 3 diagrams in section
