FRONT DOOR LOCK & HANDLE

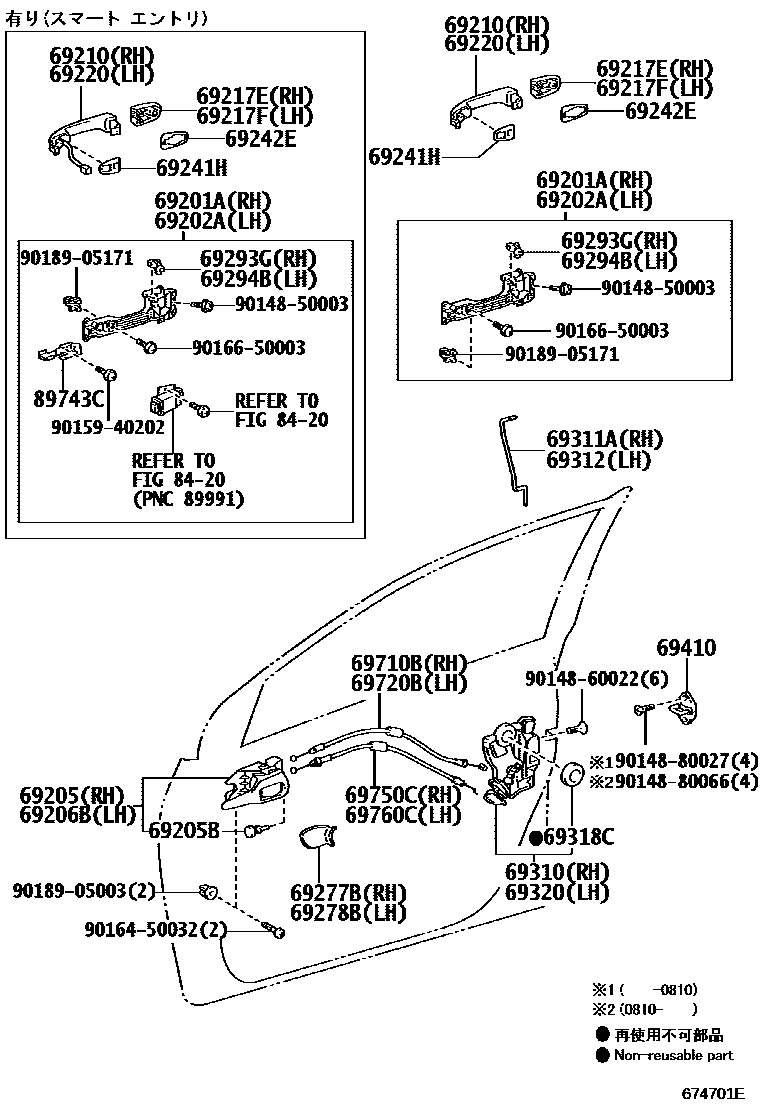

Parts diagram
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-52040i200609-200810
main69201-52060i200810
main69201-52060i200609-200810
main69201-52060i200810
main69201-52060i200609-200810
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-52020i200609-200810
main69202-52040i200609-200810
main69202-52040i200810
main69202-52040i200810
main69202-52040i200609-200810
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-12220-B4i200609-201204
SILVER,TRIM1#,4#
main69205-12220-B4i200609-201005
SILVER,TRIM1#
main69205-12220-B4i200609-200810
main69205-12220-B4i200609-200810
main69205-12220-B4i200810-201204
main69205-12220-B4i201005-201204
SILVER,TRIM12
main69205-12230-B0i200810-201204
DK.GRAY,TRIM1#
main69205-12230-B0i200609-200810
DK.GRAY,TRIM12
main69205-12230-B1i200810-201204
GRAY,TRIM1#
main69205-12230-B1i200609-200810
GRAY,TRIM13
main69205-12230-E0i200609-201204
GREGE,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04027i200609-200810
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-12220-B4i200609-200810
main69206-12220-B4i200609-200810
main69206-12220-B4i200609-201204
SILVER,TRIM1#,4#
main69206-12220-B4i200609-201005
SILVER,TRIM1#
main69206-12220-B4i201005-201204
SILVER,TRIM12
main69206-12220-B4i200810-201204
main69206-12230-B0i200609-200810
DK.GRAY,TRIM12
main69206-12230-B0i200810-201204
DK.GRAY,TRIM1#
main69206-12230-B1i200609-200810
GRAY,TRIM13
main69206-12230-B1i200810-201204
GRAY,TRIM1#
main69206-12230-E0i200609-201204
GREGE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-12320-A0i200609-200810
sub69210-12320
main69210-12320-A0i200609-201204
SUPER WHITE 2,040
sub69210-12320
main69210-12320-A0i200609-200810
sub69210-12320
main69210-12320-A0i200810-201204
sub69210-12320
main69210-12320-A5i200810-201204
sub69210-12320
main69210-12320-A5i200609-201204
WHITE PEARL CS.,070
sub69210-12320
main69210-12320-B6i200609-200810
GRAY ME.,1G3
sub69210-12320
main69210-12320-B7i200609-201204
SILVER ME.,1F7
sub69210-12320
main69210-12320-B7i200609-200810
sub69210-12320
main69210-12320-B7i200810-201204
sub69210-12320
main69210-12320-B7i200609-200810
sub69210-12320
main69210-12320-C0i200609-200810
sub69210-12320
main69210-12320-C0i200609-201204
BLACK MC.,209
sub69210-12320
main69210-12320-C0i200609-200810
sub69210-12320
main69210-12320-C0i200810-201204
sub69210-12320
main69210-12320-C1i201005-201204
BLACK,202
sub69210-12320
main69210-12320-D6i200609-201204
RED M.M.,3R3
sub69210-12320
main69210-12320-D6i200810-201204
sub69210-12320
main69210-12320-D6i200609-200810
sub69210-12320
main69210-12320-D6i200609-200810
sub69210-12320
main69210-12320-E6i200609-200810
BEIGE M. M.,4Q2
sub69210-12320
main69210-12320-E7i200609-200810
sub69210-12320
main69210-12320-E7i200609-200810
sub69210-12320
main69210-12320-E7i200609-200810
COPPER ME.,4T4
sub69210-12320
main69210-12320-F3i200810-201204
sub69210-12320
main69210-12320-F3i200810-201204
GOLD M.M.,5A5
sub69210-12320
main69210-12320-G9i200609-200810
LT.GREEN ME.,6U6
sub69210-12320
main69210-12320-J8i200609-201204
DK.BLUE MC.,8S6
sub69210-12320
main69210-12320-J8i200609-200810
sub69210-12320
main69210-12320-J8i200609-200810
sub69210-12320
main69210-12320-J8i200810-201204
sub69210-12320
main69210-12320-L1i200810-201204
BRONZE M.M.,4T3
sub69210-12320
main69210-12320-L1i200810-201204
sub69210-12320
main69210-12320-L2i200810-201204
sub69210-12320
main69210-12320-L2i200810-201204
BEIGE ME.,4T8
sub69210-12320
main69210-12320-R5i200609-200810
sub69210-12320
main69210-12320-R5i200609-200810
sub69210-12320
main69210-12320-R5i200609-200810
LT.BLUE M.M.,8S7
sub69210-12320
main69210-12320-R6i200810-201204
sub69210-12320
main69210-12320-R6i200810-201204
BLUE ME.,8T7
sub69210-12320
main69210-12320-X2i200810-201204
DK RED MC,3Q7
sub69210-12320
main69210-12320-X2i200810-201204
sub69210-12320
main69211-12220-03i200609-201204
WHITE PEARL CS.,070
sub69211-12220
sub69211-52090
main69211-12220-51i200810-201204
GOLD M.M.,5A5
sub69211-12220
sub69211-52090
main69211-12220-A0i200609-201204
SUPER WHITE 2,040
sub69211-12220
sub69211-52090
main69211-12220-C2i200609-201204
BLACK MC.,209
sub69211-12220
sub69211-52090
main69211-12220-L3i200609-200810
BEIGE M. M.,4Q2
sub69211-12220
sub69211-52090
main69211-12220-L4i200609-200810
COPPER ME.,4T4
sub69211-12220
sub69211-52090
main69211-12220-L8i200810-201204
BRONZE M.M.,4T3
sub69211-12220
sub69211-52090
main69211-12220-L9i200810-201204
BEIGE ME.,4T8
sub69211-12220
sub69211-52090
main69211-12220-P2i200910-201110
DK.GRAY MC.,1E0
sub69211-12220
sub69211-52090
main69211-12220-P5i200609-200810
GRAY ME.,1G3
sub69211-12220
sub69211-52090
main69211-12220-P6i200609-201204
SILVER ME.,1F7
sub69211-12220
sub69211-52090
main69211-12220-Q4i200609-200810
LT.GREEN ME.,6U6
sub69211-12220
sub69211-52090
main69211-12220-R8i200609-201204
DK.BLUE MC.,8S6
sub69211-12220
sub69211-52090
main69211-12220-R9i200804-200810
GRAYISH BLUE ME.,8R3
sub69211-12220
sub69211-52090
main69211-12220-V1i200609-200810
LT.BLUE M.M.,8S7
sub69211-12220
sub69211-52090
main69211-12220-V2i200810-201204
BLUE ME.,8T7
sub69211-12220
sub69211-52090
main69211-12220-X4i200609-201204
RED M.M.,3R3
sub69211-12220
sub69211-52090
main69211-12220-X9i200810-201204
DK RED MC,3Q7
sub69211-12220
sub69211-52090
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69217-42020-04i200609-201204
WHITE PEARL CS.,070
sub69217-42020
sub69217-42010
main69217-42020-04i200810-201204
sub69217-42020
sub69217-42010
main69217-42020-04i200810-201204
sub69217-42020
sub69217-42010
main69217-42020-52i200810-201204
GOLD M.M.,5A5
sub69217-42020
sub69217-42010
main69217-42020-52i200810-201204
sub69217-42020
sub69217-42010
main69217-42020-A3i200609-201204
SUPER WHITE 2,040
sub69217-42020
sub69217-42010
main69217-42020-A3i200810-201204
sub69217-42020
sub69217-42010
main69217-42020-A3i200810-201204
sub69217-42020
sub69217-42010
main69217-42020-C0i201005-201204
BLACK,202
sub69217-42020
sub69217-42010
main69217-42020-C2i200810-201204
sub69217-42020
sub69217-42010
main69217-42020-C2i200609-201204
BLACK MC.,209
sub69217-42020
sub69217-42010
main69217-42020-C2i200810-201204
sub69217-42020
sub69217-42010
main69217-42020-L5i200609-200810
BEIGE M. M.,4Q2
sub69217-42020
sub69217-42010
main69217-42020-L6i200609-200810
COPPER ME.,4T4
sub69217-42020
sub69217-42010
main69217-42020-M0i200810-201204
BRONZE M.M.,4T3
sub69217-42020
sub69217-42010
main69217-42020-M0i200810-201204
sub69217-42020
sub69217-42010
main69217-42020-M1i200810-201204
BEIGE ME.,4T8
sub69217-42020
sub69217-42010
main69217-42020-M1i200810-201204
sub69217-42020
sub69217-42010
main69217-42020-P2i200910-201110
DK.GRAY MC.,1E0
sub69217-42020
sub69217-42010
main69217-42020-P5i200609-200810
GRAY ME.,1G3
sub69217-42020
sub69217-42010
main69217-42020-P6i200609-201204
SILVER ME.,1F7
sub69217-42020
sub69217-42010
main69217-42020-P6i200810-201204
sub69217-42020
sub69217-42010
main69217-42020-P6i200810-201204
sub69217-42020
sub69217-42010
main69217-42020-Q5i200609-200810
LT.GREEN ME.,6U6
sub69217-42020
sub69217-42010
main69217-42020-R9i200609-201204
DK.BLUE MC.,8S6
sub69217-42020
sub69217-42010
main69217-42020-R9i200810-201204
sub69217-42020
sub69217-42010
main69217-42020-V0i200804-200810
GRAYISH BLUE ME.,8R3
sub69217-42020
sub69217-42010
main69217-42020-V3i200609-200810
LT.BLUE M.M.,8S7
sub69217-42020
sub69217-42010
main69217-42020-V4i200810-201204
BLUE ME.,8T7
sub69217-42020
sub69217-42010
main69217-42020-V4i200810-201204
sub69217-42020
sub69217-42010
main69217-42020-X4i200609-201204
RED M.M.,3R3
sub69217-42020
sub69217-42010
main69217-42020-X4i200810-201204
sub69217-42020
sub69217-42010
main69217-42020-X9i200810-201204
DK RED MC,3Q7
sub69217-42020
sub69217-42010
main69217-42020-X9i200810-201204
sub69217-42020
sub69217-42010
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69217-12040-A0i200609-201204
SUPER WHITE 2,040
sub69217-12040
main69217-12040-A0i200810-201204
sub69217-12040
main69217-12040-A0i200810-201204
sub69217-12040
main69217-12040-A9i200609-201204
WHITE PEARL CS.,070
sub69217-12040
main69217-12040-A9i200810-201204
sub69217-12040
main69217-12040-A9i200810-201204
sub69217-12040
main69217-12040-B8i200910-201110
DK.GRAY MC.,1E0
sub69217-12040
main69217-12040-C1i201005-201204
BLACK,202
sub69217-12040
main69217-12040-C2i200810-201204
sub69217-12040
main69217-12040-C2i200609-201204
BLACK MC.,209
sub69217-12040
main69217-12040-C2i200810-201204
sub69217-12040
main69217-12040-D9i200609-201204
RED M.M.,3R3
sub69217-12040
main69217-12040-D9i200810-201204
sub69217-12040
main69217-12040-E9i200609-200810
BEIGE M. M.,4Q2
sub69217-12040
main69217-12040-F9i200810-201204
sub69217-12040
main69217-12040-F9i200810-201204
GOLD M.M.,5A5
sub69217-12040
main69217-12040-L0i200609-200810
COPPER ME.,4T4
sub69217-12040
main69217-12040-L4i200810-201204
BRONZE M.M.,4T3
sub69217-12040
main69217-12040-L4i200810-201204
sub69217-12040
main69217-12040-L5i200810-201204
sub69217-12040
main69217-12040-L5i200810-201204
BEIGE ME.,4T8
sub69217-12040
main69217-12040-P0i200609-200810
GRAY ME.,1G3
sub69217-12040
main69217-12040-P1i200609-201204
SILVER ME.,1F7
sub69217-12040
main69217-12040-P1i200810-201204
sub69217-12040
main69217-12040-P1i200810-201204
sub69217-12040
main69217-12040-Q2i200609-200810
LT.GREEN ME.,6U6
sub69217-12040
main69217-12040-R5i200810-201204
sub69217-12040
main69217-12040-R5i200609-201204
DK.BLUE MC.,8S6
sub69217-12040
main69217-12040-R6i200804-200810
GRAYISH BLUE ME.,8R3
sub69217-12040
main69217-12040-V0i200609-200810
LT.BLUE M.M.,8S7
sub69217-12040
main69217-12040-V1i200810-201204
sub69217-12040
main69217-12040-V1i200810-201204
BLUE ME.,8T7
sub69217-12040
main69217-12040-X4i200810-201204
DK RED MC,3Q7
sub69217-12040
main69217-12040-X4i200810-201204
sub69217-12040
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-12320-A0i200609-201204
SUPER WHITE 2,040
sub69210-12320
main69210-12320-A0i200609-200810
sub69210-12320
main69210-12320-A0i200609-200810
sub69210-12320
main69210-12320-A0i200810-201204
sub69210-12320
main69210-12320-A5i200609-201204
WHITE PEARL CS.,070
sub69210-12320
main69210-12320-A5i200810-201204
sub69210-12320
main69210-12320-B6i200609-200810
GRAY ME.,1G3
sub69210-12320
main69210-12320-B7i200609-201204
SILVER ME.,1F7
sub69210-12320
main69210-12320-B7i200609-200810
sub69210-12320
main69210-12320-B7i200609-200810
sub69210-12320
main69210-12320-B7i200810-201204
sub69210-12320
main69210-12320-C0i200609-201204
BLACK MC.,209
sub69210-12320
main69210-12320-C0i200609-200810
sub69210-12320
main69210-12320-C0i200609-200810
sub69210-12320
main69210-12320-C0i200810-201204
sub69210-12320
main69210-12320-C1i201005-201204
BLACK,202
sub69210-12320
main69210-12320-D6i200609-201204
RED M.M.,3R3
sub69210-12320
main69210-12320-D6i200609-200810
sub69210-12320
main69210-12320-D6i200609-200810
sub69210-12320
main69210-12320-D6i200810-201204
sub69210-12320
main69210-12320-E6i200609-200810
BEIGE M. M.,4Q2
sub69210-12320
main69210-12320-E7i200609-200810
COPPER ME.,4T4
sub69210-12320
main69210-12320-E7i200609-200810
sub69210-12320
main69210-12320-E7i200609-200810
sub69210-12320
main69210-12320-F3i200810-201204
GOLD M.M.,5A5
sub69210-12320
main69210-12320-F3i200810-201204
sub69210-12320
main69210-12320-G9i200609-200810
LT.GREEN ME.,6U6
sub69210-12320
main69210-12320-J8i200609-201204
DK.BLUE MC.,8S6
sub69210-12320
main69210-12320-J8i200609-200810
sub69210-12320
main69210-12320-J8i200609-200810
sub69210-12320
main69210-12320-J8i200810-201204
sub69210-12320
main69210-12320-L1i200810-201204
BRONZE M.M.,4T3
sub69210-12320
main69210-12320-L1i200810-201204
sub69210-12320
main69210-12320-L2i200810-201204
sub69210-12320
main69210-12320-L2i200810-201204
BEIGE ME.,4T8
sub69210-12320
main69210-12320-R5i200609-200810
sub69210-12320
main69210-12320-R5i200609-200810
sub69210-12320
main69210-12320-R5i200609-200810
LT.BLUE M.M.,8S7
sub69210-12320
main69210-12320-R6i200810-201204
sub69210-12320
main69210-12320-R6i200810-201204
BLUE ME.,8T7
sub69210-12320
main69210-12320-X2i200810-201204
sub69210-12320
main69210-12320-X2i200810-201204
DK RED MC,3Q7
sub69210-12320
main69211-12220-03i200609-201204
WHITE PEARL CS.,070
sub69211-12220
sub69211-52090
main69211-12220-51i200810-201204
GOLD M.M.,5A5
sub69211-12220
sub69211-52090
main69211-12220-A0i200609-201204
SUPER WHITE 2,040
sub69211-12220
sub69211-52090
main69211-12220-C2i200609-201204
BLACK MC.,209
sub69211-12220
sub69211-52090
main69211-12220-L3i200609-200810
BEIGE M. M.,4Q2
sub69211-12220
sub69211-52090
main69211-12220-L4i200609-200810
COPPER ME.,4T4
sub69211-12220
sub69211-52090
main69211-12220-L8i200810-201204
BRONZE M.M.,4T3
sub69211-12220
sub69211-52090
main69211-12220-L9i200810-201204
BEIGE ME.,4T8
sub69211-12220
sub69211-52090
main69211-12220-P2i200910-201110
DK.GRAY MC.,1E0
sub69211-12220
sub69211-52090
main69211-12220-P5i200609-200810
GRAY ME.,1G3
sub69211-12220
sub69211-52090
main69211-12220-P6i200609-201204
SILVER ME.,1F7
sub69211-12220
sub69211-52090
main69211-12220-Q4i200609-200810
LT.GREEN ME.,6U6
sub69211-12220
sub69211-52090
main69211-12220-R8i200609-201204
DK.BLUE MC.,8S6
sub69211-12220
sub69211-52090
main69211-12220-R9i200804-200810
GRAYISH BLUE ME.,8R3
sub69211-12220
sub69211-52090
main69211-12220-V1i200609-200810
LT.BLUE M.M.,8S7
sub69211-12220
sub69211-52090
main69211-12220-V2i200810-201204
BLUE ME.,8T7
sub69211-12220
sub69211-52090
main69211-12220-X4i200609-201204
RED M.M.,3R3
sub69211-12220
sub69211-52090
main69211-12220-X9i200810-201204
DK RED MC,3Q7
sub69211-12220
sub69211-52090
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-42020i200609-200810
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-42010i200609-200709
main69242-52020i200710-200810
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
main69277-12140-B0i200609-201204
DK.GRAY,TRIM1#
main69277-12140-B0i200609-200810
DK.GRAY,TRIM12
main69277-12140-B1i200609-200810
GRAY,TRIM13
main69277-12140-B1i200609-201204
GRAY,TRIM1#
main69277-12140-E0i200609-201204
GREGE,TRIM4#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
main69278-12140-B0i200609-201204
DK.GRAY,TRIM1#
main69278-12140-B0i200609-200810
DK.GRAY,TRIM12
main69278-12140-B1i200609-201204
GRAY,TRIM1#
main69278-12140-B1i200609-200810
GRAY,TRIM13
main69278-12140-E0i200609-201204
GREGE,TRIM4#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i200609-200810
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i200609-200810
69310LOCK ASSY, FRONT DOOR, RH
main69030-42210i200609-200810
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-12170i200609-200810
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-12170i200609-200810
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i200609-200810
69320LOCK ASSY, FRONT DOOR, LH
main69040-12550i200609-200810
main69040-12560i200609-200810
main69040-12560i200609-200810
main69040-12560i200810
main69040-12560i200810
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-20110i200609-200810
main69410-33010i200810
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-12130i200609-200810
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-12130i200609-200810
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-12160i200609-200810
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-12160i200609-200810
8420
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
main89743-47010i200609-200810
main89743-47010i200609-201204
main89743-47010i200810-201204
main89743-47010i200609-200810
main89743-47020i200810-201204
main89743-47020i200609-201204
main89743-47020i200609-200810
main89743-47020i200609-200810
9014850003
main90148-50003
9014860022
main90148-60022
9014880027
main90148-80027
9014880066
main90148-80066
9015940202
main90159-40202
9016450032
main90164-50032
9016650003
main90166-50003
9018905003
main90189-05003
9018905171
main90189-05171

36 parts on this diagram · 1 diagram in section
