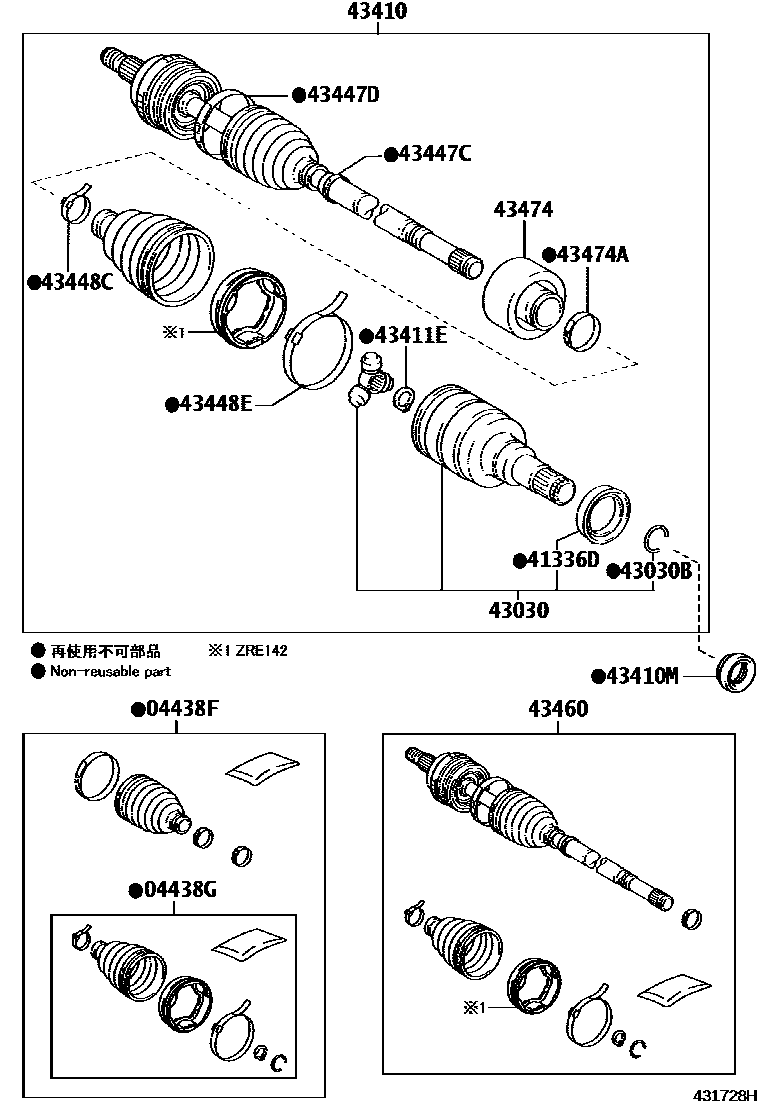

Toyota COROLLA AXIO/FIELDER151 — FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)
43410SHAFT ASSY, FRONT DRIVE, RH
43410MOIL SEAL, FRONT DRIVE SHAFT, RH
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)
15 parts on this diagram · 3 diagrams in section
FRONT DRIVE SHAFT for Toyota COROLLA AXIO/FIELDER151
This section contains 36 genuine Toyota parts for the FRONT DRIVE SHAFT system of the Toyota COROLLA AXIO/FIELDER151. Key components include: BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH, BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH, BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH, BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH, TRANSAXLE ASSY(CVT).
