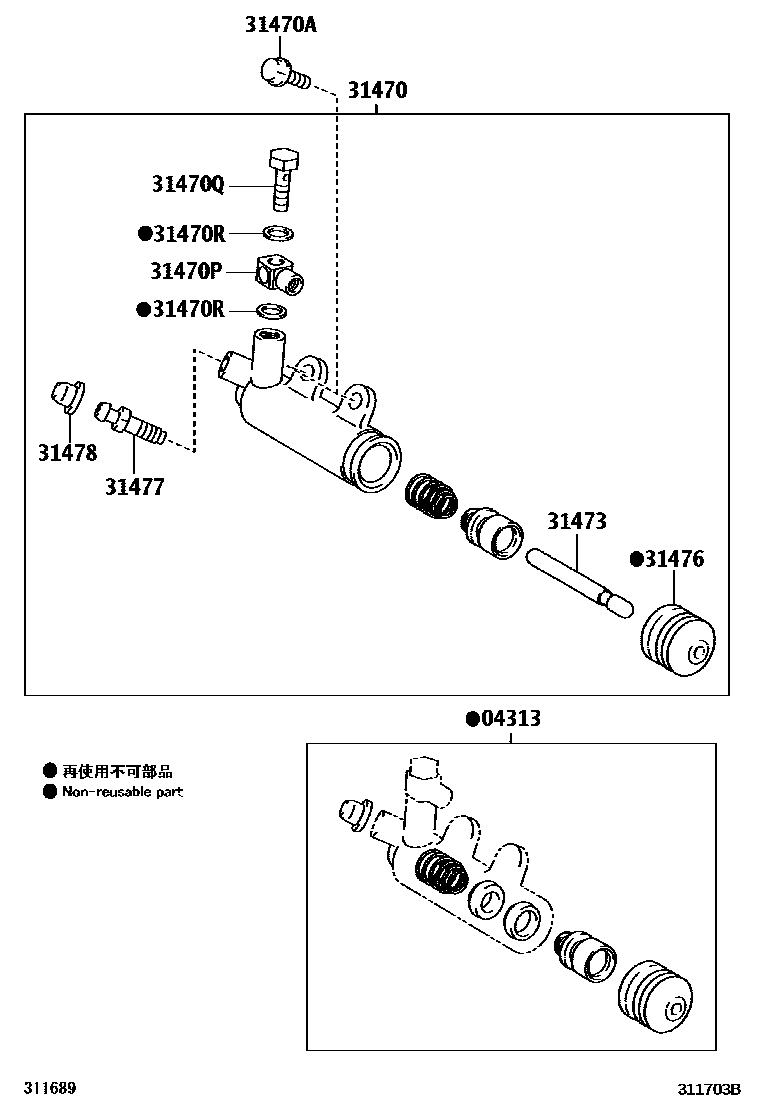

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-35060iNZE141..5F200609-200810

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12200iNZE141..5F200609-201204

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iNZE141..5F200609-201204

31470PUNION(FOR CLUTCH RELEASE)

main90405-10073iNZE141..5F200609-200810

31470QBOLT, UNION(FOR CLUTCH RELEASE)

main90401-10056iNZE141..5F200609-200810

31470RGASKET(FOR CLUTCH RELEASE)

main90029-43002iNZE141..5F200609-200810

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-35050iNZE141..5F200609-200810

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iNZE141..5F200609-200810

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iNZE141..5F200609-200810

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNZE141..5F200609-200810

10 parts on this diagram · 1 diagram in section
