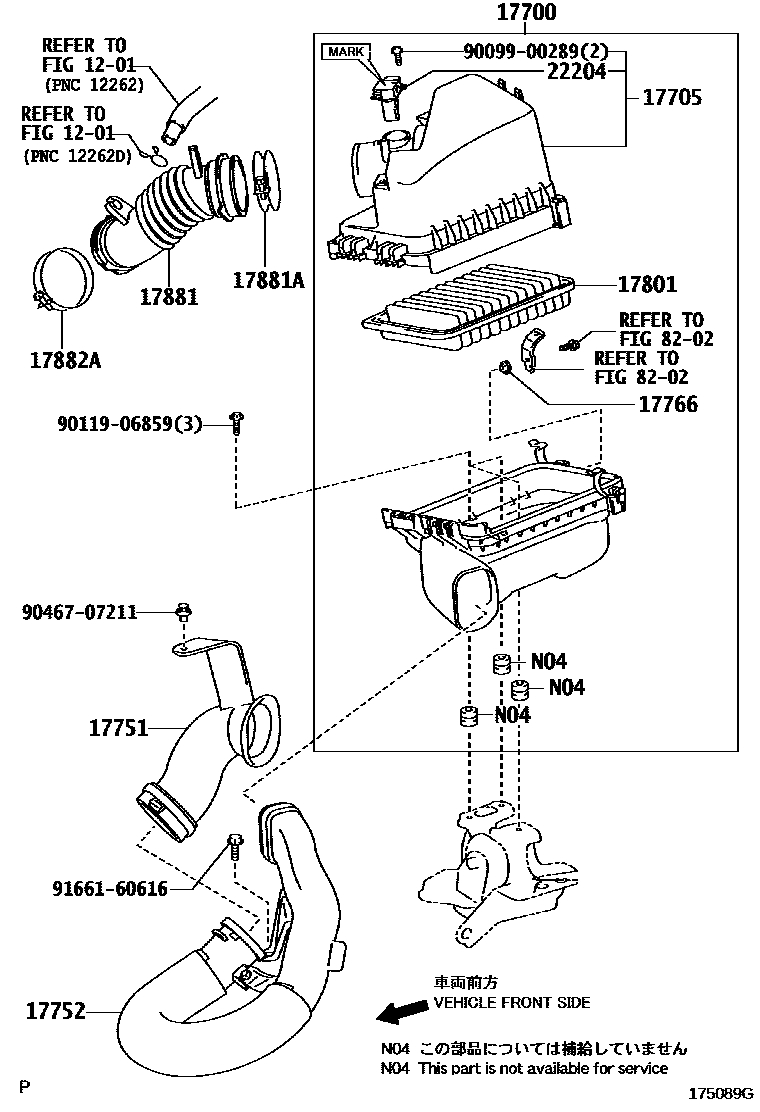

AIR CLEANER

0001 1 0002 1

1201

17700CLEANER ASSY, AIR

main17700-21180i1NZFE..NZE14#200609-200701

sub17700-21181

main17700-21181i1NZFE..NZE14#200702-200810

main17700-37190i2ZRFE..ZRE14#200609-200701

sub17700-37191

main17700-37191i2ZRFE..ZRE14#200702-201005

main17700-37211i2ZRFAE..ZRE14#201005

17705CAP SUB-ASSY, AIR CLEANER

main17705-21160i1NZFE..NZE14#200609-200701

sub17705-21161

main17705-21161i1NZFE..NZE14#200702-201103

sub17705-21162

main17705-21162i1NZFE..NZE14#201104

main17705-37060i2ZRFE..ZRE14#200609-200701

sub17705-37061

main17705-37061i2ZRFE..ZRE14#200702-201005

sub17705-37062

main17705-37081i2ZRFAE..ZRE14#201005-201103

sub17705-37082

main17705-37082i2ZRFAE..ZRE14#201104

17751INLET, AIR CLEANER, NO.1

main17751-21190i1NZFE..NZE14#200609-200810

main17751-37060i2ZR#..ZRE14#200609-200810

17752INLET, AIR CLEANER, NO.2

main17752-21070i1NZFE..NZE14#200609-200810

main17752-37040i2ZR#..ZRE14#200609-200810

17766STAY, AIR CLEANER, NO.2

main17706-21010i1NZFE..NZE14#200904

main17706-22010i1NZFE..NZE14#200609-200904

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21050i1NZFE..NZE14#200609-200810

17881HOSE, AIR CLEANER, NO.1

main17880-21110i1NZFE..NZE14#200609-200810

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i1NZFE..NZE14#200609-200810

main96111-10830i2ZRFE..ZRE14#200609-201005

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10650i1NZFE..NZE14#200609-200810

main96111-10780i2ZRFE..ZRE14#200609-200810

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0H010i1NZFE..NZE14#201104

main22204-0P010i1NZFE..NZE14#201104

main22204-0T010i1NZFE..NZE14#201104

main22204-0T040i2ZRFAE..ZRE14#201104

sub22204-28010

main22204-0V010i2ZRFAE..ZRE14#201104

main22204-0V020i2ZRFAE..ZRE14#201104

main22204-28010i2ZRFAE..ZRE14#201104

main22204-31010i1NZFE..NZE14#200609-200701

sub22204-31020

main22204-31020i1NZFE..NZE14#201104

main22204-31020i1NZFE..NZE14#200702-201104

main22204-37010i2ZRFAE..ZRE14#201005-201104

sub22204-28010

8202

9009900289

main90099-00289

9011906859

main90119-06859

9046707211

main90467-07211

9166160616

main91661-60616

16 parts on this diagram · 2 diagrams in section
