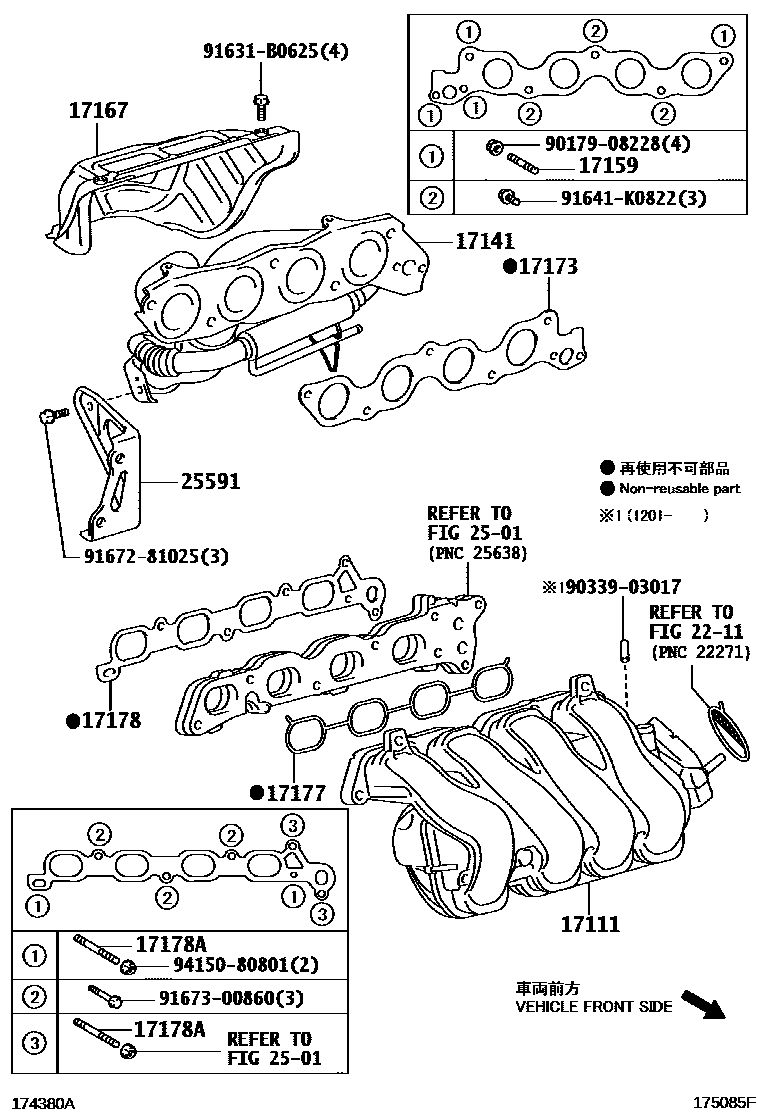

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17111MANIFOLD, INTAKE

main17101-21070i1NZFE..NZE14#200609-201204

sub17101-21071

sub90339-03017

main17120-37011i2ZRFAE..ZRE14#201005-201204

main17120-37020i2ZRFE..ZRE14#200609-200805

sub17120-37021

main17120-37021i2ZRFE..ZRE14#200805-200909

main17120-37022i2ZRFE..ZRE14#200909-201005

17141MANIFOLD, EXHAUST

main17104-21040i1NZFE..NZE141200609-200904

sub17104-21041

main17104-21041i1NZFE..NZE141200904

main17141-37050i2ZRFE..ZRE142200609-200612

main17141-37051i2ZRFE..ZRE142200612-200810

main17141-37070i2ZRFE..ZRE144200609-201005

main17141-37120i2ZRFAE..ZRE144201005

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026i2ZRFE..ZRE14#200609-200810

main90126-08037i1NZFE..NZE14#200609-200810

main90126-08052i2ZRFE..ZRE14#200609-200810

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-21070i1NZFE..NZE144200609-200810

main17167-21110i1NZFE..NZE141200609-200810

main17167-37010i2ZRFE..ZRE142200609-200611

sub17167-37011

main17167-37011i2ZRFE..ZRE142200611-200810

main17167-37030i2ZRFE..ZRE144200609-200903

sub17167-37H00

main17167-37031i2ZR#..ZRE144200903

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-21030i1NZFE..NZE14#200609-200810

main17173-37010i2ZRFE..ZRE14#200609-200810

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-21030i1NZFE..NZE14#200609-201204

main17177-37030i2ZRFE..ZRE14#200609-200810

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-21010i1NZFE..NZE14#200609-200810

17178ASTUD, HEX LOBULAR(INTAKE MANIFOLD TO HEAD GASKET)

main90126-08049i1NZFE..NZE14#200609-200810

2211

2501

25591BRACKET, MANIFOLD SUPPORT

main25591-21030i1NZFE..NZE144200609-200810

main25591-21060i1NZFE..NZE141200609-200810

9017908228

main90179-08228

9033903017

main90339-03017

91631B0625

main91631-B0625

91641K0822

main91641-K0822

9167281025

main91672-81025

9167300860

main91673-00860

9415080801

main94150-80801

18 parts on this diagram · 6 diagrams in section
